Schneider ElectricThermal Overload Relays

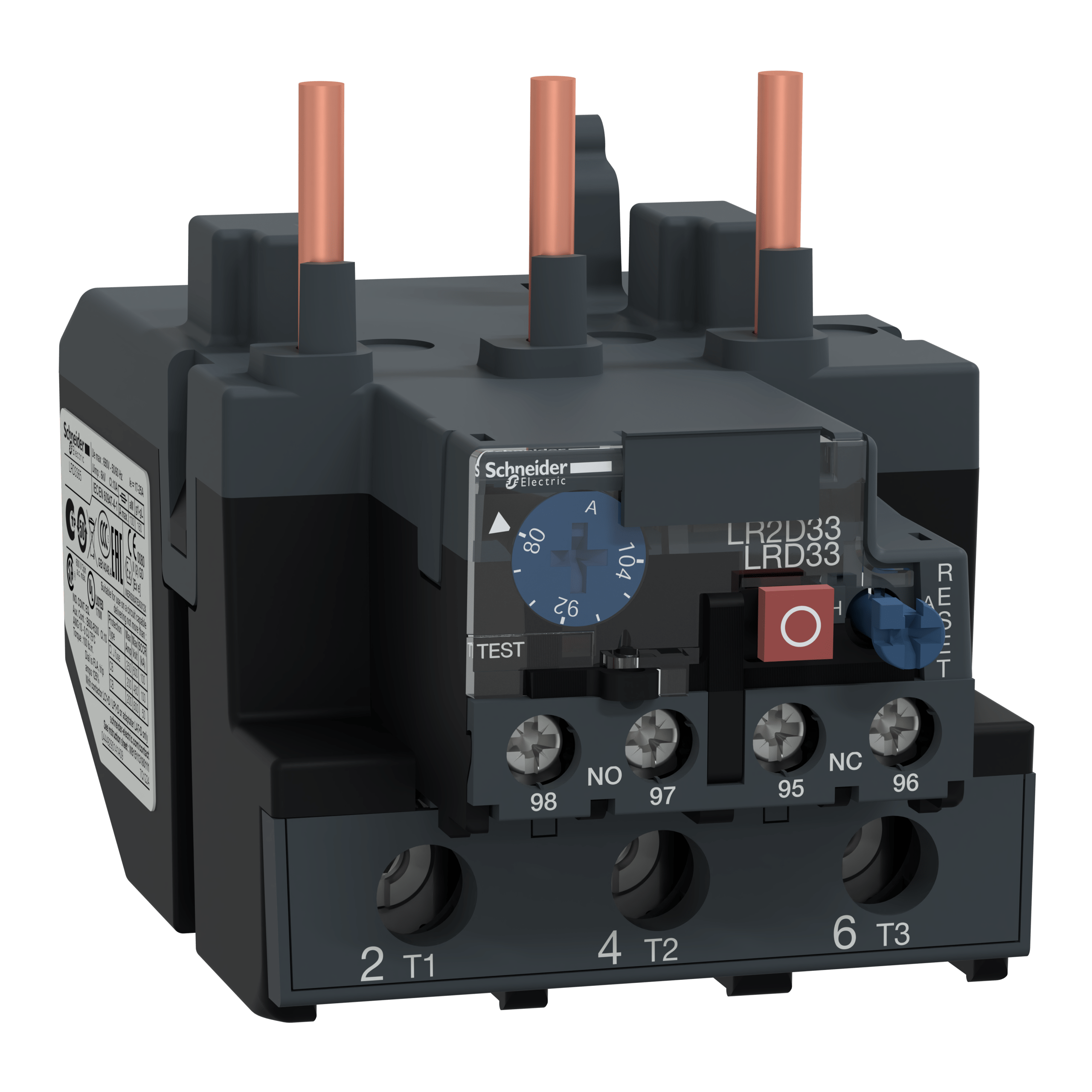

LRD3365 – TeSys LRD thermal overload relays – 80…104 A – class 10A
Order code
Original price was: R2 711.00.R1 843.48Current price is: R1 843.48.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TeSys LRD thermal overload relays – 80…104 A – class 10A — Schneider Electric order code LRD3365. Rated current 104 A; rated voltage 1000 V; DIN rail mounting.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LRD3365 — TeSys LRD thermal overload relays – 80…104 A – class 10A from the Schneider Electric TeSys LR.D range.
TeSys LRD thermal overload relay, 104A/1000V, thermal setting range 80-104A, tripping class 10A, for protection of 3-phase motors 45kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Key specifications: rated current 104 A; rated voltage 1000 V; DIN rail mounting.
Ordering information
- Order code:
LRD3365 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys LR.D
- GTIN / EAN: 3389110520064
- Supplied: each
- Weight: 0.549 kg
- ETIM class: EC000106
- Datasheet: manufacturer datasheet for LRD3365
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LRD3365 – TeSys LRD thermal overload relays – 80…104 A – class 10A Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys LR.D |
| GTIN / EAN | Filter products by 3389110520064 |
| Range | Filter products by TeSys LR.D |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000106 |
Electrical ratings
| Rated current (Iu) | Filter products by 104 A |
|---|---|
| Rated voltage (Ue) | Filter products by 1000 V |
| Rated operational voltage | Filter products by 1000 V |
| Operating Voltage | Filter products by 1000V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Thermal Overload Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LRD3365 |
| Iternational GTIN | Filter products by 3389110520064 |
| Mount Type | Filter products by DIN Rail |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.
LRD4367LRD4367 – TeSys LRD thermal overload relays – 95…120 A – class 10A Original price was: R4 845.00.R3 294.60Current price is: R3 294.60.View product
LRD4369TeSys LRD thermal overload relays – 110…140 A – class 10A Original price was: R5 330.00.R3 624.40Current price is: R3 624.40.View product
LRD33696TeSys LRD thermal overload relays – 110…140 A – class 10AR4 402.61View product
More in the TeSys LR.D range
Same series, same mounting and the same documentation set.

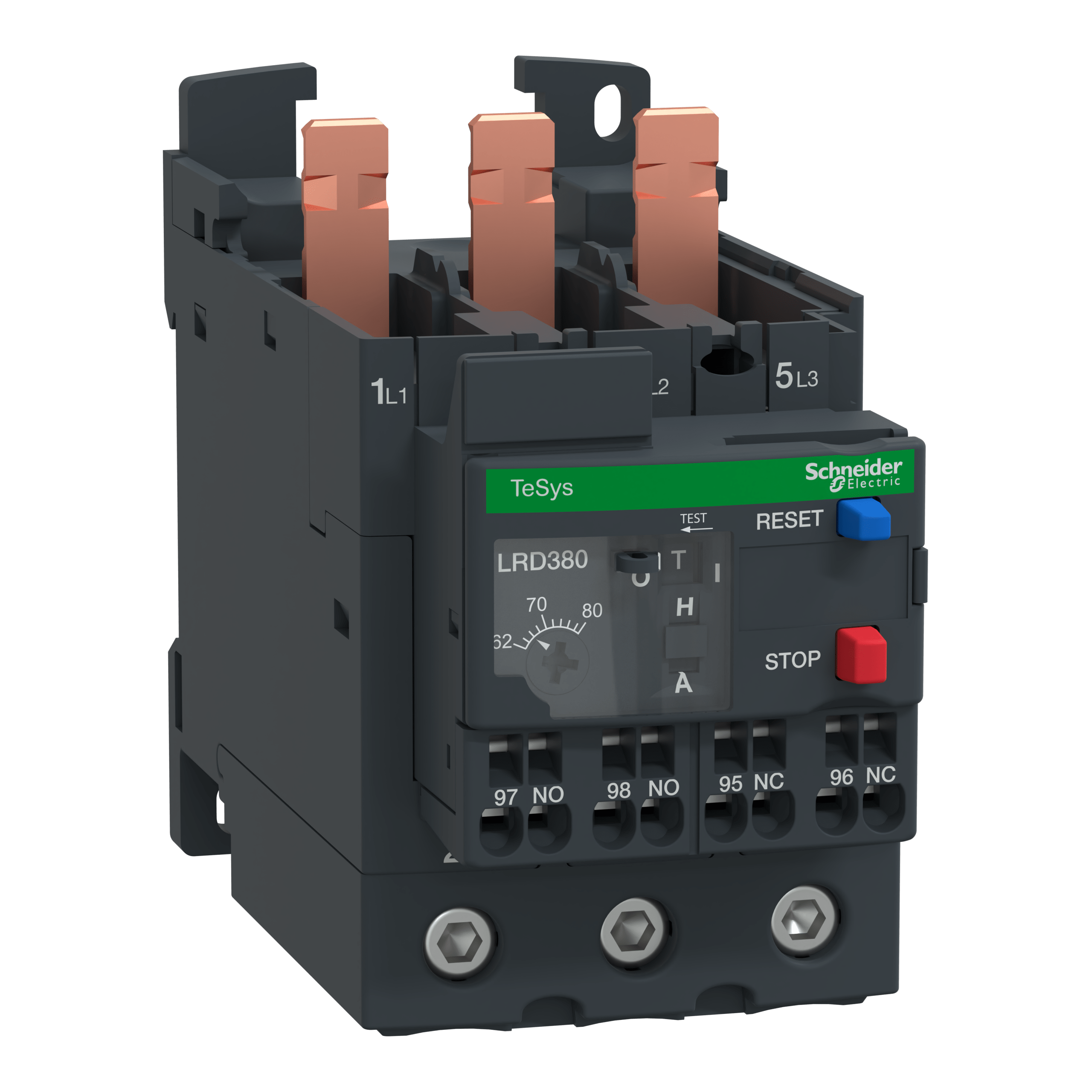

LRD3803TeSys LRD differential thermal overload relay 62-80A class10A EverLink+springsR2 955.88View product
LRD06LTeSys LRD thermal overload relays – 1…1.6 A – class 20R1 249.70View product
LRD4365TeSys LRD thermal overload relays – 80…104 A – class 10A Original price was: R4 651.00.R3 162.68Current price is: R3 162.68.View product
LRD365LTeSys LRD thermal overload relays – 48…65 A – class 20 Original price was: R2 756.00.R1 874.08Current price is: R1 874.08.View product
LRD365TeSys LRD thermal overload relays – 48…65 A – class 10A Original price was: R1 935.00.R1 315.80Current price is: R1 315.80.View product
LRD350LTeSys LRD thermal overload relays – 37…50 A – class 20 Original price was: R3 062.00.R2 082.16Current price is: R2 082.16.View product
LRD350TeSys LRD thermal overload relays – 37…50 A – class 10A Original price was: R1 935.00.R1 315.80Current price is: R1 315.80.View product

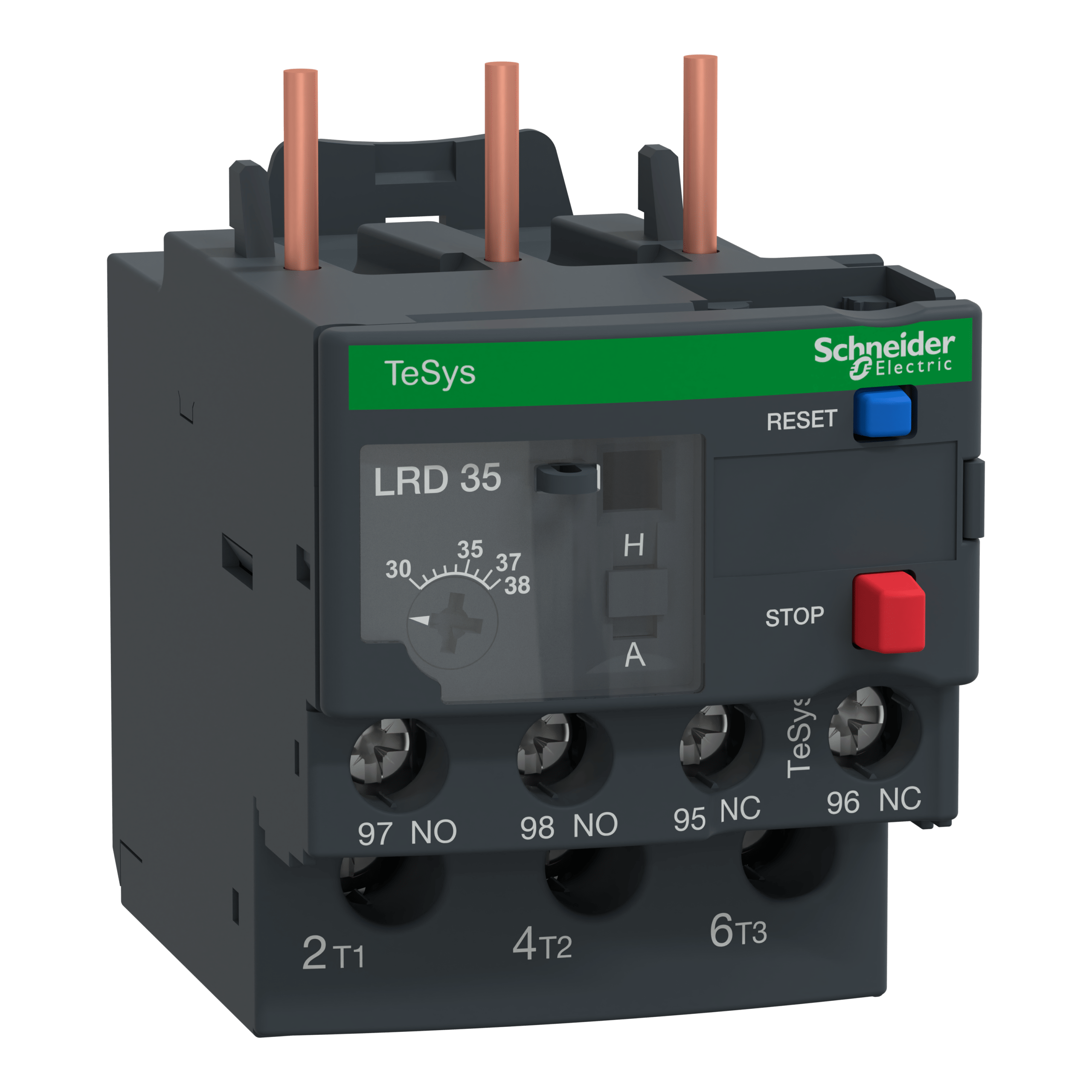

LRD35TeSys LRD thermal overload relays – 30…38 A – class 10A Original price was: R978.00.R665.04Current price is: R665.04.View product
Similar items

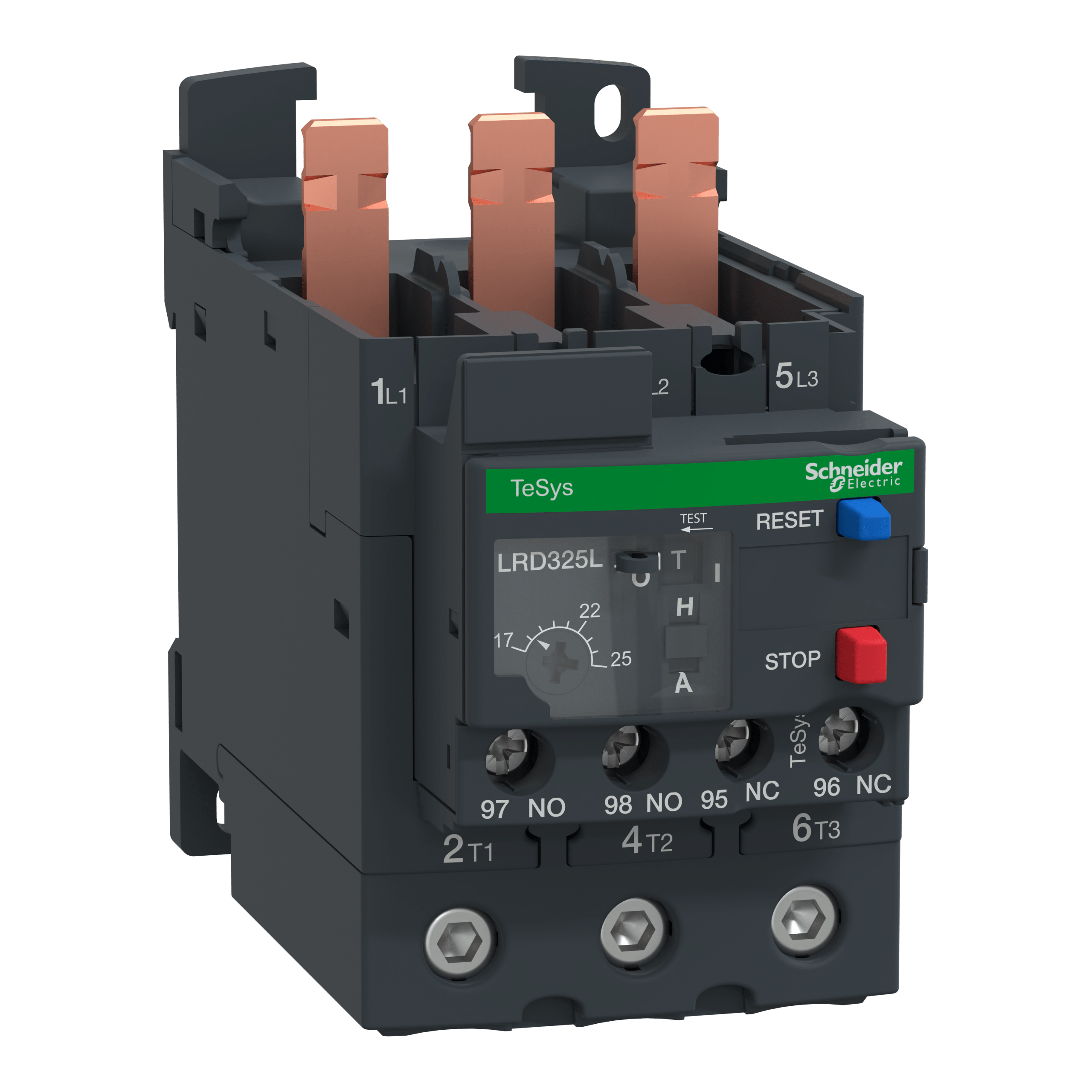

LRD325LTeSys LRD thermal overload relays – 17…25 A – class 20 Original price was: R2 891.00.R1 965.88Current price is: R1 965.88.View product
LRD3353A66TeSys LRD thermal overload relays – 23…32 A – class 10A – 1000V Original price was: R2 905.00.R1 975.40Current price is: R1 975.40.View product
LRD332LTeSys LRD thermal overload relays – 23…32 A – class 20 Original price was: R2 431.00.R1 653.08Current price is: R1 653.08.View product
LRD3363TeSys LRD thermal overload relays – 63…80 A – class 10A Original price was: R2 420.00.R1 645.60Current price is: R1 645.60.View product
LRD1521TeSys LRD thermal overload relays – 12…18 A – class 20 Original price was: R2 343.00.R1 593.24Current price is: R1 593.24.View product
LR9D08TeSys LRD – electronic thermal overload relay – 3P – 1.6…8 A Schneider ElectricR1 587.48View product
More in Thermal Overload Relays
LR9G500Electronic thermal overload relay, TeSys Giga, 125…500 A, class 5E…30E, push-in control connection Original price was: R8 379.00.R5 697.72Current price is: R5 697.72.View product

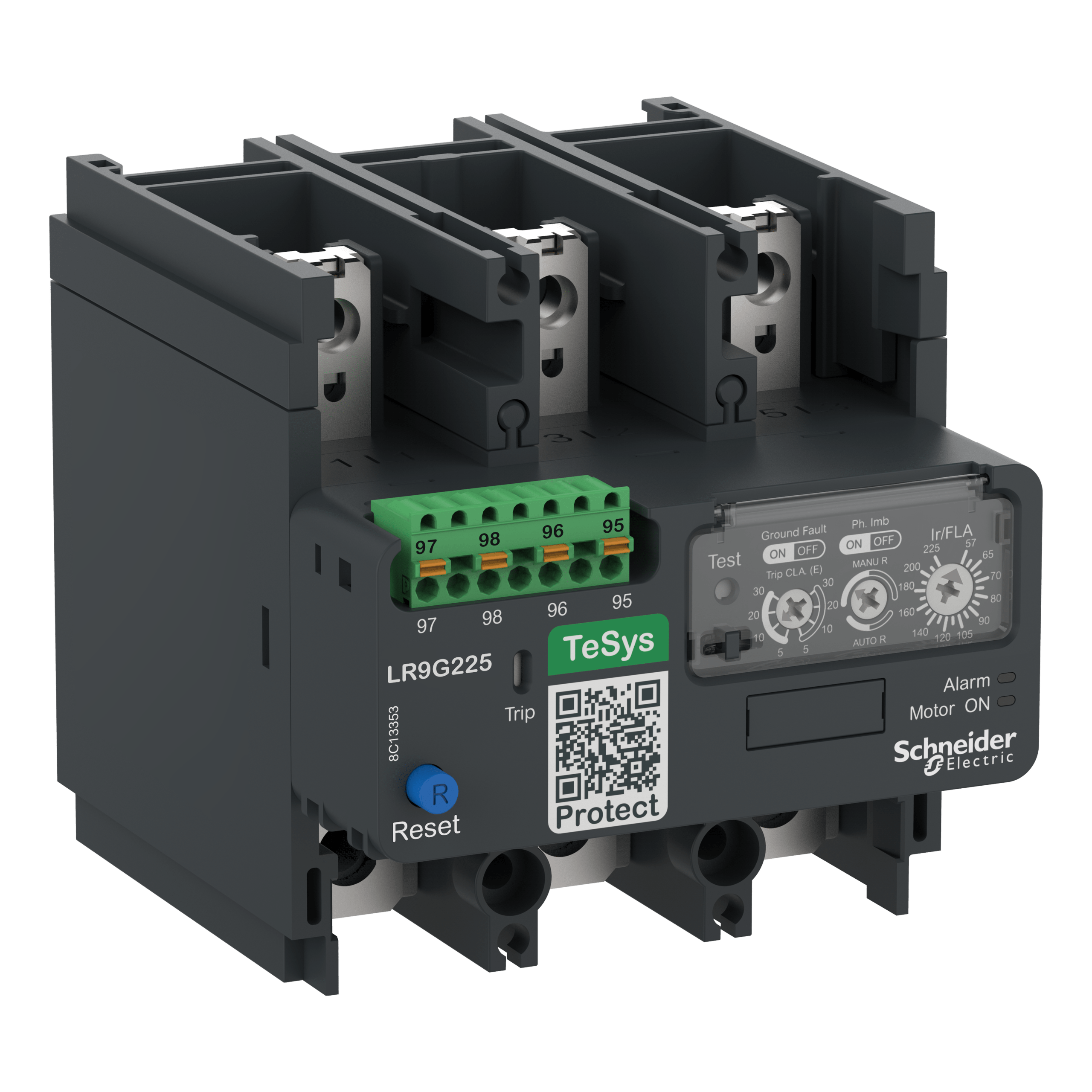

LR9G225Electronic thermal overload relay, TeSys Giga, 57…225 A, class 5E…30E, push-in control connection Original price was: R5 080.00.R3 454.40Current price is: R3 454.40.View product- LR9G115Electronic thermal overload relay, TeSys Giga, 28…115 A, class 5E…30E, push-in control connection Original price was: R4 232.00.R2 877.76Current price is: R2 877.76.View product
