Schneider ElectricThermal Overload Relays
LRD3363 – TeSys LRD thermal overload relays – 63…80 A – class 10A | Schneider Electric
Order code
List R2 420.00 Your price R1 645.60
Per unit · volume pricing available on request
excl. VAT R1 892.44 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys LRD thermal overload relays – 63…80 A – class 10A — Schneider Electric order code LRD3363. Rated current 80 A; rated voltage 1000 V; DIN rail mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Rating80 A24 options
Rated voltage1000 V2 options
- 690 V
- 1000 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LRD3363 — TeSys LRD thermal overload relays – 63…80 A – class 10A from the Schneider Electric TeSys LR.D range. Listed under Thermal Overload Relays on the Schneider Electric catalogue at RMS-SE.Africa.
About LRD3363

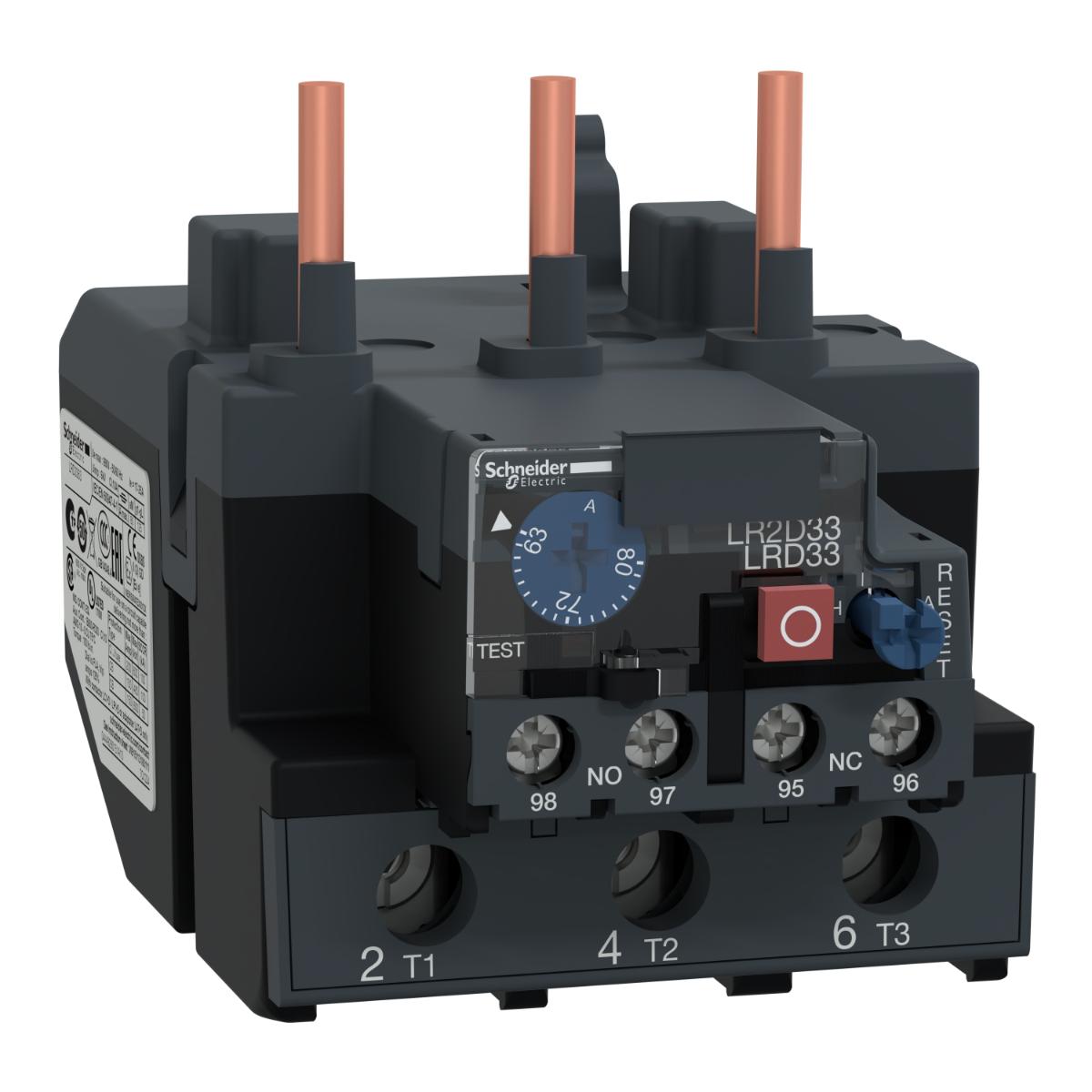

TeSys LRD thermal overload relay, 80A/1000V, thermal setting range 63-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
LRD3363 key specifications
Key specifications: rated current 80 A; rated voltage 1000 V; DIN rail mounting.
Ordering information for LRD3363
- Order code:
LRD3363 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys LR.D
- GTIN / EAN: 3389110520002
- Supplied: each
- Weight: 0.512 kg
- ETIM class: EC000106
- Datasheet: manufacturer datasheet for LRD3363
About the TeSys LR.D range
TeSys LR.D is a Schneider Electric range with 64 references listed on RMS-SE.Africa, from 1 A to 150 A. It spans Thermal Overload Relays, Contactors.
LRD3363 — frequently asked questions
What is the rated current of LRD3363?
LRD3363 is rated 80 A.
Where is the datasheet for LRD3363?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LRD3363 a genuine Schneider Electric product?
Yes. LRD3363 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LRD3363 – TeSys LRD thermal overload relays – 63…80 A – class 10A Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys LR.D |
| GTIN / EAN | 3389110520002 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000106 |
Electrical ratings
| Rated current (Iu) | Filter products by 80 A |
|---|---|
| Rated voltage (Ue) | Filter products by 1000 V |
| Operating Voltage | Filter products by 1000V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 37 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Thermal Overload Relays |
| SKU/Code/Partnumber | LRD3363 |
| Iternational GTIN | 3389110520002 |
