Schneider ElectricThermal Overload Relays
LRD10 – LRD10 – TeSys LRD thermal overload relays – 4…6 A – class 10A
Order code
Original price was: R859.00.R584.12Current price is: R584.12.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
LRD10 – TeSys LRD thermal overload relays – 4…6 A – class 10A — Schneider Electric order code LRD10. Rated current 6 A; rated voltage 690 V; DIN rail mounting.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LRD10 — LRD10 – TeSys LRD thermal overload relays – 4…6 A – class 10A from the Schneider Electric TeSys LR.D range.
TeSys LRD thermal overload relay, 6A/690V, thermal setting range 4-6A, tripping class 10A, for protection of 3-phase motors 2.2kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Key specifications: rated current 6 A; rated voltage 690 V; DIN rail mounting.
Ordering information
- Order code:
LRD10 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys LR.D
- GTIN / EAN: 3389110346794
- Supplied: each
- Weight: 0.138 kg
- ETIM class: EC000106
- Datasheet: manufacturer datasheet for LRD10
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LRD10 – LRD10 – TeSys LRD thermal overload relays – 4…6 A – class 10A Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys LR.D |
| GTIN / EAN | Filter products by 3389110346794 |
| Range | Filter products by TeSys LR.D |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000106 |
Electrical ratings
| Rated current (Iu) | Filter products by 6 A |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Rated operational voltage | Filter products by 690 V |
| Operating Voltage | Filter products by 690V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Thermal Overload Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LRD10 |
| Iternational GTIN | Filter products by 3389110346794 |
| Mount Type | Filter products by DIN Rail |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.
LRD3312TeSys LRD thermal overload relays – 5.5…8 A – class 10A Original price was: R1 632.00.R1 109.76Current price is: R1 109.76.View product
LRD1512TeSys LRD thermal overload relays – 5.5…8 A – class 20R2 926.28View product
LRD1514TeSys LRD thermal overload relays – 7…10 A – class 20 Original price was: R2 012.00.R1 368.16Current price is: R1 368.16.View product

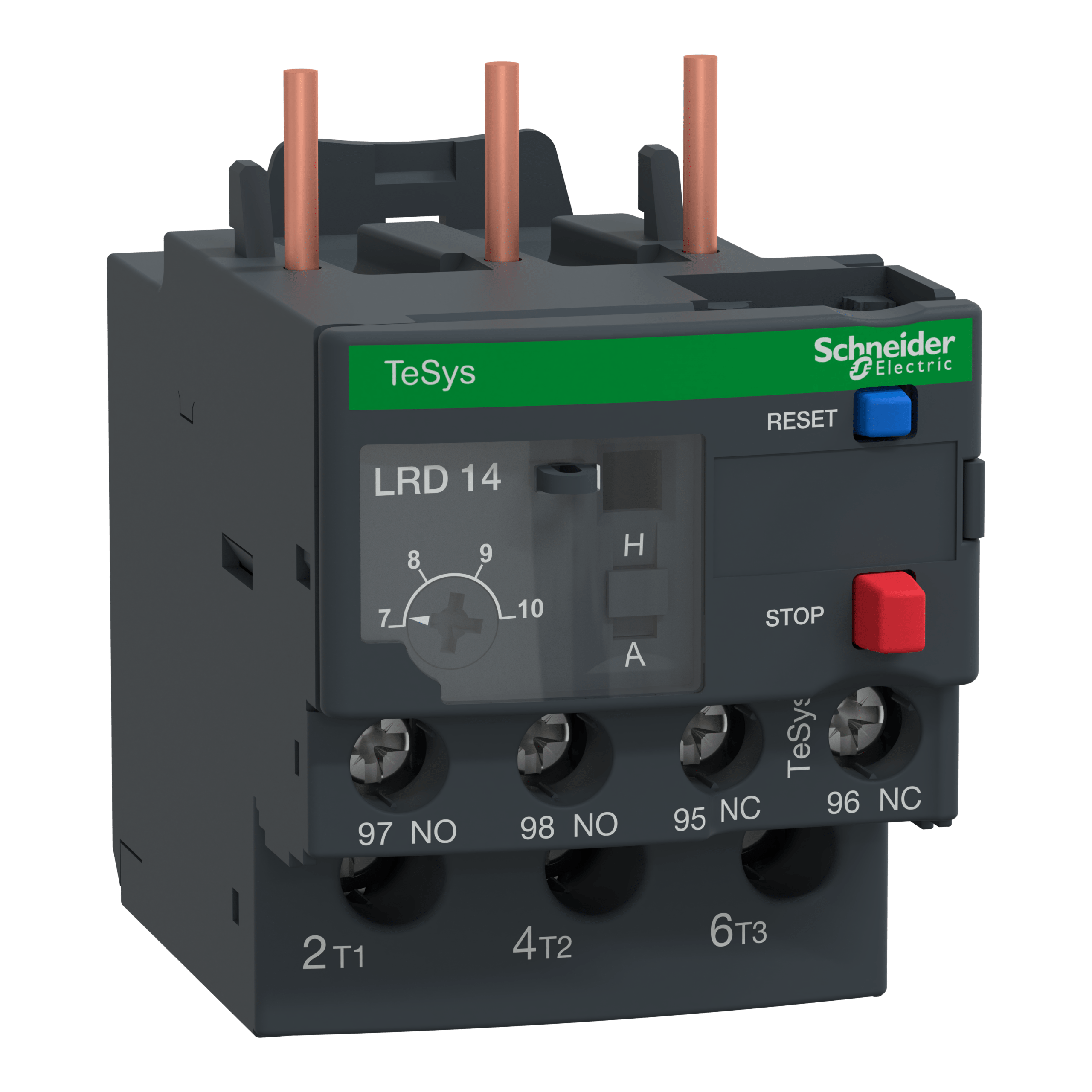

LRD14TeSys LRD thermal overload relays – 7…10 A – class 10A Original price was: R859.00.R584.12Current price is: R584.12.View product

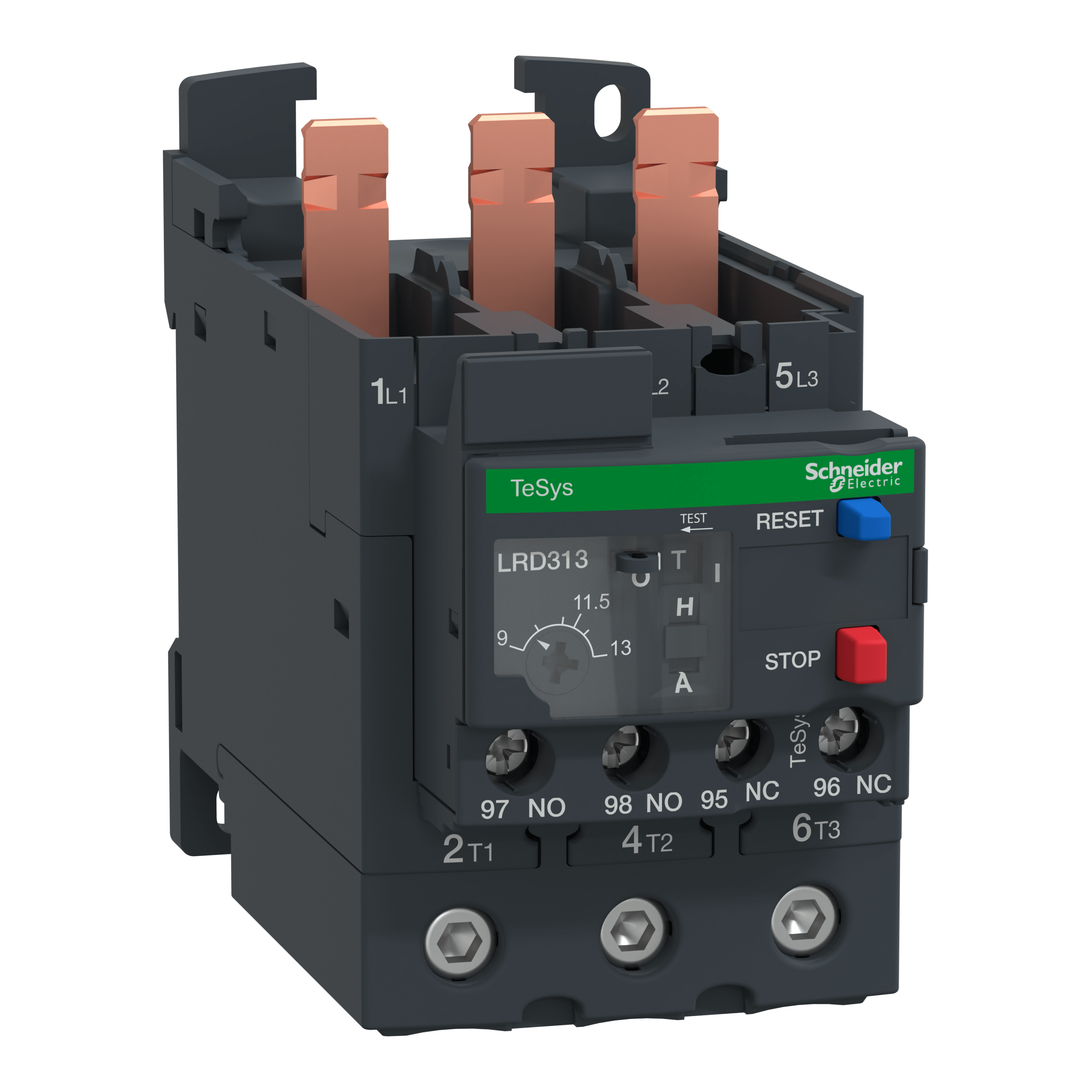

LRD313TeSys LRD thermal overload relays – 9…13 A – class 10A Original price was: R1 363.00.R926.84Current price is: R926.84.View product
