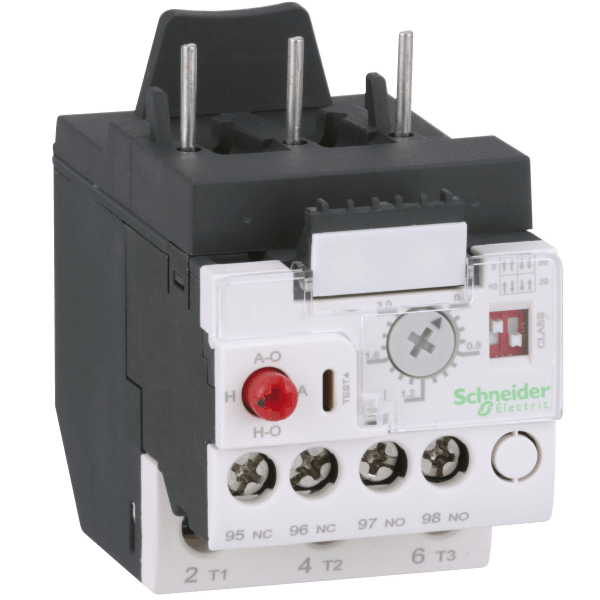

LR9D02 – TeSys LRD – electronic thermal overload relay – 3P – 0.4…2 A Schneider Electric
Order code
Original price was: R1 199.00.R815.32Current price is: R815.32.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – TeSys LRD – electronic thermal overload relay – 3P – 0.4…2 A – TeSys LR9 | LR9D02
Accessories & add-ons 8
- Harmony, Solid state modular relay, 25 A, DIN rail mount, random switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM3A325BDRR8 063.05Add
- Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM3A325BDR7 928.98Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM1A312BD Original price was: R713.00.R484.84Current price is: R484.84.Add
- Harmony, Solid state modular relay, 6 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM1A36BDR1 267.93Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 200…265 V AC, output 24…280 V AC Schneider ElectricSSM1A112P7 Original price was: R985.00.R669.80Current price is: R669.80.Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 24…280 V AC Schneider ElectricSSM1A112BDR781.77Add
- Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 24 V DC Schneider ElectricRXM4LB2BD Original price was: R115.00.R78.20Current price is: R78.20.Add
- Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 120 V AC Schneider ElectricRXM4LB2F7R130.83Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LR9D02 – TeSys LRD – electronic thermal overload relay – 3P – 0.4…2 A Schneider Electric TeSys LR9D electronic overload relay, 2A/690V, thermal setting range 0.4-2A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 0.12-0.75kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHs/Reach). TeSys LRD – electronic thermal overload relay – 3P – 0.4…2 A LR9D02 – TeSys LR9
LR9D02 – TeSys LRD – electronic thermal overload relay – 3P – 0.4…2 A Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the TeSys range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: TeSys
- Amperage: 2 A
- Voltage: 690V
- Poles: 3P
- Mount Type: DIN Rail
Key Features
- Part of the TeSys range
- Rated at 2 A
- Suitable for 690V applications
- 3P configuration
- DIN Rail installation format
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Timers & Control Relays | Plug – in Relays | Thermal Overload Relays
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LR9D02 – TeSys LRD – electronic thermal overload relay – 3P – 0.4…2 A Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 2 A |
| Rated voltage (Ue) | Filter products by 690V |
| Rated operational voltage | Filter products by 690V |
| Operating Voltage | Filter products by 690V |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Thermal Overload Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LR9D02 |
| Iternational GTIN | Filter products by 3606485420936 |
| Mount Type | Filter products by DIN Rail |
