LT4760M7S – TeSys LT47 electronic over current relays – manual – 5…60 A – 200…240 V AC | Schneider Electric
Order code
List R1 700.00 Your price R1 156.00
Per unit · volume pricing available on request
excl. VAT R1 329.40 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys LT47 electronic over current relays – manual – 5…60 A – 200…240 V AC — Schneider Electric order code LT4760M7S. Rated current 60 A; rated voltage 240 V; DIN rail mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LT4760M7S — TeSys LT47 electronic over current relays – manual – 5…60 A – 200…240 V AC by Schneider Electric. Listed under Thermal Overload Relays on the Schneider Electric catalogue at RMS-SE.Africa.
About LT4760M7S

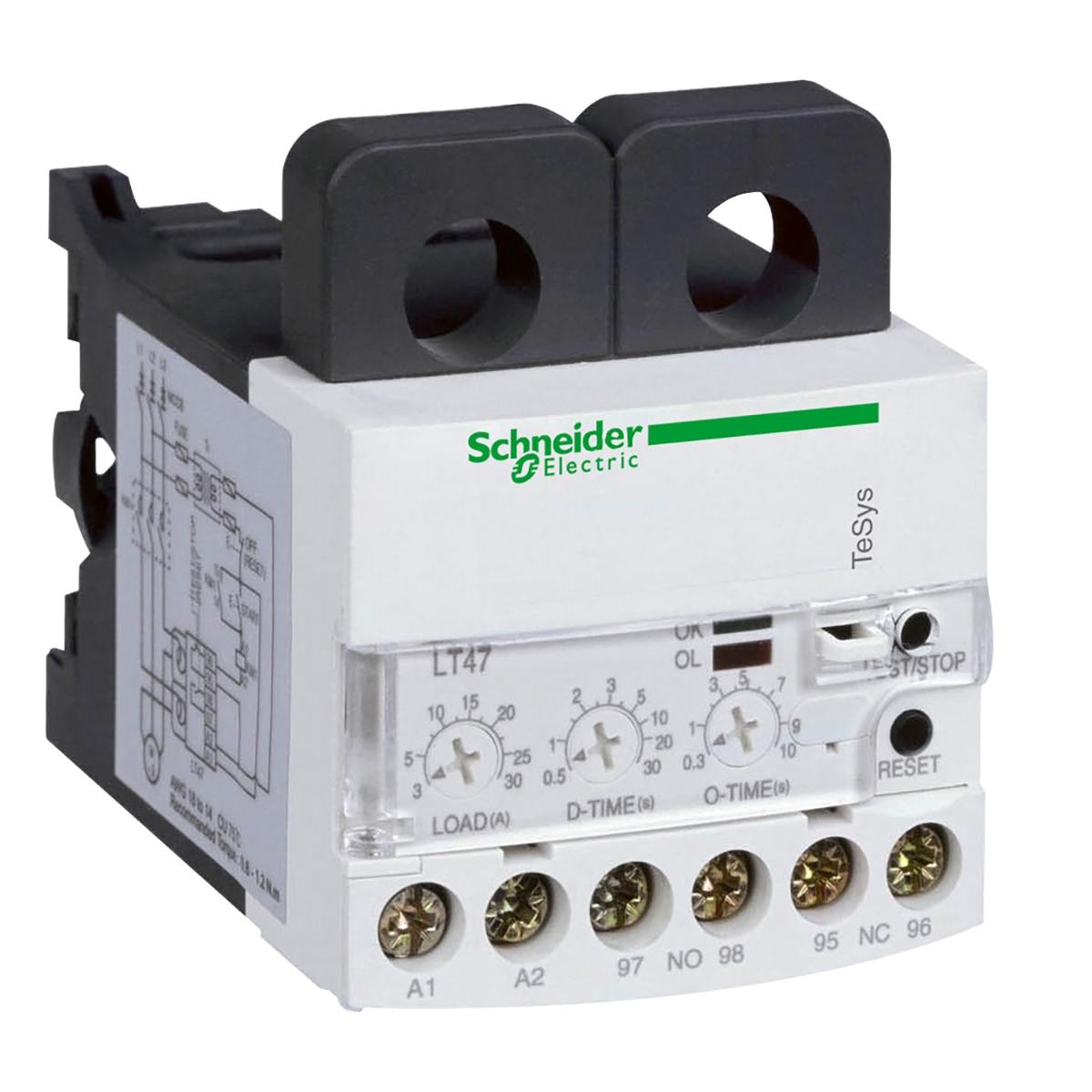

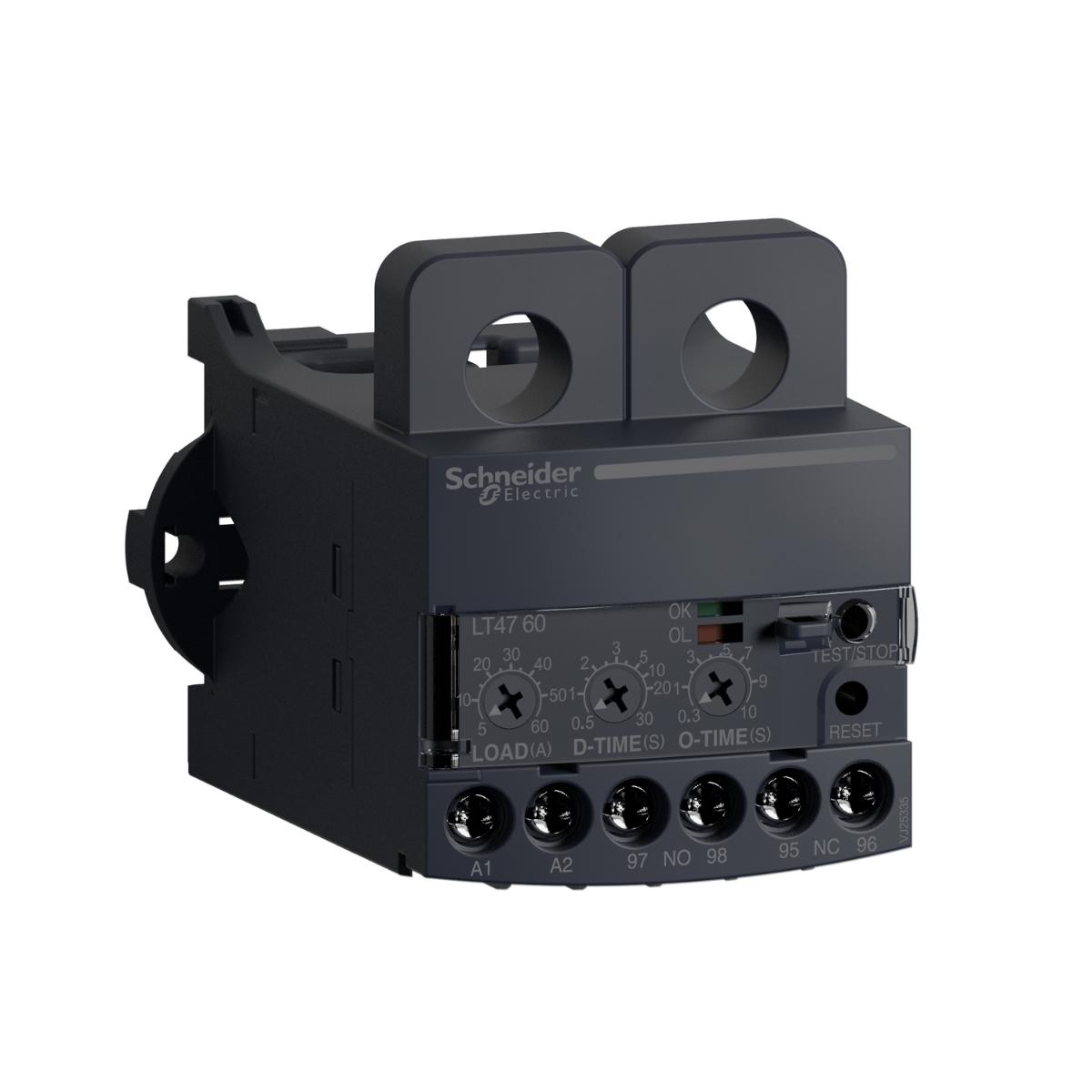

TeSys LR47 electronic overcurrent relay, 60A/690V, with manual reset, to be supplied with 200-240V AC, for protection of motors with a rated current 5-50A. It provides 3 dials to adjust the protection, LOAD (5-60A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when there is a missing phase during more than O-TIME. The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signalling. Settings can be locked by sealing the transparent cover. DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables). Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.
LT4760M7S key specifications
Key specifications: rated current 60 A; rated voltage 240 V; DIN rail mounting.
Ordering information for LT4760M7S
- Order code:
LT4760M7S - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys LT47
- GTIN / EAN: 3389110577044
- Supplied: each
- Weight: 0.201 kg
- ETIM class: EC001080
- Datasheet: manufacturer datasheet for LT4760M7S
About the TeSys LT47 range
TeSys LT47 is a Schneider Electric range with 7 references listed on RMS-SE.Africa, from 6 A to 60 A.
LT4760M7S — frequently asked questions
What is the rated current of LT4760M7S?
LT4760M7S is rated 60 A.
Where is the datasheet for LT4760M7S?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LT4760M7S a genuine Schneider Electric product?
Yes. LT4760M7S is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LT4760M7S – TeSys LT47 electronic over current relays – manual – 5…60 A – 200…240 V AC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys LT47 |
| GTIN / EAN | 3389110577044 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001080 |
Electrical ratings
| Rated current (Iu) | Filter products by 60 A |
|---|---|
| Rated voltage (Ue) | Filter products by 240 V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Thermal Overload Relays |
|---|---|
| SKU/Code/Partnumber | LT4760M7S |
| Iternational GTIN | 3389110577044 |
