Schneider ElectricThermal Overload Relays
LRD3803 – TeSys LRD differential thermal overload relay 62-80A class10A EverLink+springs
Order code
R2 955.88
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TeSys LRD differential thermal overload relay 62-80A class10A EverLink+springs — Schneider Electric order code LRD3803. Rated current 80 A; rated voltage 690 V; DIN rail mounting.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LRD3803 — TeSys LRD differential thermal overload relay 62-80A class10A EverLink+springs from the Schneider Electric TeSys LR.D range.
TeSys LRD thermal overload relay, 80A/690V, thermal setting range 62-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
Key specifications: rated current 80 A; rated voltage 690 V; DIN rail mounting.
Ordering information
- Order code:
LRD3803 - Manufacturer: Schneider Electric
- Range: TeSys LR.D
- GTIN / EAN: 3606481311993
- Supplied: each
- Weight: 0.425 kg
- ETIM class: EC000106
- Datasheet: manufacturer datasheet for LRD3803
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 80 A |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Rated operational voltage | Filter products by 690 V |
| Operating Voltage | Filter products by 690V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Thermal Overload Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LRD3803 |
| Iternational GTIN | Filter products by 3606481311993 |
| Mount Type | Filter products by DIN Rail |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.
LRD4365TeSys LRD thermal overload relays – 80…104 A – class 10A Original price was: R4 651.00.R3 162.68Current price is: R3 162.68.View product
LRD3365TeSys LRD thermal overload relays – 80…104 A – class 10A Original price was: R2 711.00.R1 843.48Current price is: R1 843.48.View product
LRD4367LRD4367 – TeSys LRD thermal overload relays – 95…120 A – class 10A Original price was: R4 845.00.R3 294.60Current price is: R3 294.60.View product
LRD4369TeSys LRD thermal overload relays – 110…140 A – class 10A Original price was: R5 330.00.R3 624.40Current price is: R3 624.40.View product
LRD33696TeSys LRD thermal overload relays – 110…140 A – class 10AR4 402.61View product
More in the TeSys LR.D range
Same series, same mounting and the same documentation set.
LRD06LTeSys LRD thermal overload relays – 1…1.6 A – class 20R1 249.70View product
LRD365LTeSys LRD thermal overload relays – 48…65 A – class 20 Original price was: R2 756.00.R1 874.08Current price is: R1 874.08.View product
LRD365TeSys LRD thermal overload relays – 48…65 A – class 10A Original price was: R1 935.00.R1 315.80Current price is: R1 315.80.View product
LRD350LTeSys LRD thermal overload relays – 37…50 A – class 20 Original price was: R3 062.00.R2 082.16Current price is: R2 082.16.View product
LRD350TeSys LRD thermal overload relays – 37…50 A – class 10A Original price was: R1 935.00.R1 315.80Current price is: R1 315.80.View product
LRD35TeSys LRD thermal overload relays – 30…38 A – class 10A Original price was: R978.00.R665.04Current price is: R665.04.View product
LRD340LTeSys LRD thermal overload relays – 30…40 A – class 20 Original price was: R4 240.00.R2 883.20Current price is: R2 883.20.View product

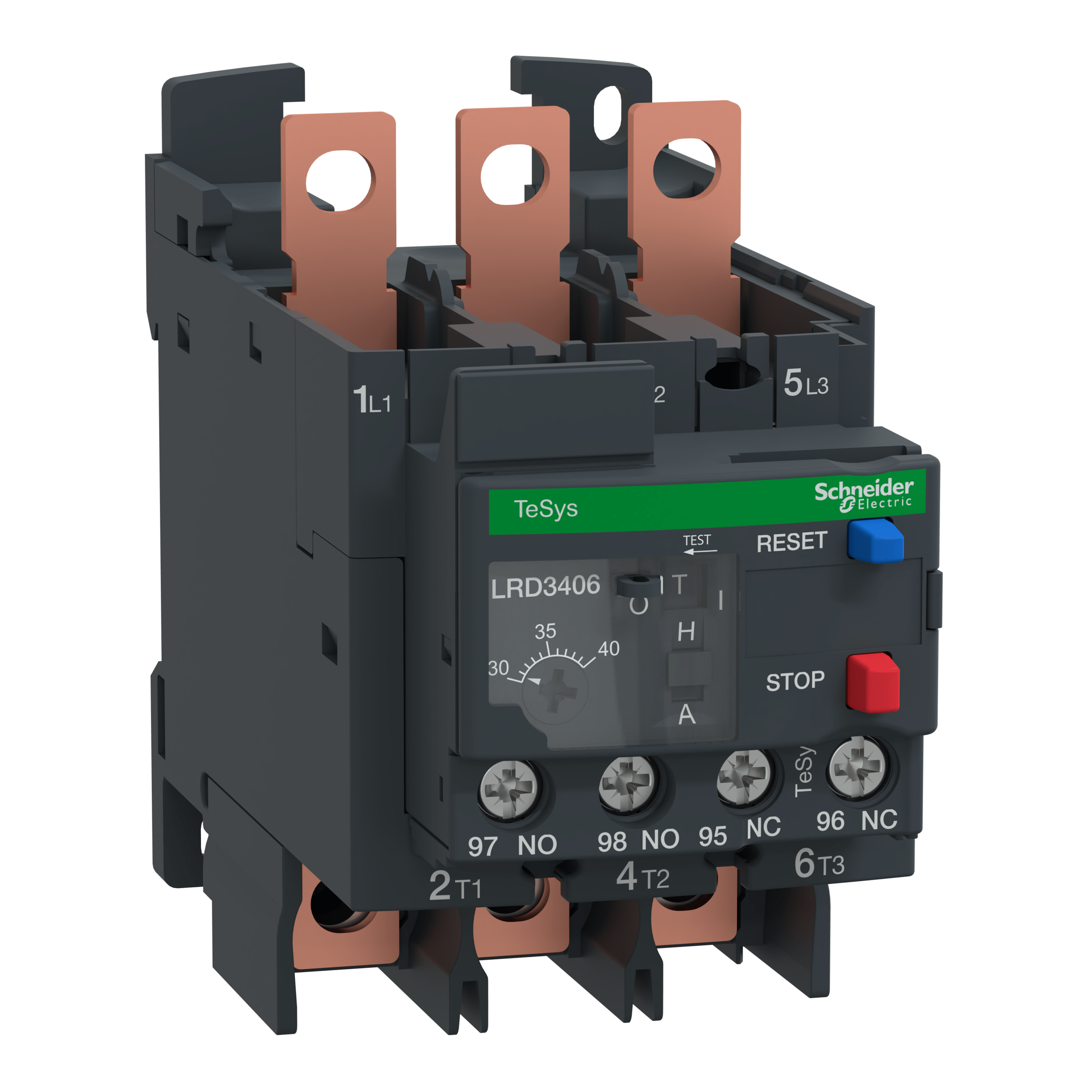

LRD3406TeSys LRD thermal overload relays – 30…40 A – class 10AR2 926.28View product
