Schneider ElectricThermal Overload Relays

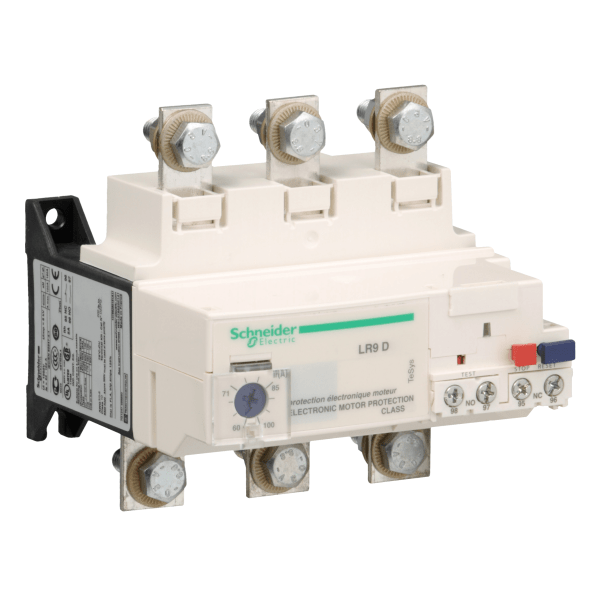

LR9D5367 – LR9D5367 – TeSys LRD thermal overload relays – 60…100 A – class 10 | Schneider Electric
Order code
List R7 182.00 Your price R4 883.76
Per unit · volume pricing available on request
excl. VAT R5 616.32 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
LR9D5367 – TeSys LRD thermal overload relays – 60…100 A – class 10 — Schneider Electric order code LR9D5367. Rated current 100 A; rated voltage 1000 V; DIN rail mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Rating100 A24 options
Rated voltage1000 V2 options
- 690 V
- 1000 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LR9D5367 — LR9D5367 – TeSys LRD thermal overload relays – 60…100 A – class 10 from the Schneider Electric TeSys LR.D range. Listed under Thermal Overload Relays on the Schneider Electric catalogue at RMS-SE.Africa.
About LR9D5367
TeSys LR9D electronic overload relay, 100A/1000V, thermal setting range 60-100A, tripping class 10, for protection of 3-phase motors 37-45kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150. Mounting on DIN rail or screw fixing, separated from contactor, can be done without accessories. Multi-standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).
LR9D5367 key specifications
Key specifications: rated current 100 A; rated voltage 1000 V; DIN rail mounting.
Ordering information for LR9D5367
- Order code:
LR9D5367 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys LR.D
- GTIN / EAN: 3389110113099
- Supplied: each
- Weight: 0.934 kg
- ETIM class: EC000106
- Datasheet: manufacturer datasheet for LR9D5367
About the TeSys LR.D range
TeSys LR.D is a Schneider Electric range with 64 references listed on RMS-SE.Africa, from 1 A to 150 A. It spans Thermal Overload Relays, Contactors.
LR9D5367 — frequently asked questions
What is the rated current of LR9D5367?
LR9D5367 is rated 100 A.
Where is the datasheet for LR9D5367?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LR9D5367 a genuine Schneider Electric product?
Yes. LR9D5367 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LR9D5367 – LR9D5367 – TeSys LRD thermal overload relays – 60…100 A – class 10 Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys LR.D |
| GTIN / EAN | 3389110113099 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000106 |
Electrical ratings
| Rated current (Iu) | Filter products by 100 A |
|---|---|
| Rated voltage (Ue) | Filter products by 1000 V |
| Operating Voltage | Filter products by 1000V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 45 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Thermal Overload Relays |
| SKU/Code/Partnumber | Search products for LR9D5367 |
| Iternational GTIN | 3389110113099 |
