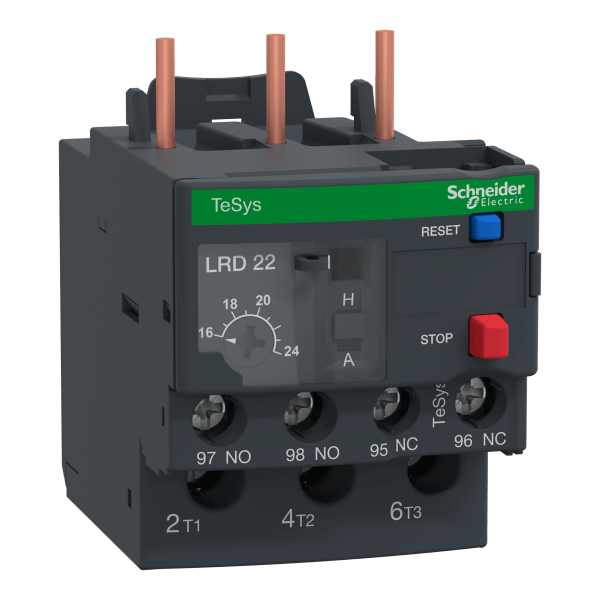

LRD22 – Thermal overload relay, TeSys LRD, 16…24 A, class 10A Schneider Electric

LRD22 – Thermal overload relay, TeSys LRD, 16…24 A, class 10A Schneider Electric TeSys LRD thermal overload relay, 24A/690V, thermal setting range 16-24A, tripping class 10A, for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach). Thermal overload relay, TeSys LRD, 16…24 A, class 10A LRD22 – TeSys LR.D

LRD22 – Thermal overload relay, TeSys LRD, 16…24 A, class 10A Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the TeSys range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: TeSys
• Amperage: 24 A
• Voltage: 690V
• Mount Type: DIN Rail

Key Features

• Part of the TeSys range
• Rated at 24 A
• Suitable for 690V applications
• DIN Rail installation format

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
