Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

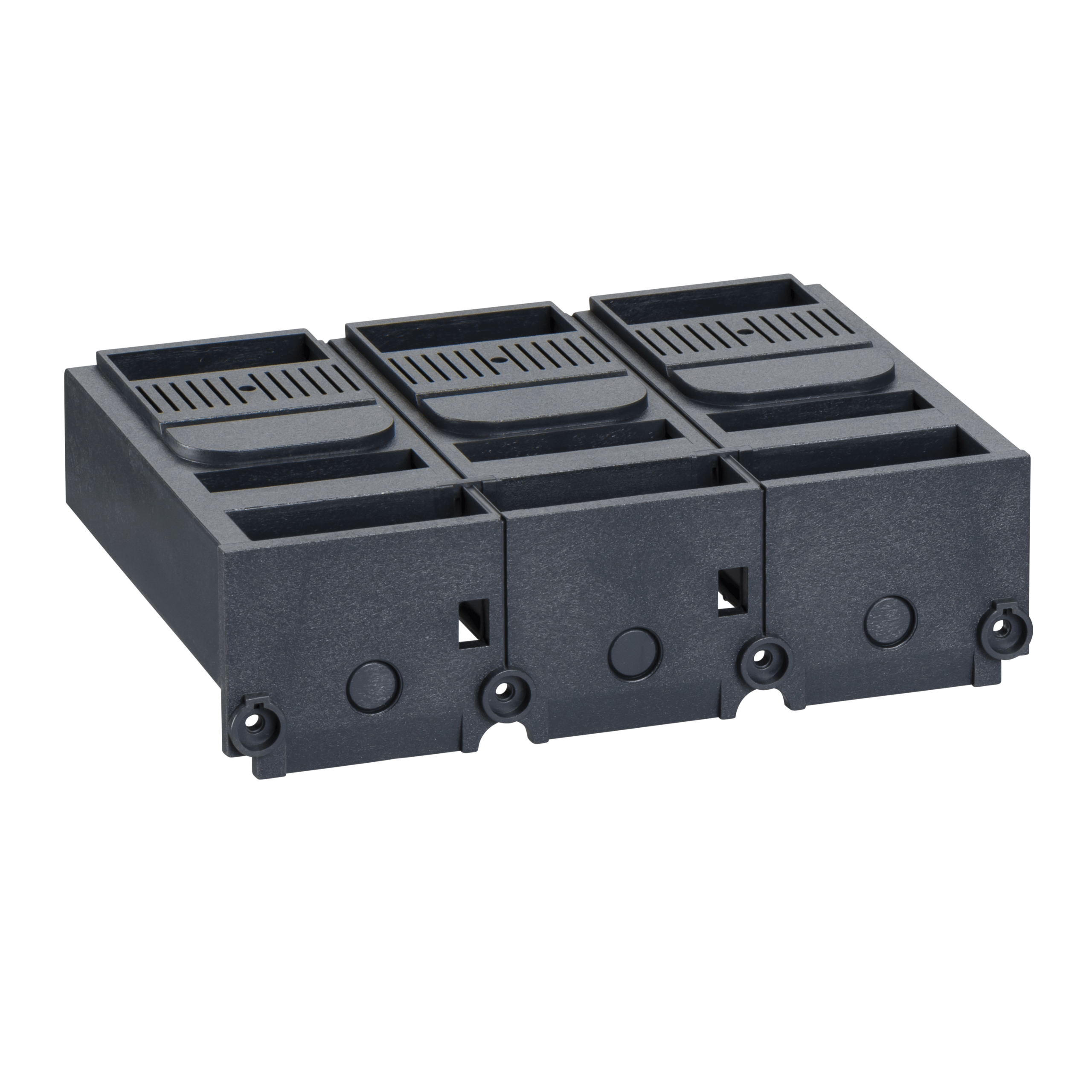

LV432591 – short terminal shield, ComPact NSX400/630, pitch 45 mm, IP40, 3 poles Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Original price was: R544.00.R369.92Current price is: R369.92.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Short terminal shield, ComPact NSX400/630, pitch 45 mm, IP40, 3 poles — Schneider Electric order code LV432591. 3P; IP40; plug-in mounting.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV432591 — Short terminal shield, ComPact NSX400/630, pitch 45 mm, IP40, 3 poles, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range.
This is an insulation accessory for 3 poles Compact NSX 400/630 or EasyPact CVS 400/630. This short terminal shield protects against direct contact with power circuit. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Key specifications: 3P; IP40; plug-in mounting.
Ordering information
- Order code:
LV432591 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480019937
- Supplied: each
- Weight: 0.114 kg
- ETIM class: EC002498
- Datasheet: manufacturer datasheet for LV432591
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|
Mechanical & mounting
| Mounting | Filter products by plug-in |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP40 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV432591 |
| Iternational GTIN | Filter products by 3606480019937 |
