| Rated current (Iu) | Filter products by 600 A |
|---|---|
| Rated voltage (Ue) | Filter products by 530 V AC |
| Number of poles | Filter products by 3P |
| Degree of protection (IP) | Filter products by IP40 |
| Product Series | Filter products by Compact NSX <630 |
Schneider ElectricMoulded Case Circuit Breakers (MCCBs)
LV432861 – current transformer module with voltage output, ComPact NSX630, 600 A rating, 3 poles Schneider Electric
Order code
R11 658.90
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Current transformer module with voltage output, ComPact NSX630, 600 A rating, 3 poles — Schneider Electric order code LV432861. Rated current 600 A; 3P; rated voltage 530 V AC; IP40.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV432861 — Current transformer module with voltage output, ComPact NSX630, 600 A rating, 3 poles, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range.
This is an additional current transformer module of 600A rating with voltage measurement output for 3 poles ComPact NSX630 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 600A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 2VA. The class accuracy is 0.5. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.
Key specifications: rated current 600 A; 3P; rated voltage 530 V AC; IP40.
Ordering information
- Order code:
LV432861 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480020872
- Supplied: each
- Weight: 2.221 kg
- ETIM class: EC002048
- Datasheet: manufacturer datasheet for LV432861
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 600 A |
| Rated voltage (Ue) | Filter products by 530 V AC |
| Rated operational voltage | Filter products by 530 V AC |
| Operating Voltage | Filter products by 530 VAC |
Environment & protection
| Degree of protection (IP) | Filter products by IP40 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV432861 |
| Iternational GTIN | Filter products by 3606480020872 |
More in the Compact NSX <630 range
Same series, same mounting and the same documentation set.
TRV00917MicroLogic cord, for USB maintenance interface Original price was: R6 072.00.R4 128.96Current price is: R4 128.96.View product

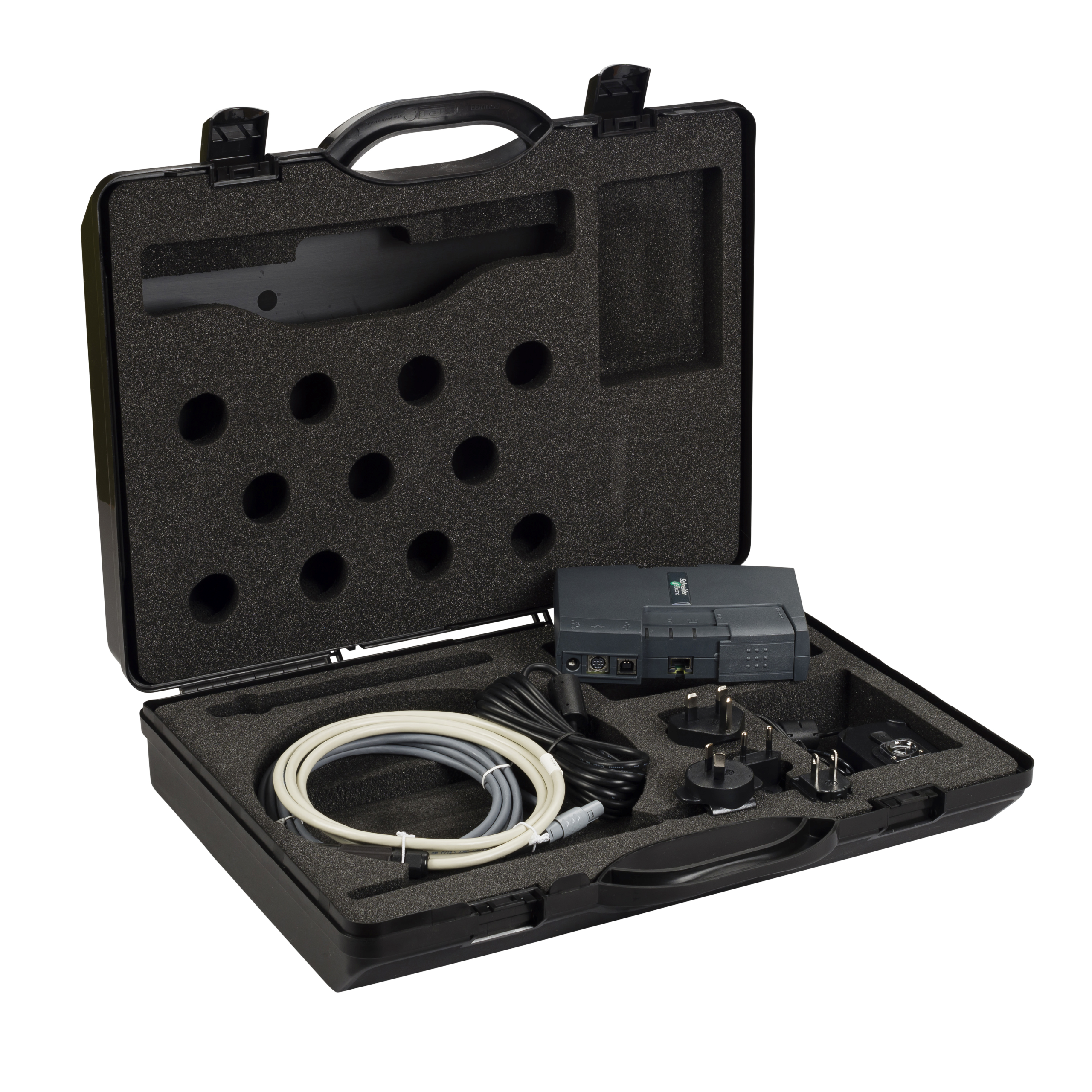

TRV00910maintenance case, ComPact NSX, ComPact NSXm Schneider ElectricR19 469.05View product
LV438720circuit breaker ComPact NSX160S AC/DC, 70 kA at 415 VAC, TMD trip unit 160 A, 2 poles 2dR7 870.15View product
LV438710circuit breaker ComPact NSX160M AC/DC, 25 kA at 415 VAC, TMD trip unit 160 A, 2 poles 2dR11 257.54View product- LV438709circuit breaker ComPact NSX160M AC/DC, 25 kA at 415 VAC, TMD trip unit 125 A, 2 poles 2dR9 451.63View product
LV438700circuit breaker ComPact NSX160F AC/DC, 18 kA at 415 VAC, TMD trip unit 160 A, 2 poles 2dR6 253.02View product- LV438699circuit breaker ComPact NSX160F AC/DC, 18 kA at 415 VAC, TMD trip unit 125 A, 2 poles 2dR5 493.63View product

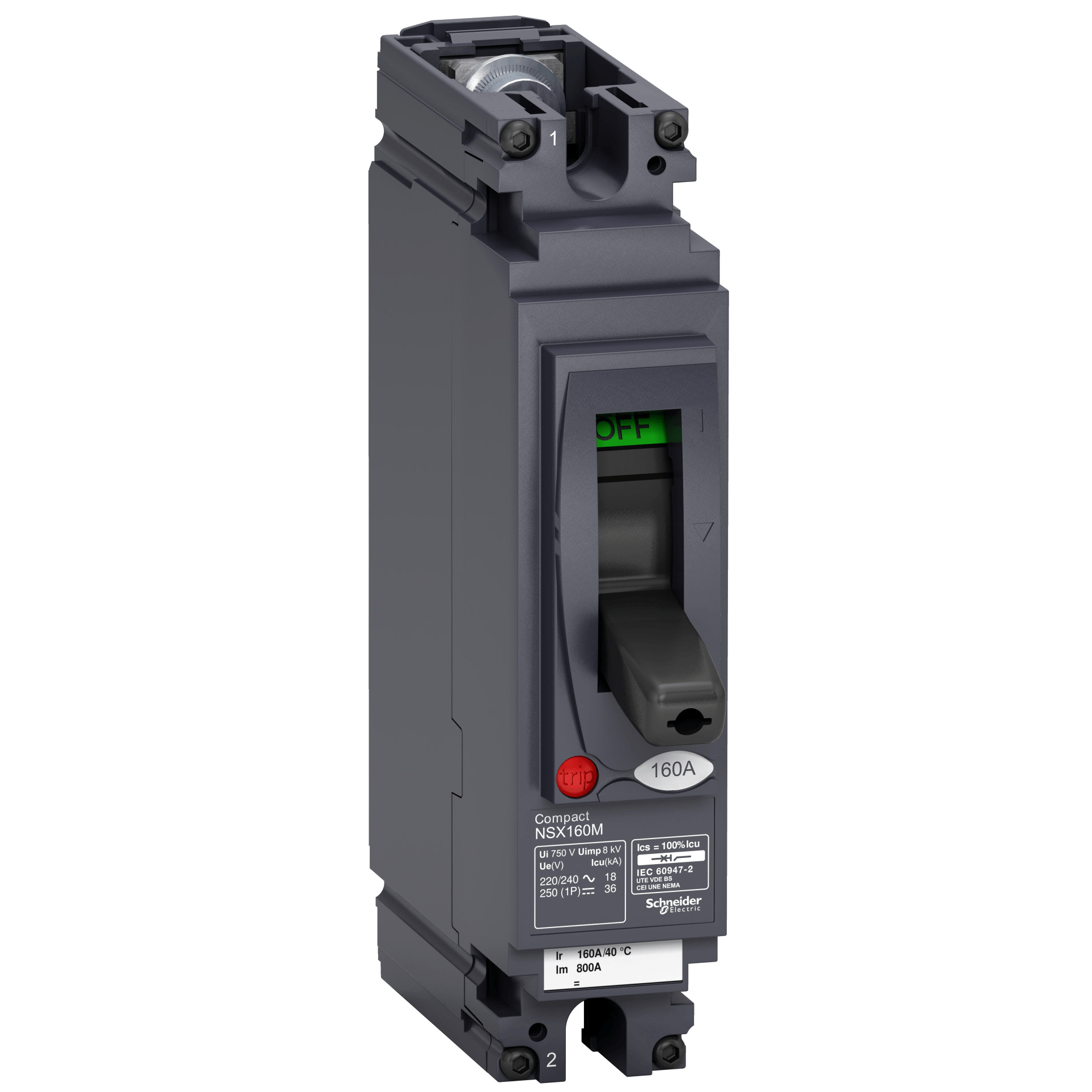

LV438690circuit breaker ComPact NSX160M AC/DC, 40 kA at 240 VAC, TMD trip unit 160 A, 1 pole 1dR8 369.53View product
Similar items

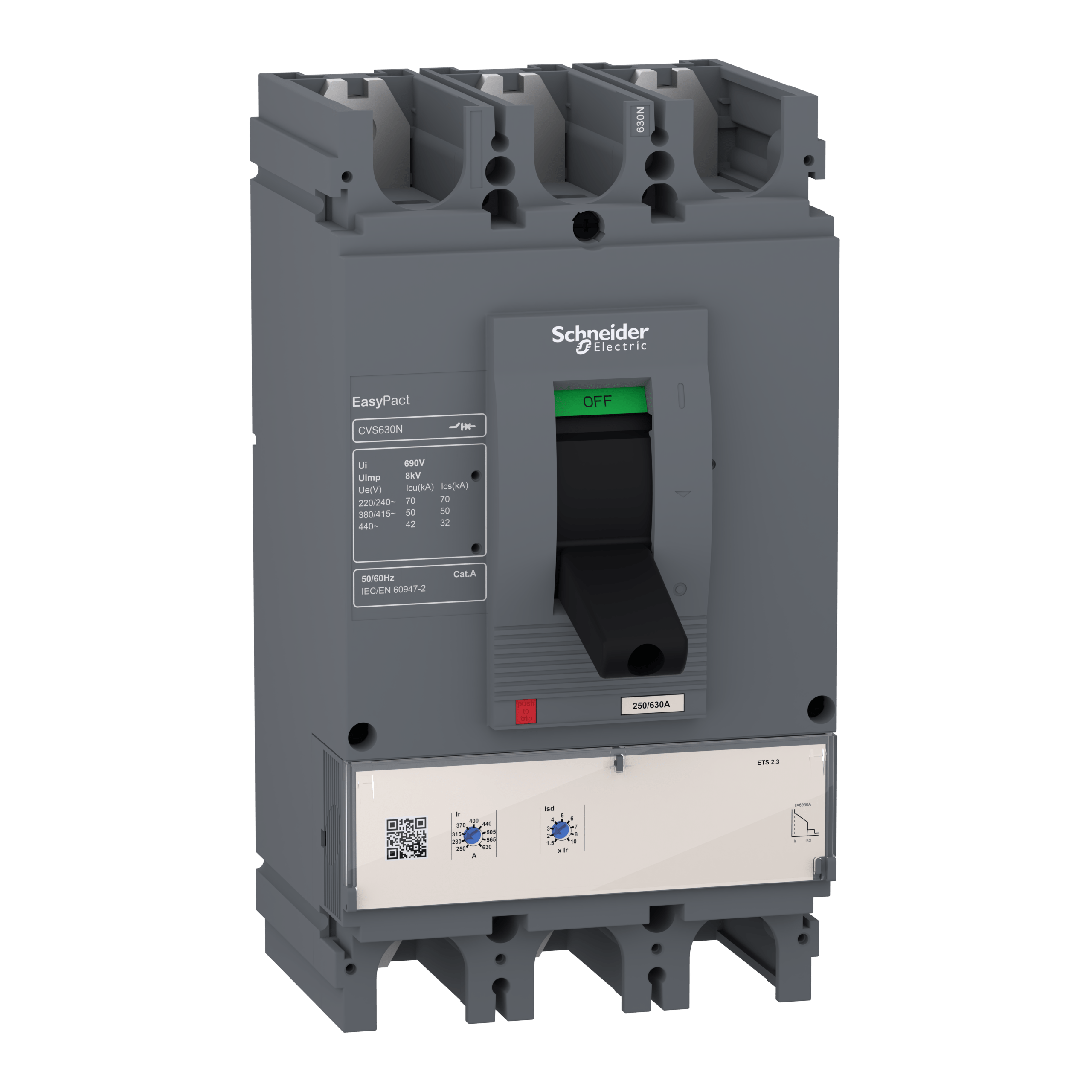

LV563510circuit breaker EasyPact CVS630N, 50 kA at 415 VAC, 630 A rating ETS 2.3 electronic trip unit, 3P 3d Original price was: R18 027.00.R12 258.36Current price is: R12 258.36.View product
LV563505circuit breaker EasyPact CVS630F, 36 kA at 415 VAC, 630 A rating ETS 2.3 electronic trip unit, 3P 3d Original price was: R16 207.00.R11 020.76Current price is: R11 020.76.View product- LV540505circuit breaker EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating ETS 2.3 electronic trip unit, 3P 3dR13 493.95View product

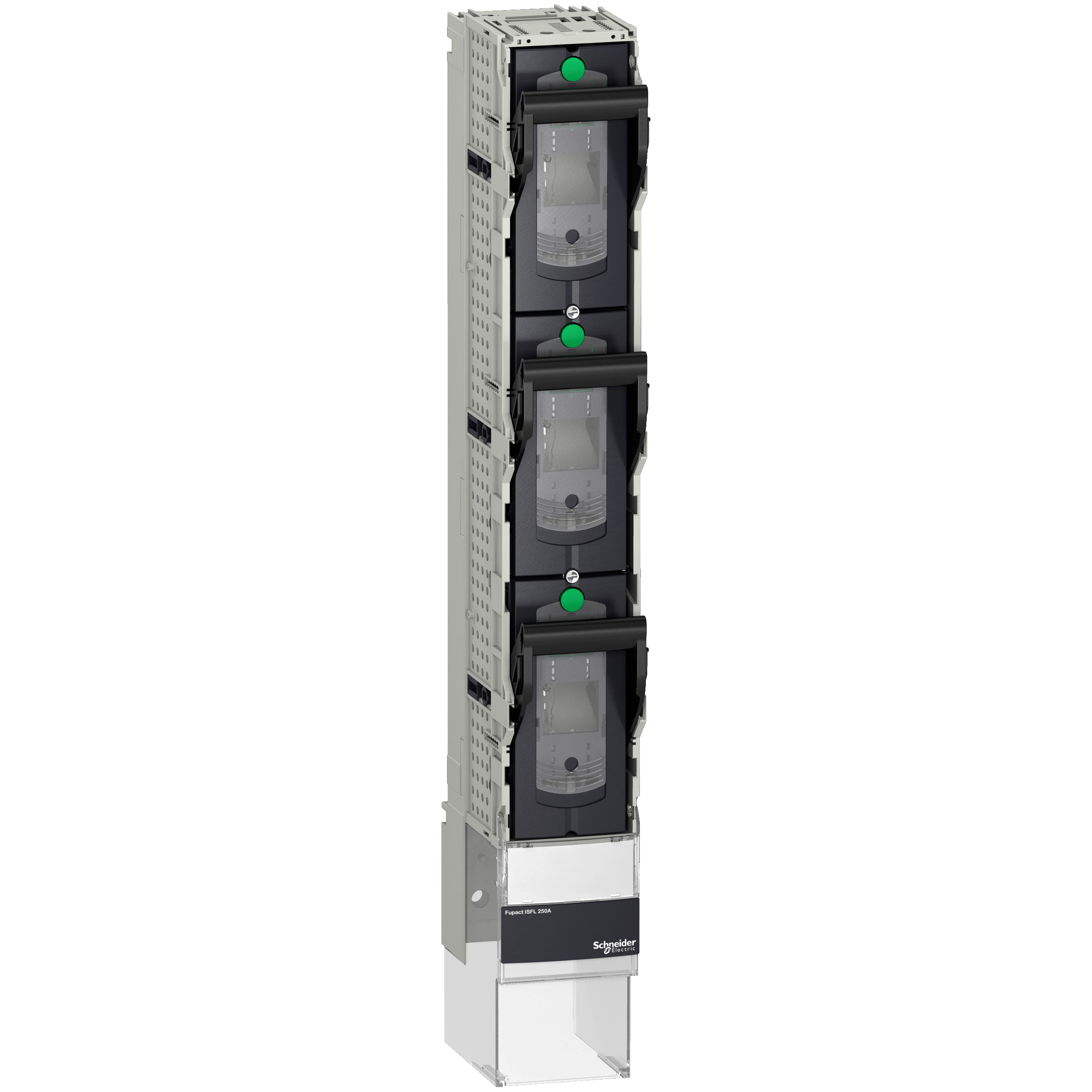

LV480903fuse switch disconnector, FuPacT ISFL630, 630A, 1 pole switchable, connection to 185mm busbars, M12 screws Schneider ElectricR9 747.37View product

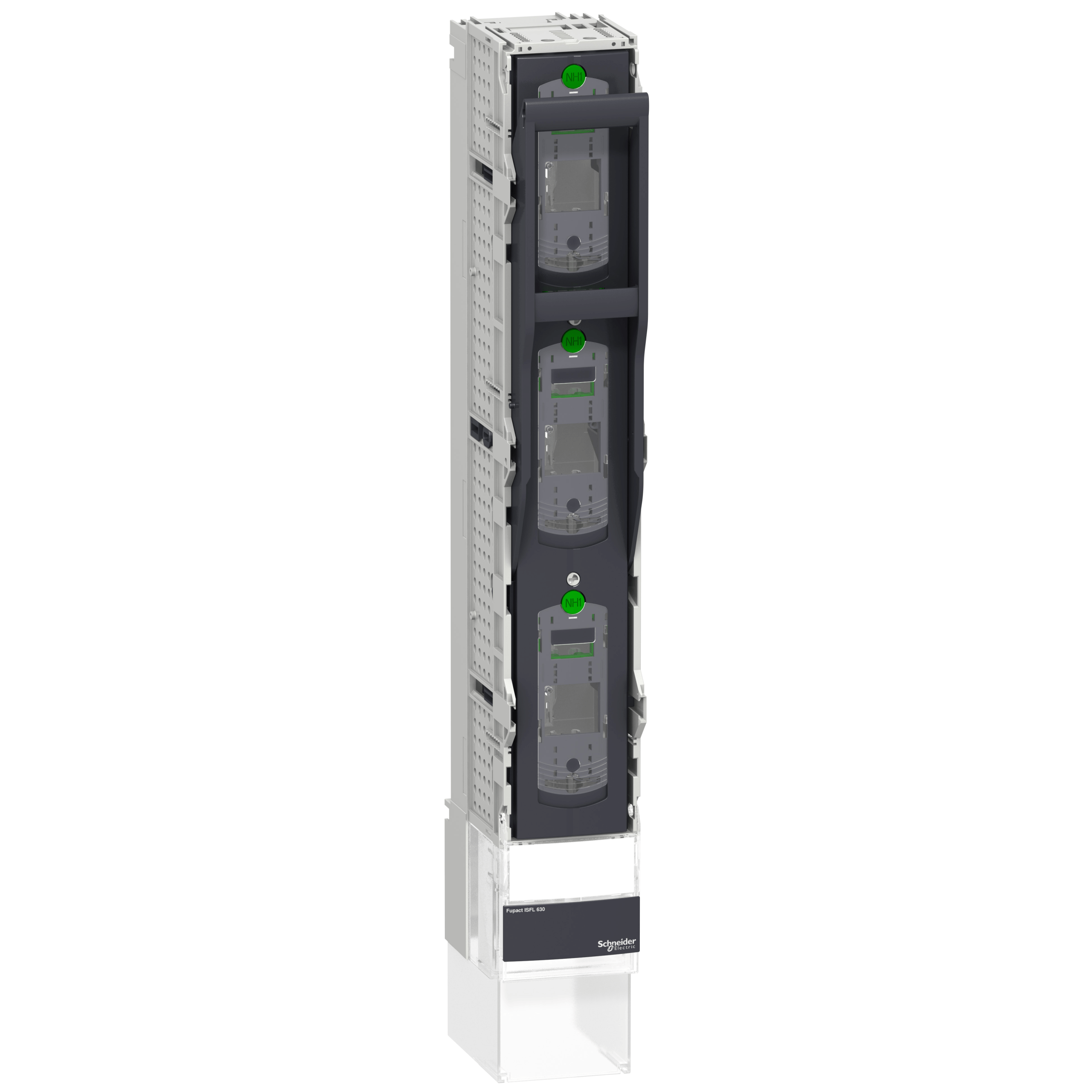

LV480858fuse switch disconnector, FuPacT ISFL630, 630A, 3 poles switchable, connection to 185mm busbars, M12 screws Schneider ElectricR9 265.25View product

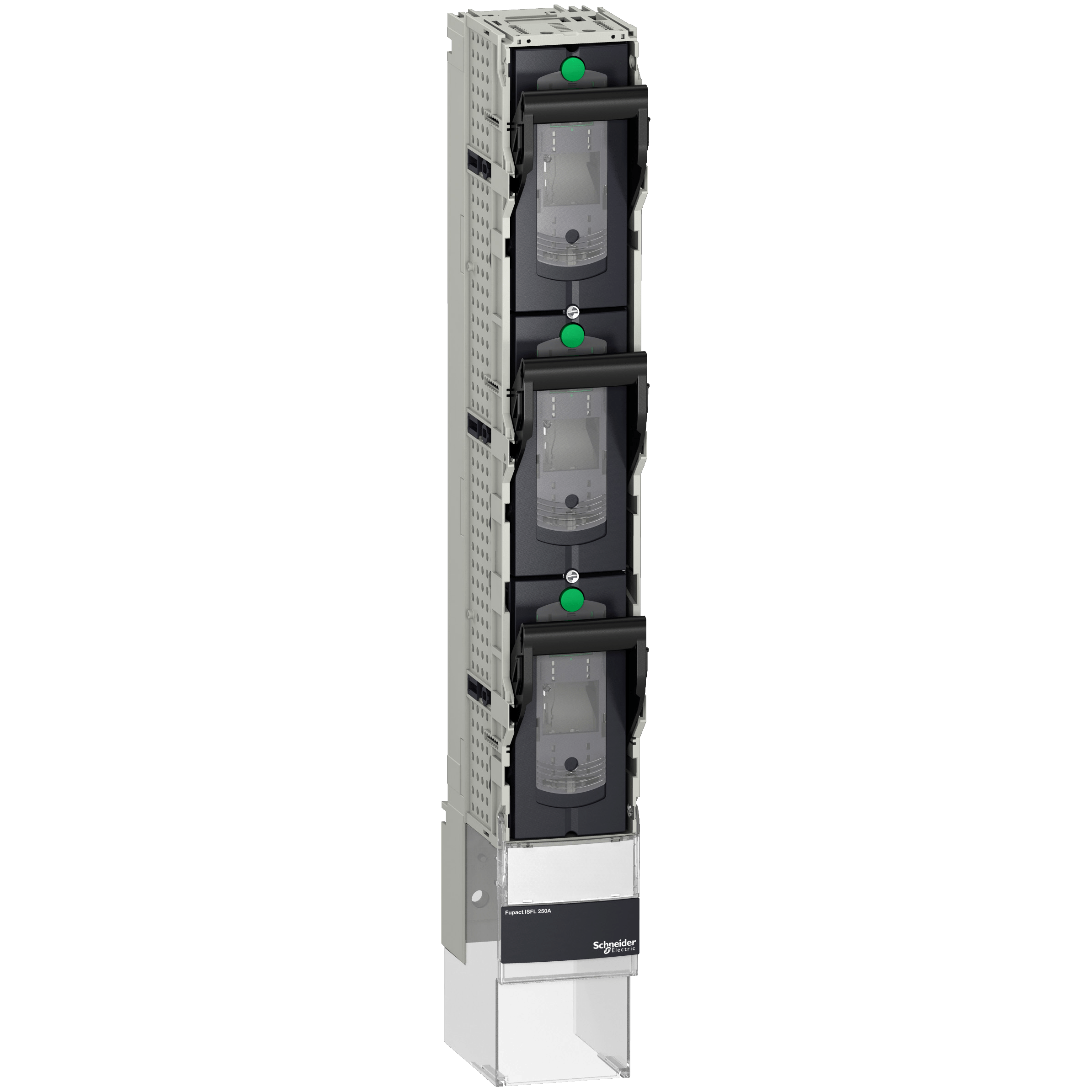

LV480902fuse switch disconnector, FuPacT ISFL400, 400A, 1 pole switchable, connection to 185mm busbars, M12 screws Schneider ElectricR8 949.19View product
