Schneider Electric4 Large building ConfigurableConfigurableMoulded Case Circuit Breakers (MCCBs)

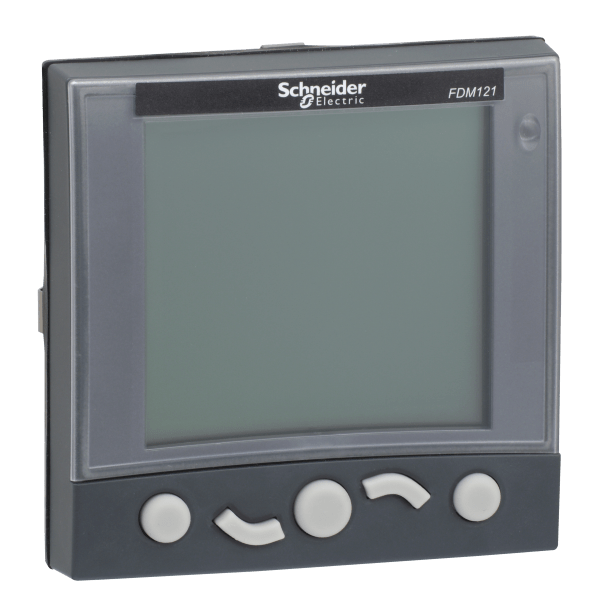

TRV00121 – switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face Schneider Electric
Order code
Original price was: R4 561.00.R3 101.48Current price is: R3 101.48.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face – Compact NS switches disconnectors | TRV00121
Accessories & add-ons 4
- PowerLogic PM8000 – PM8243 DIN rail mount meter – intermediate meteringMETSEPM8243 Original price was: R40 519.00.R32 415.20Current price is: R32 415.20.Add
- PowerLogic PM8000 – PM8244 DIN rail mount meter + Remote display – int. meteringMETSEPM8244 Original price was: R50 292.00.R40 233.60Current price is: R40 233.60.Add
- PowerLogic PM8000 – PM8214 LV DC – DIN rail mount meter + Remote display – int. Schneider ElectricMETSEPM8214 Original price was: R53 814.00.R43 051.20Current price is: R43 051.20.Add
- PowerLogic PM8000 – PM8213 LV DC – DIN rail mount meter – intermediate meteringMETSEPM8213R37 746.88Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TRV00121 – switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face Schneider Electric This FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact and PowerPact circuit breakers. FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP. Its LCD screen offers a high resolution with white backlighting. The FDM121 is equipped with a 24VDC terminal block and two RJ45 sockets for ULP connection. It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22mm diameter holes. It is a 96 x 96 x 30 mm screen requiring 10 mm behind the door (or 20 mm when the 24 V power supply connector is used) The operating temperature range is between -10°C to 55°C, and the protection degree is IP54 on the front face. The FDM121 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM121 firmware can be updated using EcoStruxure Power Commission software. switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face TRV00121 – Compact NS switches disconnectors
TRV00121 – switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the switchboard range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: switchboard
- Voltage: 24VDC
- IP Rating: IP54
- Connector Type: RJ45
Key Features
- Part of the switchboard range
- Suitable for 24VDC applications
- IP54 ingress protection
- Compatible with RJ45 connections
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Metering | Power Capacitors For PF Correction
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated voltage (Ue) | Filter products by 24VDC |
|---|---|
| Rated operational voltage | Filter products by 24VDC |
| Operating Voltage | Filter products by 24VDC |
Environment & protection
| Degree of protection (IP) | Filter products by IP54 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by TRV00121 |
| Iternational GTIN | Filter products by 3606480025389 |
| Connector Type | Filter products by RJ45 |
