Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

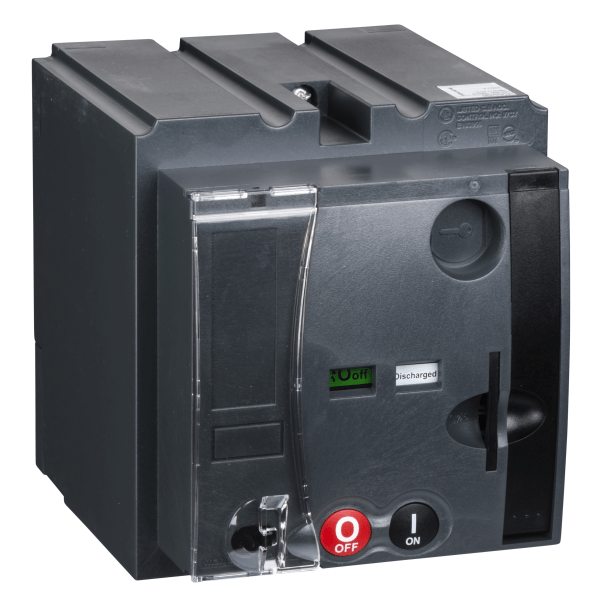

LV432645 – Standard motor mechanism module MT400/630, ComPact NSX400/630, 110/130 VDC | Schneider Electric
Order code
List R19 046.63 Your price R12 951.71
Per unit · volume pricing available on request
excl. VAT R14 894.47 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Standard motor mechanism module MT400/630, ComPact NSX400/630, 110/130 VDC — Schneider Electric order code LV432645. Rated voltage 130 V DC.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
RatingChoose23 options
Breaking capacityChoose13 options
Rated voltage130 V DC13 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV432645 — Standard motor mechanism module MT400/630, ComPact NSX400/630, 110/130 VDC, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV432645
This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 110VDC to 130VDC. The consumption is less than 500W. Padlocking of the device remains possible.
LV432645 key specifications
Key specifications: rated voltage 130 V DC.
Availability and replacement
Schneider Electric names ComPacT NSX (new generation) as the successor to the Compact NSX <630 range. Schneider substitution guide: same frame sizes. Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for LV432645
- Order code:
LV432645 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480020216
- Supplied: each
- Weight: 3.158 kg
- ETIM class: EC001030
- Datasheet: manufacturer datasheet for LV432645
About the Compact NSX <630 range
Compact NSX <630 is a Schneider Electric range with 597 references listed on RMS-SE.Africa, from 2.5 A to 630 A. Schneider Electric has announced ComPacT NSX (new generation) as its successor.
LV432645 — frequently asked questions
Where is the datasheet for LV432645?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV432645 a genuine Schneider Electric product?
Yes. LV432645 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LV432645 – standard motor mechanism module MT400/630, ComPact NSX400/630, 110/130 VDC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Compact NSX <630 |
| GTIN / EAN | 3606480020216 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001030 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 130 V DC |
|---|---|
| Operating Voltage | Filter products by 130 VDC |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Search products for LV432645 |
| Iternational GTIN | 3606480020216 |
