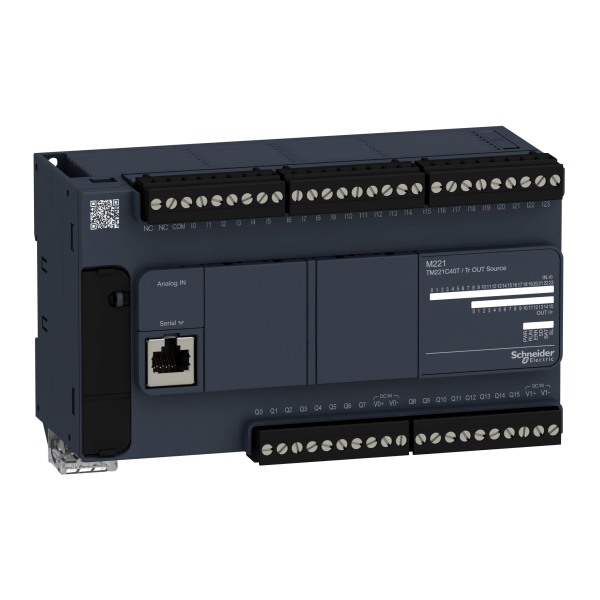

TM221C40T – Logic controller, Modicon M221, 40 Input/Output, transistor PNP Schneider Electric
Order code
R11 723.29
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – Logic controller, Modicon M221, 40 Input/Output, transistor PNP – Modicon M221 | TM221C40T
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM221C40T – Logic controller, Modicon M221, 40 Input/Output, transistor PNP Schneider Electric This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 24 discrete, 4 fast inputs, 16 transistor, 2 fast outputs with PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 160mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.456kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks Logic controller, Modicon M221, 40 Input/Output, transistor PNP TM221C40T – Modicon M221
TM221C40T – Logic controller, Modicon M221, 40 Input/Output, transistor PNP Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the Logic range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: Logic
- Amperage: 5A
- Voltage: 24V
- IP Rating: IP20
- Mount Type: DIN Rail
- Connector Type: RJ45
Key Features
- Part of the Logic range
- Rated at 5A
- Suitable for 24V applications
- IP20 ingress protection
- DIN Rail installation format
- Compatible with RJ45 connections
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Metering | Power Capacitors For PF Correction | Mid Range PLC
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 5A |
|---|---|
| Rated voltage (Ue) | Filter products by 24V |
| Rated operational voltage | Filter products by 24V |
| Operating Voltage | Filter products by 24V |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction, Filter products by Mid Range PLC |
|---|---|
| SKU/Code/Partnumber | Filter products by TM221C40T |
| Iternational GTIN | Filter products by 3606480648748 |
| Mount Type | Filter products by DIN Rail |
| Connector Type | Filter products by RJ45 |
Quick answers
What is TM221C40T?
TM221C40T is the order code for TM221C40T – Logic controller, Modicon M221, 40 Input/Output, transistor PNP Schneider Electric. It belongs to our 5 Industry Configurable range. RMS-SE.Africa supplies it as an authorised Schneider Electric distributor, so it is genuine product with the manufacturer's warranty.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
