Schneider ElectricProgrammable Logic Controllers (PLC)
TM221CE40R – TM221CE40R – Controller M221 40 IO relay Ethernet
Order code
Original price was: R11 455.00.R7 789.40Current price is: R7 789.40.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TM221CE40R – Controller M221 40 IO relay Ethernet — Schneider Electric order code TM221CE40R. Rated current 2 A; rated voltage 100 V; IP20; DIN rail mounting.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM221CE40R — TM221CE40R – Controller M221 40 IO relay Ethernet from the Schneider Electric Modicon M221 range.
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 24 discrete inputs and 16 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 160mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.456kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount.
Key specifications: rated current 2 A; rated voltage 100 V; IP20; DIN rail mounting.
Ordering information
- Order code:
TM221CE40R - Manufacturer: Schneider Electric
- Range: Modicon M221
- GTIN / EAN: 3606480648793
- Supplied: each
- Weight: 0.83 kg
- ETIM class: EC000236
- Datasheet: manufacturer datasheet for TM221CE40R
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by TM221CE40R – TM221CE40R – Controller M221 40 IO relay Ethernet Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Modicon M221 |
| GTIN / EAN | Filter products by 3606480648793 |
| Range | Filter products by Modicon M221 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000236 |
Electrical ratings
| Rated current (Iu) | Filter products by 2 A |
|---|---|
| Rated voltage (Ue) | Filter products by 100 V |
| Rated operational voltage | Filter products by 100 V |
| Operating Voltage | Filter products by 100V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction, Filter products by Mid Range PLC |
|---|---|
| SKU/Code/Partnumber | Filter products by TM221CE40R |
| Iternational GTIN | Filter products by 3606480648793 |
| Mount Type | Filter products by DIN Rail |
| Connector Type | Filter products by RJ45 |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.

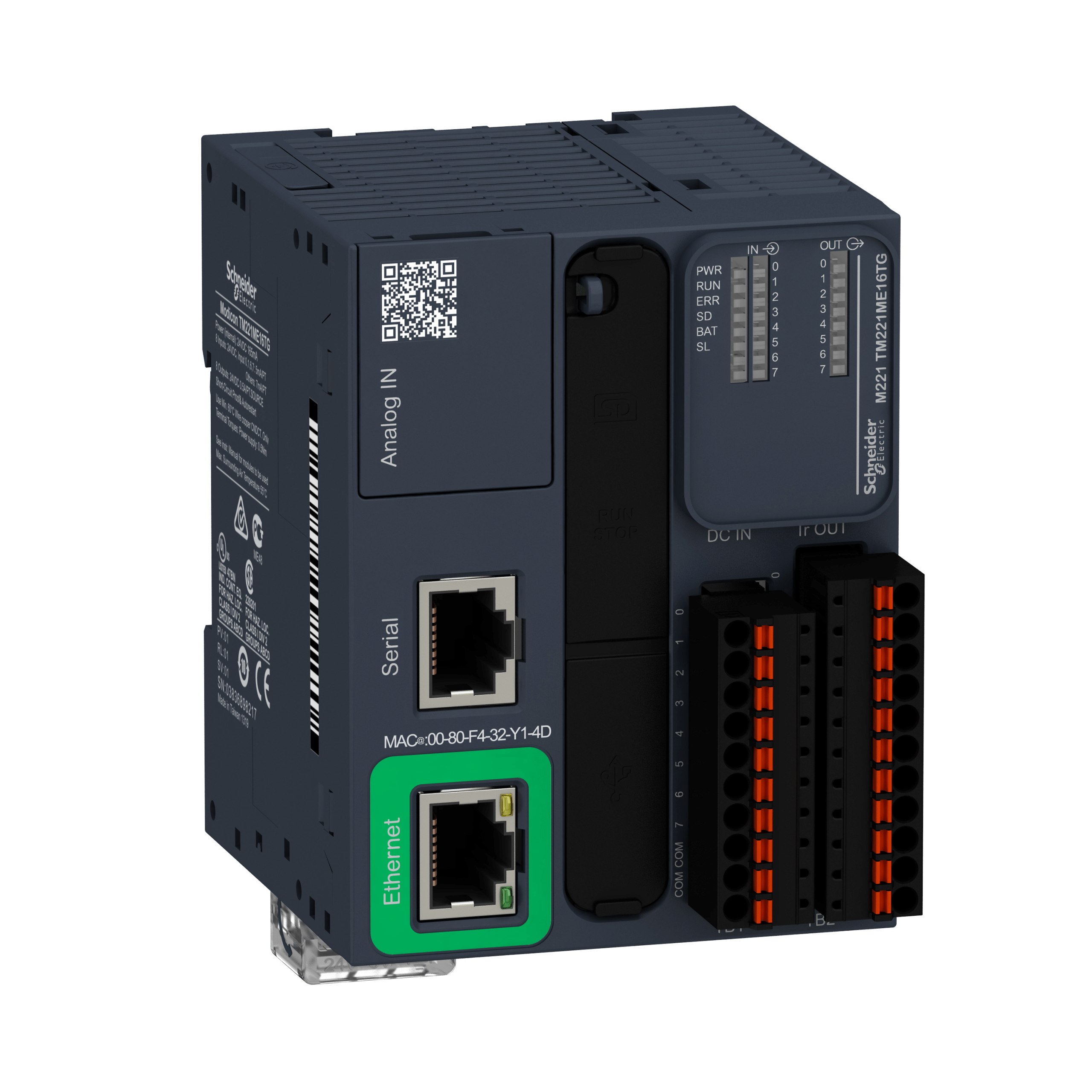

TM221ME16TGLogic controller, Modicon M221, 16 IO transistor PNP Ethernet spring Schneider ElectricR9 769.70View product
TM221ME16TLogic controller, Modicon M221, 16 Input/Output, transistor PNP, EthernetR9 769.70View product
TM221M16TGLogic controller, Modicon M221, 16 IO transistor PNP spring Schneider ElectricR8 793.74View product

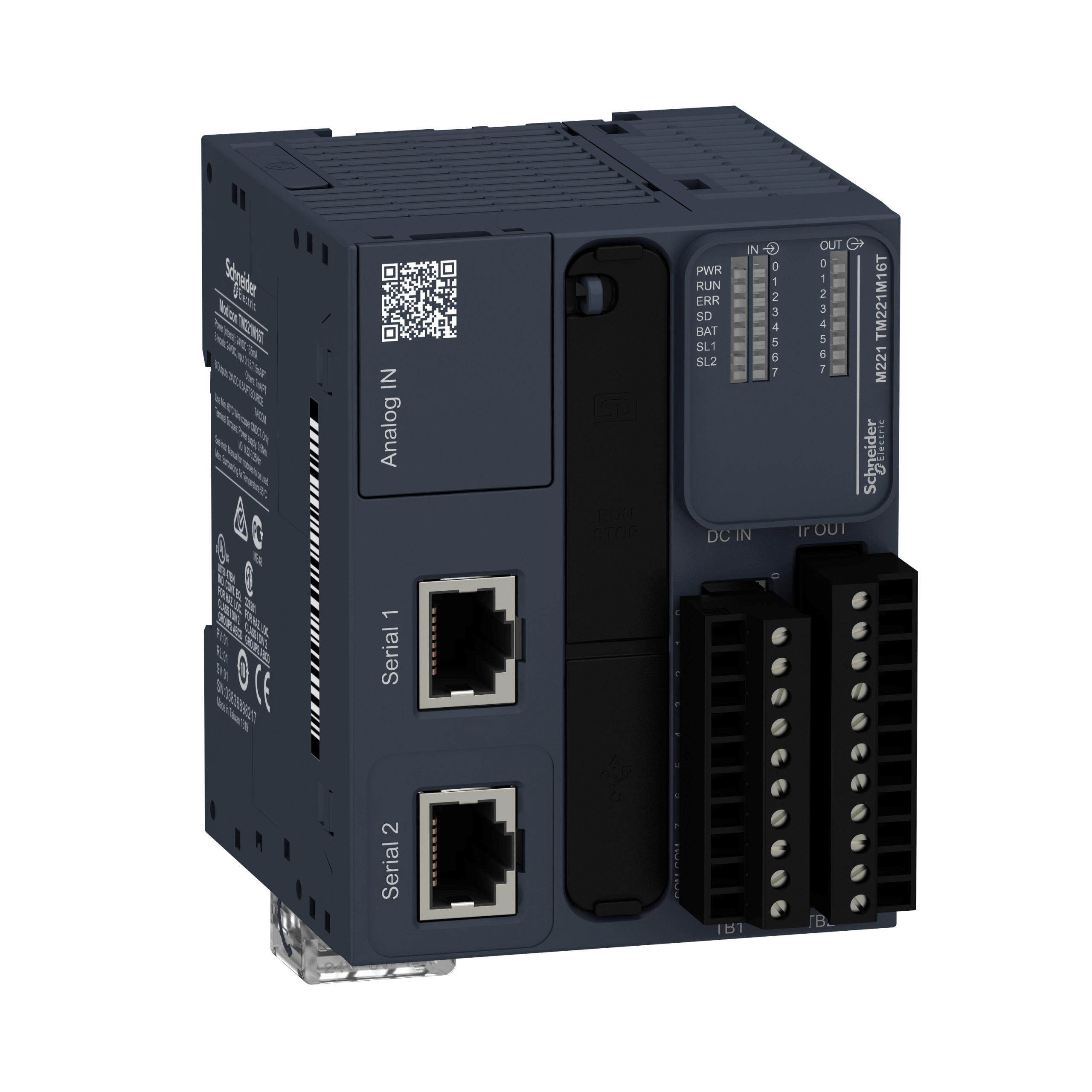

TM221M16TLogic controller, Modicon M221, 16 IO transistor PNP Schneider ElectricR8 793.74View product

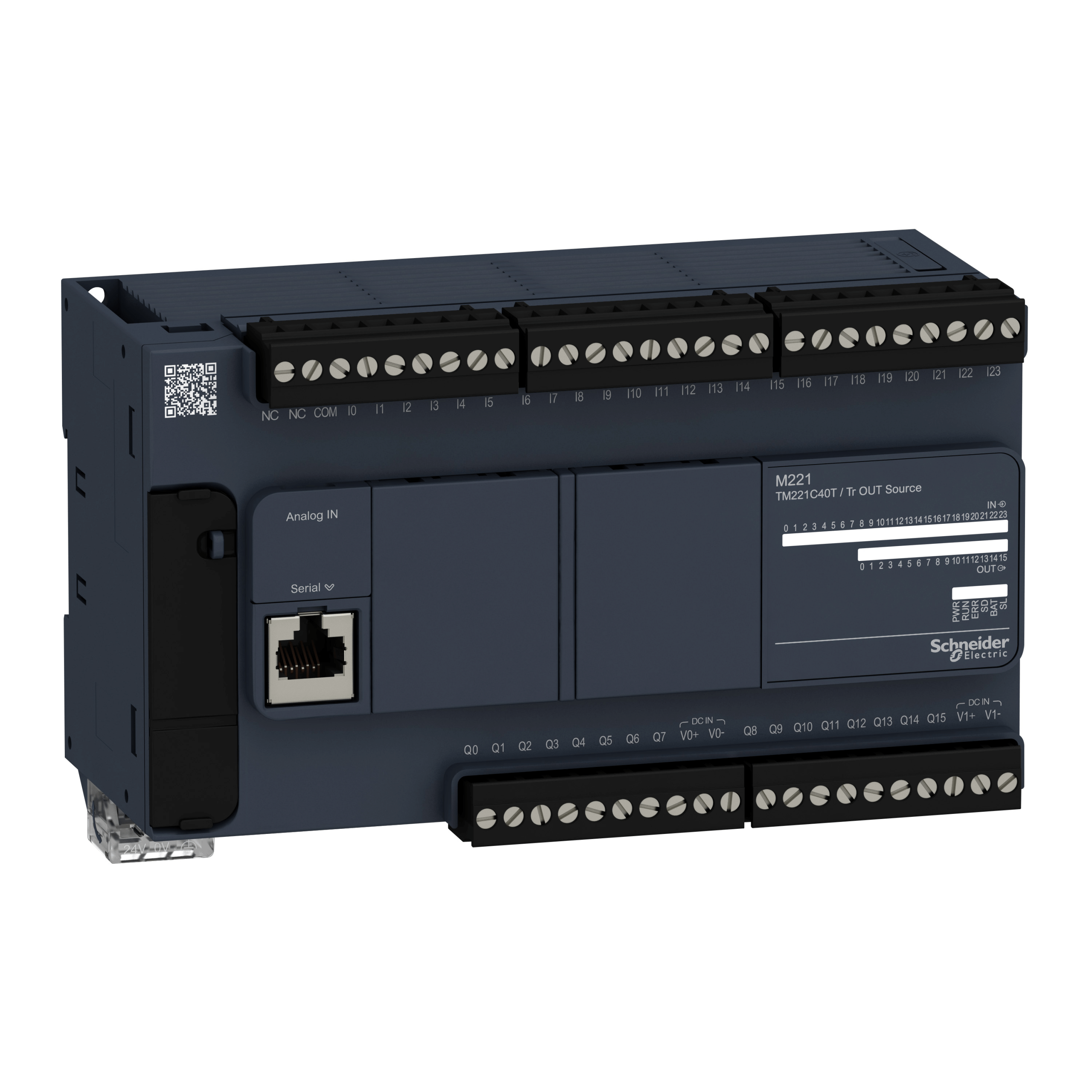

TM221C40TLogic controller, Modicon M221, 40 Input/Output, transistor PNP Schneider ElectricR11 723.29View product
TM221C24TLogic controller, Modicon M221, 24 Input/Output, transistor PNP Schneider ElectricR8 793.74View product
More in the Modicon M221 range
Same series, same mounting and the same documentation set.
TMH2GDBGraphic display, Modicon M221, unit, 240 x 160 pixels Schneider ElectricR5 862.50View product
TMC2TI2Analogue input cartridge, Modicon M221, 2 temperature inputs, I/O extensionR2 182.07View product
TMC2SL1Serial line cartridge, Modicon M221, 1 communication extension Original price was: R1 969.00.R1 338.92Current price is: R1 338.92.View product
TMC2PACK01Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extensionR2 398.75View product
TMC2HOIS01Analogue input cartridge, Modicon M221, hoisting 2 analog I/O extensionR2 398.75View product
TMC2CONV01Serial line cartridge, Modicon M221, conveying 1 I/O extensionR2 398.75View product
TMC2AQ2VAnalogue output cartridge, Modicon M221, 2 analog voltage outputs, I/O extension Original price was: R1 969.00.R1 338.92Current price is: R1 338.92.View product
TMC2AQ2CAnalogue output cartridge, Modicon M221, 2 analog current outputs, I/O extension Original price was: R1 969.00.R1 338.92Current price is: R1 338.92.View product
Similar items

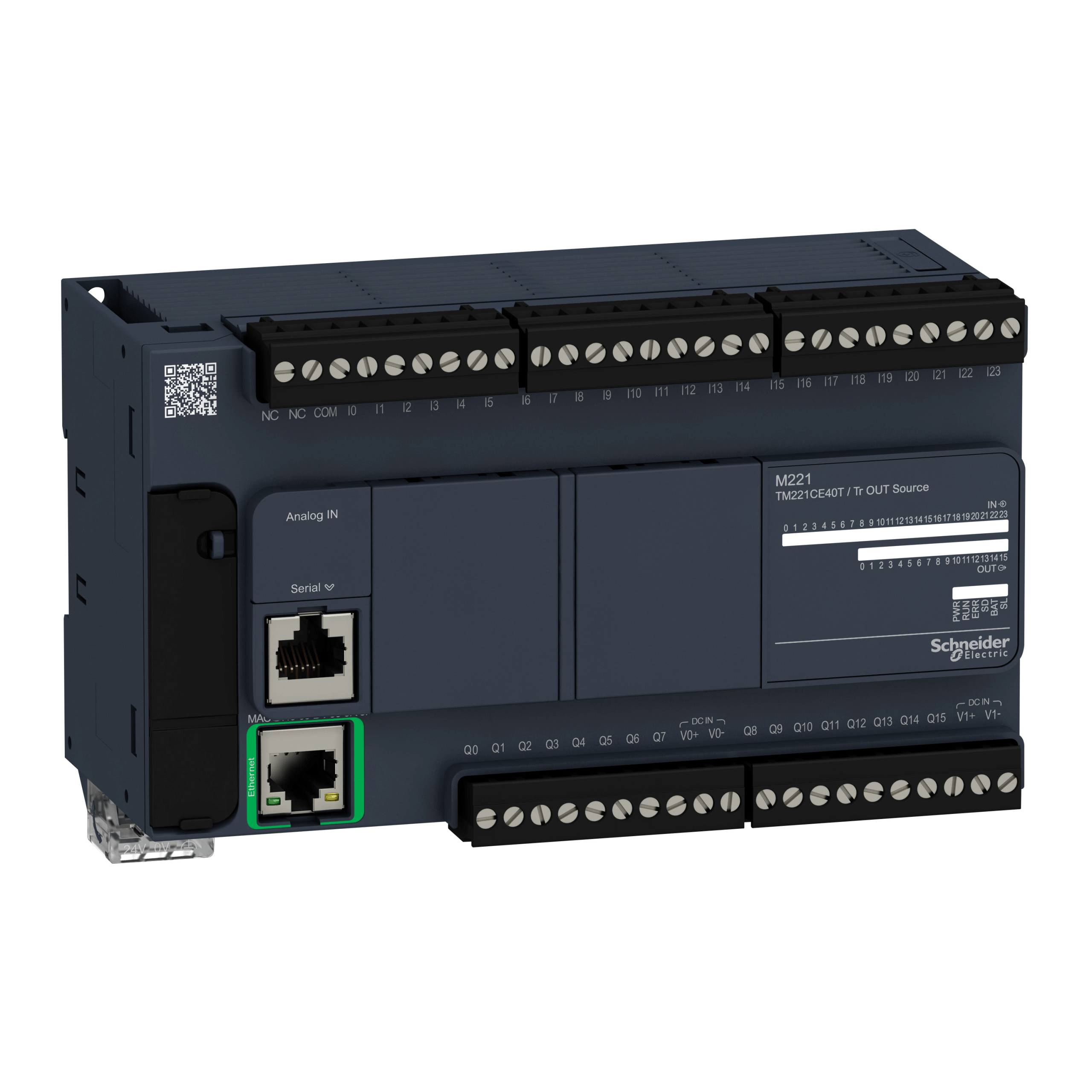

TM221CE40TTM221CE40T – Controller M221 40 IO transistor PNP Ethernet Original price was: R11 455.00.R7 789.40Current price is: R7 789.40.View product
TM221C16TLogic controller, Modicon M221, 16 Input/Output, transistor PNP Schneider ElectricR7 327.27View product
TM221C40RLogic controller, Modicon M221, 40 IO relay Schneider Electric Original price was: R10 574.00.R7 190.32Current price is: R7 190.32.View product
TM4PDPS1module network TM4 1 Profibus DP slave Schneider ElectricR8 723.19View product
TM221M16RGLogic controller, Modicon M221, 16 IO relay spring Schneider ElectricR8 793.74View product
TM221M16RLogic controller, Modicon M221, 16 IO relay Schneider ElectricR8 793.74View product
More in Programmable Logic Controllers (PLC)
TSXCBY720KTdaisy chaining Bus X cable kit – for racks – 2 connectors SUB-D 9 – 72 m Schneider ElectricR28 296.88View product- TSXCBY500KTdaisy chaining Bus X cable kit – for racks – 2 connectors SUB-D 9 – 50 m Schneider ElectricR24 815.54View product
- TSXCBY380KTdaisy chaining Bus X cable kit – for racks – 2 connectors SUB-D 9 – 38 m Schneider ElectricR20 934.34View product
TMC2AI2Analogue input cartridge, Modicon M221, 2 analog inputs, I/O extension Original price was: R1 969.00.R1 338.92Current price is: R1 338.92.View product
TMAT2PSETconnector set for M2X1 – power supply Schneider ElectricR559.39View product

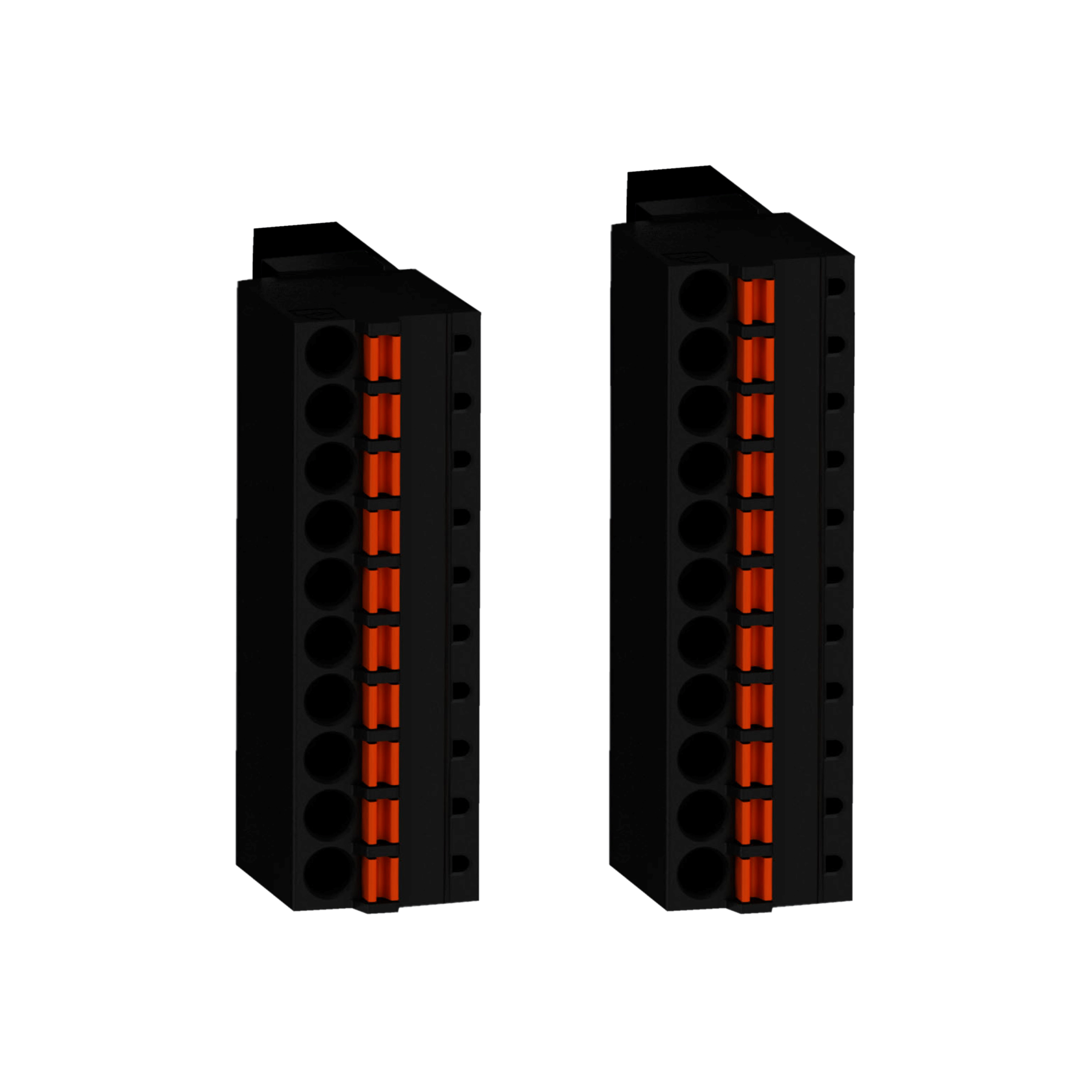

TMAT2MSETGconnector set for M221M and TM3 – IO Spring Schneider ElectricR419.94View product

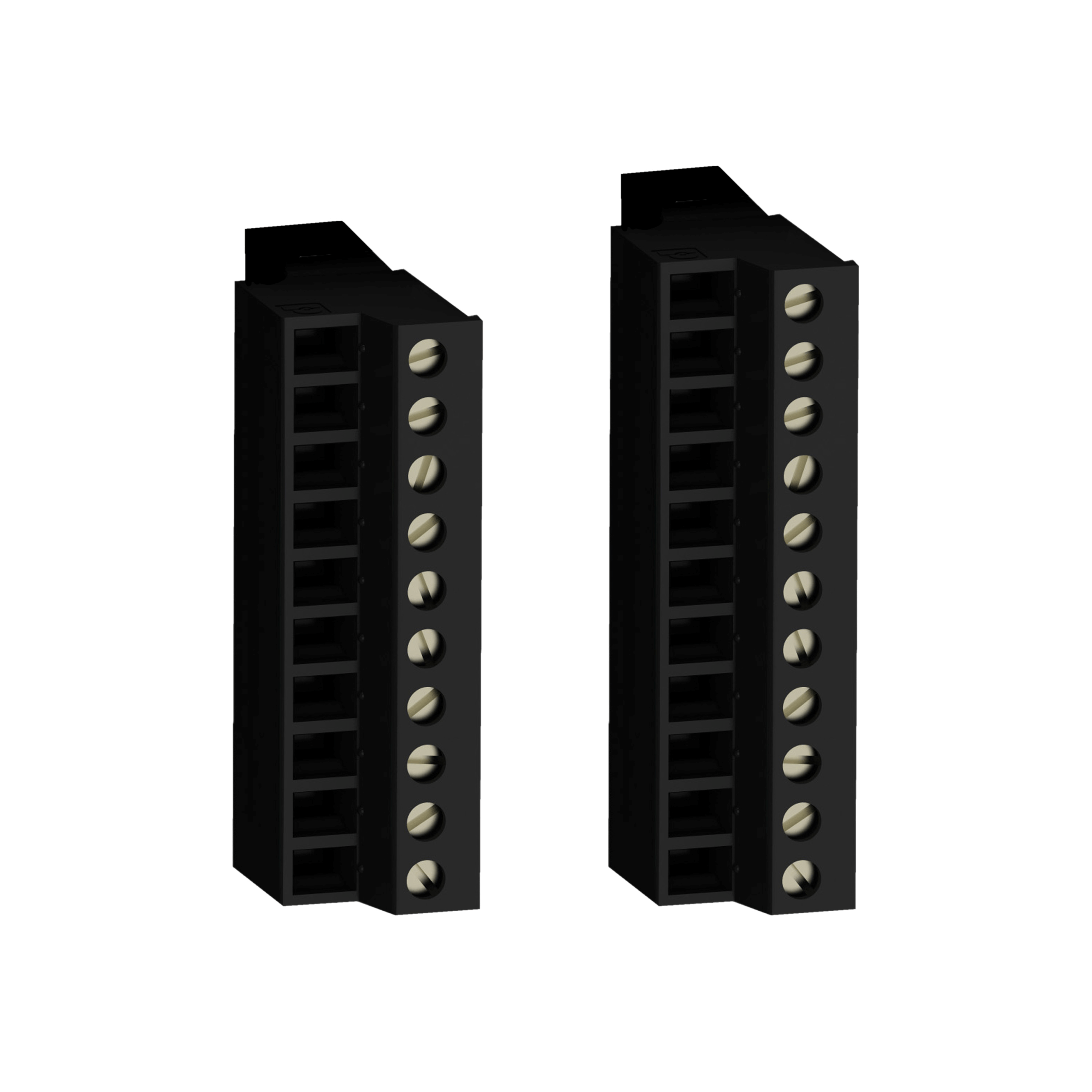

TMAT2MSETconnector set for M221M and TM3 – IO Schneider ElectricR448.52View product
TMAT2CSETconnector set for M221C – IO Schneider Electric Original price was: R1 060.00.R720.80Current price is: R720.80.View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is TM221CE40R?
TM221CE40R is the order code for TM221CE40R – TM221CE40R – Controller M221 40 IO relay Ethernet Schneider Electric. It belongs to our Programmable Logic Controllers (PLC) range. RMS-SE.Africa supplies it as an authorised Schneider Electric distributor, so it is genuine product with the manufacturer's warranty.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
