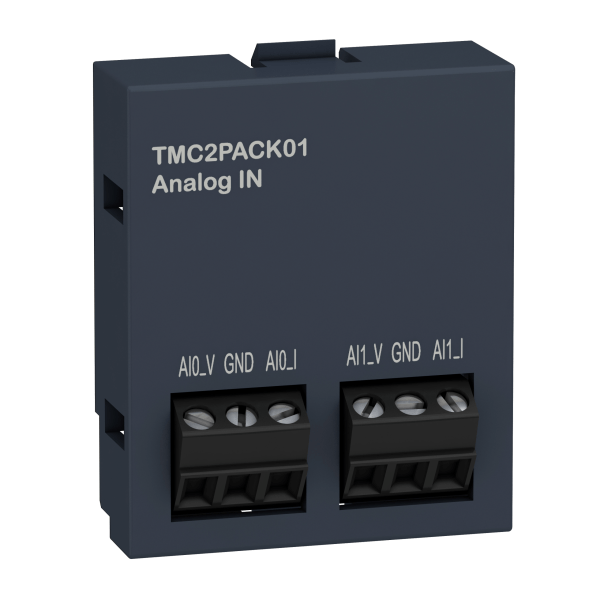

TMC2PACK01 – Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension Schneider Electric

TMC2PACK01 – Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension Schneider Electric cartridge M221 – packaging 2 analog inputs – I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling the temperature on a packaging machine. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC. Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension TMC2PACK01 – Modicon M221

TMC2PACK01 – Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extension Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Analogue range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Analogue
• Voltage: 10 v

Key Features

• Part of the Analogue range
• Suitable for 10 v applications

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
