Schneider ElectricProgrammable Logic Controllers (PLC)
TM221ME16RG – Logic controller, Modicon M221, 16 IO relay Ethernet spring Schneider Electric
Order code
R9 769.70
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Logic controller, Modicon M221, 16 IO relay Ethernet spring — Schneider Electric order code TM221ME16RG. Rated current 2 A; rated voltage 24 V; IP20; DIN rail mounting.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM221ME16RG — Logic controller, Modicon M221, 16 IO relay Ethernet spring by Schneider Electric.
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 8 discrete inputs and 8 relay ethernet spring outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 24V DC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.264kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks.
Key specifications: rated current 2 A; rated voltage 24 V; IP20; DIN rail mounting.
Ordering information
- Order code:
TM221ME16RG - Manufacturer: Schneider Electric
- Range: Modicon M221
- GTIN / EAN: 3606480611285
- Supplied: each
- Weight: 0.44 kg
- ETIM class: EC000236
- Datasheet: manufacturer datasheet for TM221ME16RG
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 2 A |
|---|---|
| Rated voltage (Ue) | Filter products by 24 V |
| Rated operational voltage | Filter products by 24 V |
| Operating Voltage | Filter products by 24V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction, Filter products by Mid Range PLC |
|---|---|
| SKU/Code/Partnumber | Filter products by TM221ME16RG |
| Iternational GTIN | Filter products by 3606480611285 |
| Mount Type | Filter products by DIN Rail |
| Connector Type | Filter products by RJ45 |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.
TM221ME16TGLogic controller, Modicon M221, 16 IO transistor PNP Ethernet spring Schneider ElectricR9 769.70View product
TM221ME16TLogic controller, Modicon M221, 16 Input/Output, transistor PNP, EthernetR9 769.70View product
TM221M16TGLogic controller, Modicon M221, 16 IO transistor PNP spring Schneider ElectricR8 793.74View product
TM221M16TLogic controller, Modicon M221, 16 IO transistor PNP Schneider ElectricR8 793.74View product
TM221C40TLogic controller, Modicon M221, 40 Input/Output, transistor PNP Schneider ElectricR11 723.29View product
TM221C24TLogic controller, Modicon M221, 24 Input/Output, transistor PNP Schneider ElectricR8 793.74View product
More in the Modicon M221 range
Same series, same mounting and the same documentation set.
TMH2GDBGraphic display, Modicon M221, unit, 240 x 160 pixels Schneider ElectricR5 862.50View product
TMC2TI2Analogue input cartridge, Modicon M221, 2 temperature inputs, I/O extensionR2 182.07View product
TMC2SL1Serial line cartridge, Modicon M221, 1 communication extension Original price was: R1 969.00.R1 338.92Current price is: R1 338.92.View product
TMC2PACK01Analogue input cartridge, Modicon M221, packaging 2 analog inputs, I/O extensionR2 398.75View product
TMC2HOIS01Analogue input cartridge, Modicon M221, hoisting 2 analog I/O extensionR2 398.75View product
TMC2CONV01Serial line cartridge, Modicon M221, conveying 1 I/O extensionR2 398.75View product
TMC2AQ2VAnalogue output cartridge, Modicon M221, 2 analog voltage outputs, I/O extension Original price was: R1 969.00.R1 338.92Current price is: R1 338.92.View product
TMC2AQ2CAnalogue output cartridge, Modicon M221, 2 analog current outputs, I/O extension Original price was: R1 969.00.R1 338.92Current price is: R1 338.92.View product
Similar items

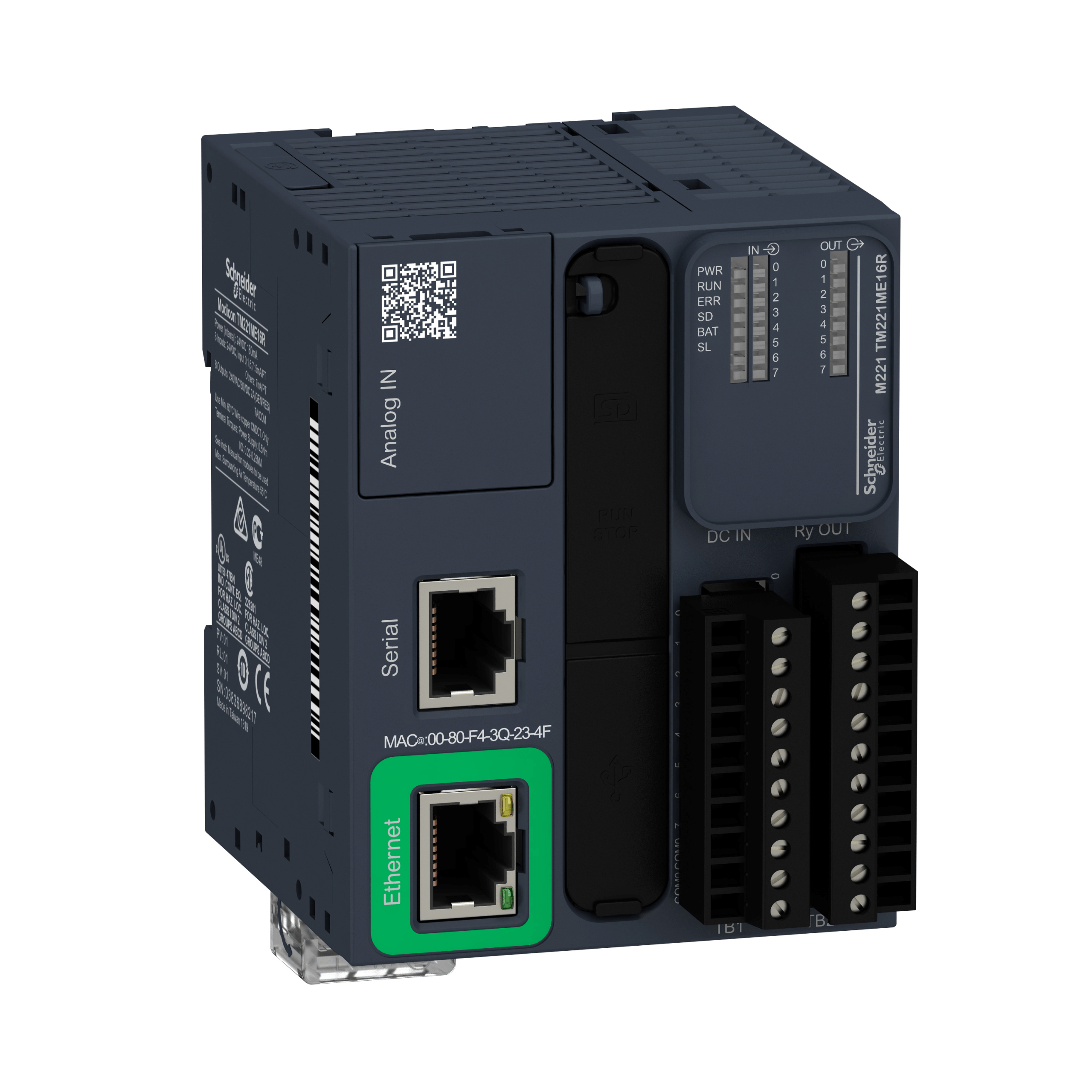

TM221ME16RLogic controller, Modicon M221, 16 Input/Output, transistor PNP, R Schneider ElectricR9 769.70View product

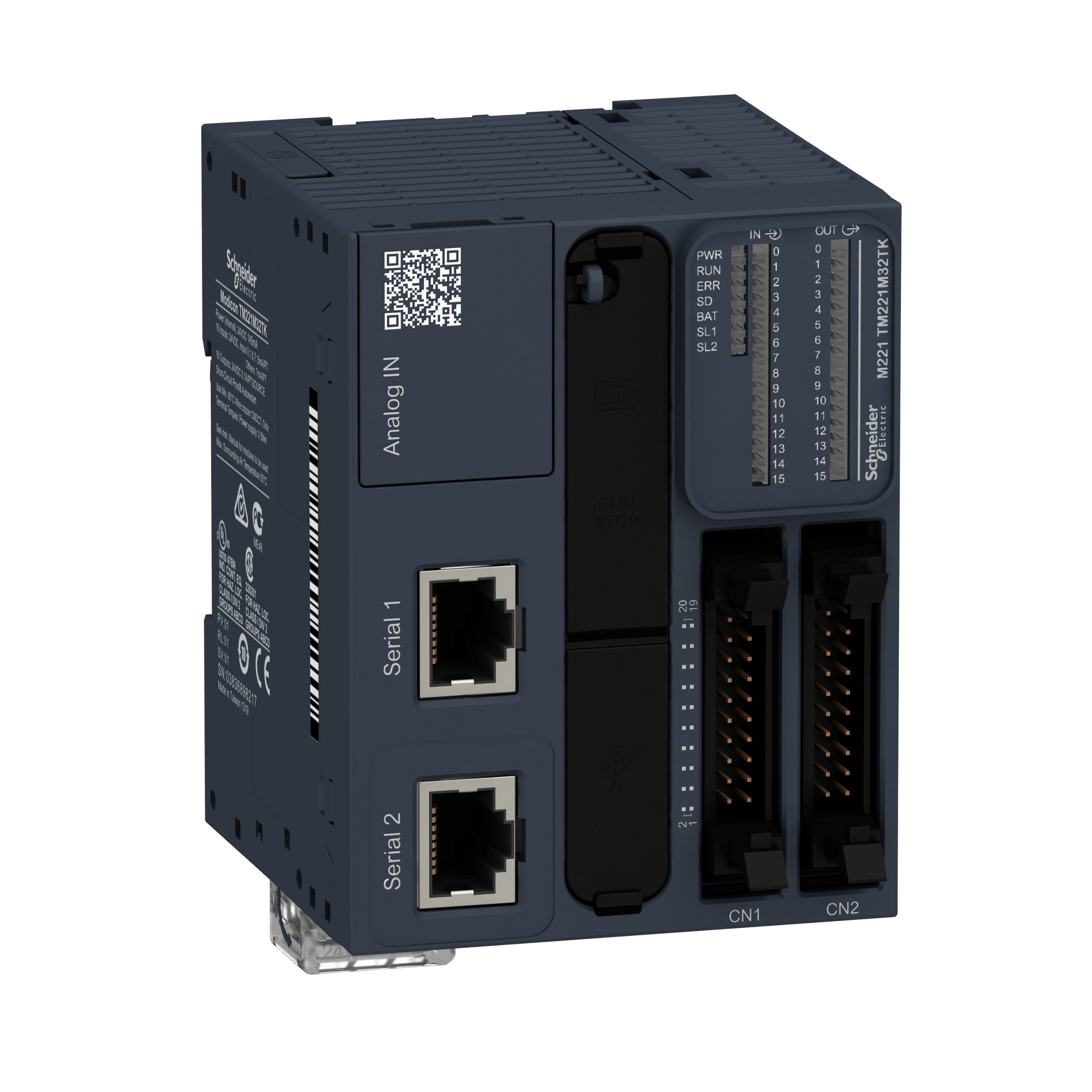

TM221M32TKLogic controller, Modicon M221, 32 IO transistor PNP Schneider ElectricR9 769.70View product
