Schneider ElectricProgrammable Logic Controllers (PLC)

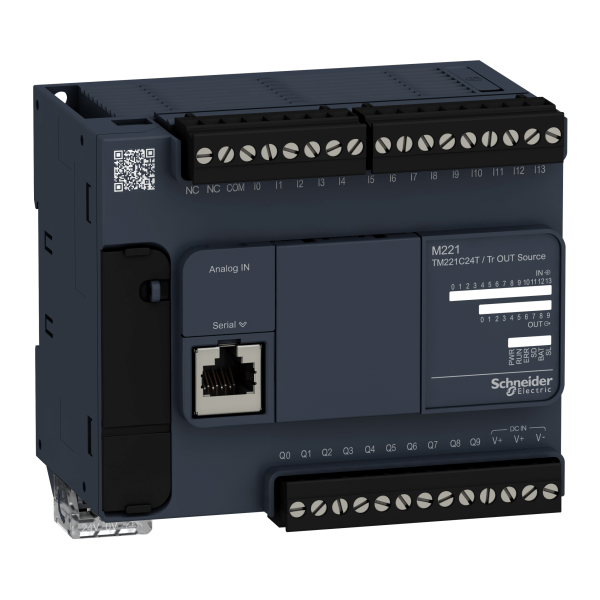

TM221C24T – Logic controller, Modicon M221, 24 Input/Output, transistor PNP | Schneider Electric
Order code
List R8 793.74 Your price R5 979.74
Per unit · volume pricing available on request
excl. VAT R6 876.70 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Logic controller, Modicon M221, 24 Input/Output, transistor PNP — Schneider Electric order code TM221C24T. Rated current 5 A; rated voltage 24 V; IP20; DIN rail mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM221C24T — Logic controller, Modicon M221, 24 Input/Output, transistor PNP by Schneider Electric. Listed under Programmable Logic Controllers (PLC) on the Schneider Electric catalogue at RMS-SE.Africa.
About TM221C24T
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete, 4 fast inputs, 10 transistor, 2 fast outputs with PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks.
TM221C24T key specifications
Key specifications: rated current 5 A; rated voltage 24 V; IP20; DIN rail mounting.
Ordering information for TM221C24T
- Order code:
TM221C24T - Manufacturer: Schneider Electric
- Range: Modicon M221
- GTIN / EAN: 3606480648724
- Supplied: each
- Weight: 0.601 kg
- ETIM class: EC000236
- Datasheet: manufacturer datasheet for TM221C24T
About the Modicon M221 range
Modicon M221 is a Schneider Electric range with 39 references listed on RMS-SE.Africa, from 1 A to 5 A.
TM221C24T — frequently asked questions
What is the rated current of TM221C24T?
TM221C24T is rated 5 A.
Where is the datasheet for TM221C24T?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is TM221C24T a genuine Schneider Electric product?
Yes. TM221C24T is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | TM221C24T – Logic controller, Modicon M221, 24 Input/Output, transistor PNP Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Modicon M221 |
| GTIN / EAN | 3606480648724 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000236 |
Electrical ratings
| Rated current (Iu) | Filter products by 5 A |
|---|---|
| Rated voltage (Ue) | Filter products by 24 V |
| Operating Voltage | Filter products by 24V |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction, Filter products by Mid Range PLC |
|---|---|
| SKU/Code/Partnumber | TM221C24T |
| Iternational GTIN | 3606480648724 |
| Connector Type | Filter products by RJ45 |
