Schneider ElectricMiniature Circuit Breakers (MCB's)
M9R41225 – Multi9 – GFP – RCCB – 2P – 25A – class A SI – 480Y/277 V – 26 mA instantaneous Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R3 843.00
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Multi9 – GFP – RCCB – 2P – 25A – class A SI – 480Y/277 V – 26 mA instantaneous — Schneider Electric order code M9R41225. Rated current 25 A; 2P; breaking capacity 10 kA; rated voltage 277 V.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
M9R41225 — Multi9 – GFP – RCCB – 2P – 25A – class A SI – 480Y/277 V – 26 mA instantaneous, a miniature circuit breaker from the Schneider Electric C60 UL/CSA/IEC range.
This Multi GFP product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, 26mA earth leakage sensitivity and A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
Key specifications: rated current 25 A; 2P; breaking capacity 10 kA; rated voltage 277 V; IP20; DIN rail mounting.
Ordering information
- Order code:
M9R41225 - Manufacturer: Schneider Electric
- Range: C60 UL/CSA/IEC
- GTIN / EAN: 3606481198471
- Supplied: each
- Weight: 0.216 kg
- ETIM class: EC000003
- Datasheet: manufacturer datasheet for M9R41225
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 2P |
|---|---|
| Rated current (Iu) | Filter products by 25 A |
| Rated voltage (Ue) | Filter products by 277 V |
| Max Break Capacity | Filter products by 10 kA |
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by M9R41225 |
| Iternational GTIN | Filter products by 3606481198471 |
More in the C60 UL/CSA/IEC range
Same series, same mounting and the same documentation set.
M9U21210Multi9 – C60H-DC – MCB – 2P – 10 A – C Curve – 500 V DC – 10 kA Schneider ElectricR1 228.97View product
M9U21103Multi9 – C60H-DC – MCB – 1P – 3 A – C Curve – 250 V DC – 10 kA Schneider ElectricR1 228.97View product
M9F43320Multi 9 – C60BP – MCB – 3P – 20 A – D Curve – 480Y/277 V – 10 kA – UL 489 Schneider ElectricR3 452.22View product- M9F43315Multi 9 – C60BP – MCB – 3P – 15 A – D Curve – 480Y/277 V – 10 kA – UL 489 Schneider ElectricR3 452.22View product
- M9F43304Multi 9 – C60BP – MCB – 3P – 4 A – D Curve – 480Y/277 V – 10 kA – UL 489 Schneider ElectricR1 035.70View product
M9F43220Multi 9 – C60BP – MCB – 2P – 20 A – D Curve – 480Y/277 V – 10 kA – UL 489 Schneider ElectricR2 374.73View product- M9F43215Multi 9 – C60BP – MCB – 2P – 15 A – D Curve – 480Y/277 V – 10 kA – UL 489 Schneider ElectricR2 374.73View product
- M9F43202Multi 9 – C60BP – MCB – 2P – 2 A – D Curve – 480Y/277 V – 10 kA – UL 489 Schneider ElectricR712.43View product
Similar items

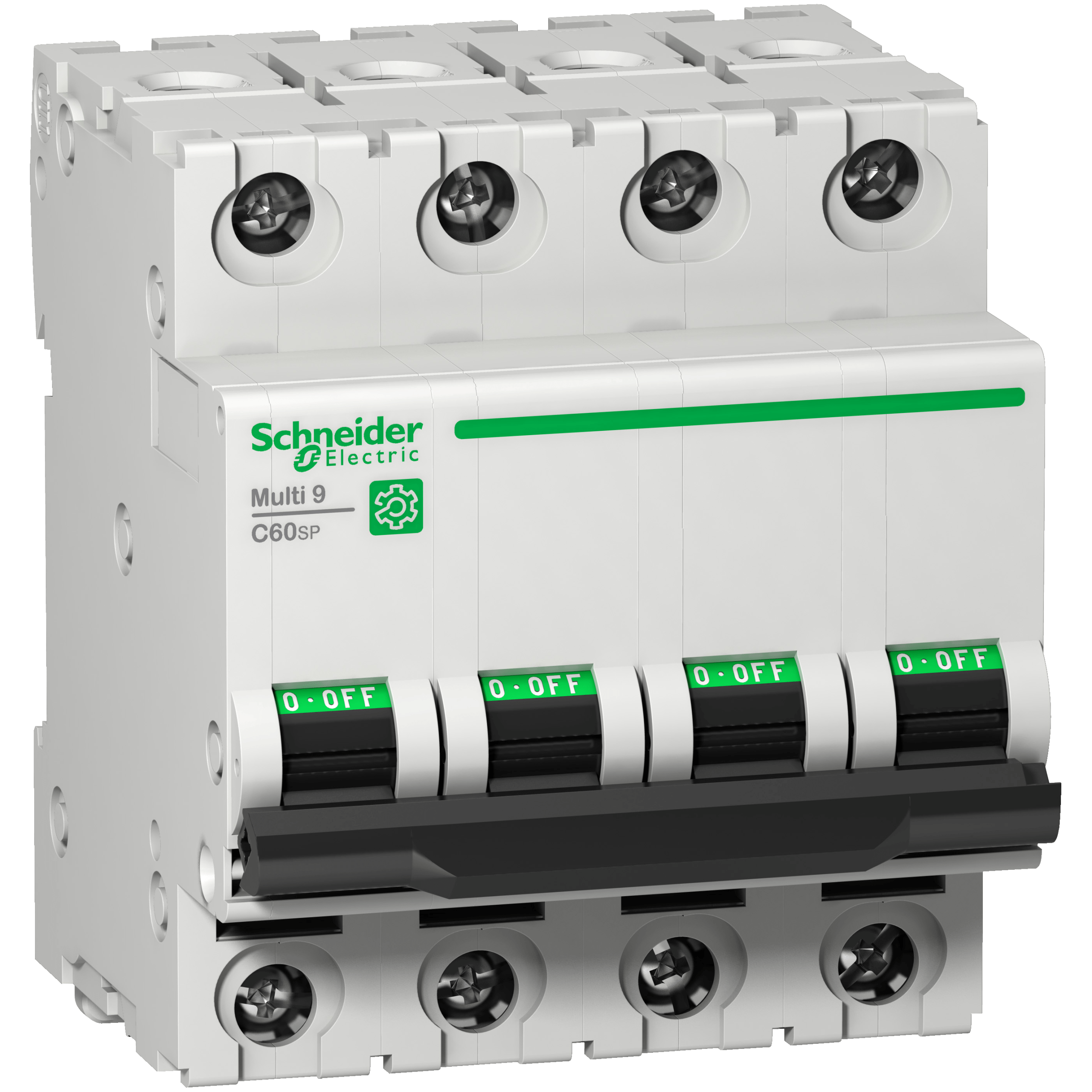

M9F22402Multi9 – C60SP – MCB – 4P – 2 A – C Curve – 480Y/277 V – 10 kA – UL 1077R5 018.61View product
M9F22203Multi9 – C60SP – MCB – 2P – 3 A – C Curve – 480Y/277 V – 10 kA – UL 1077R2 374.73View product- M9F22202Multi9 – C60SP – MCB – 2P – 2 A – C Curve – 480Y/277 V – 10 kA – UL 1077R2 374.73View product
GB2DB07Thermal magnetic circuit breaker, TeSys GB2, 2P, 2 A, Icu 15 kA@415 V Schneider ElectricR1 605.12View product
More in Miniature Circuit Breakers (MCB's)

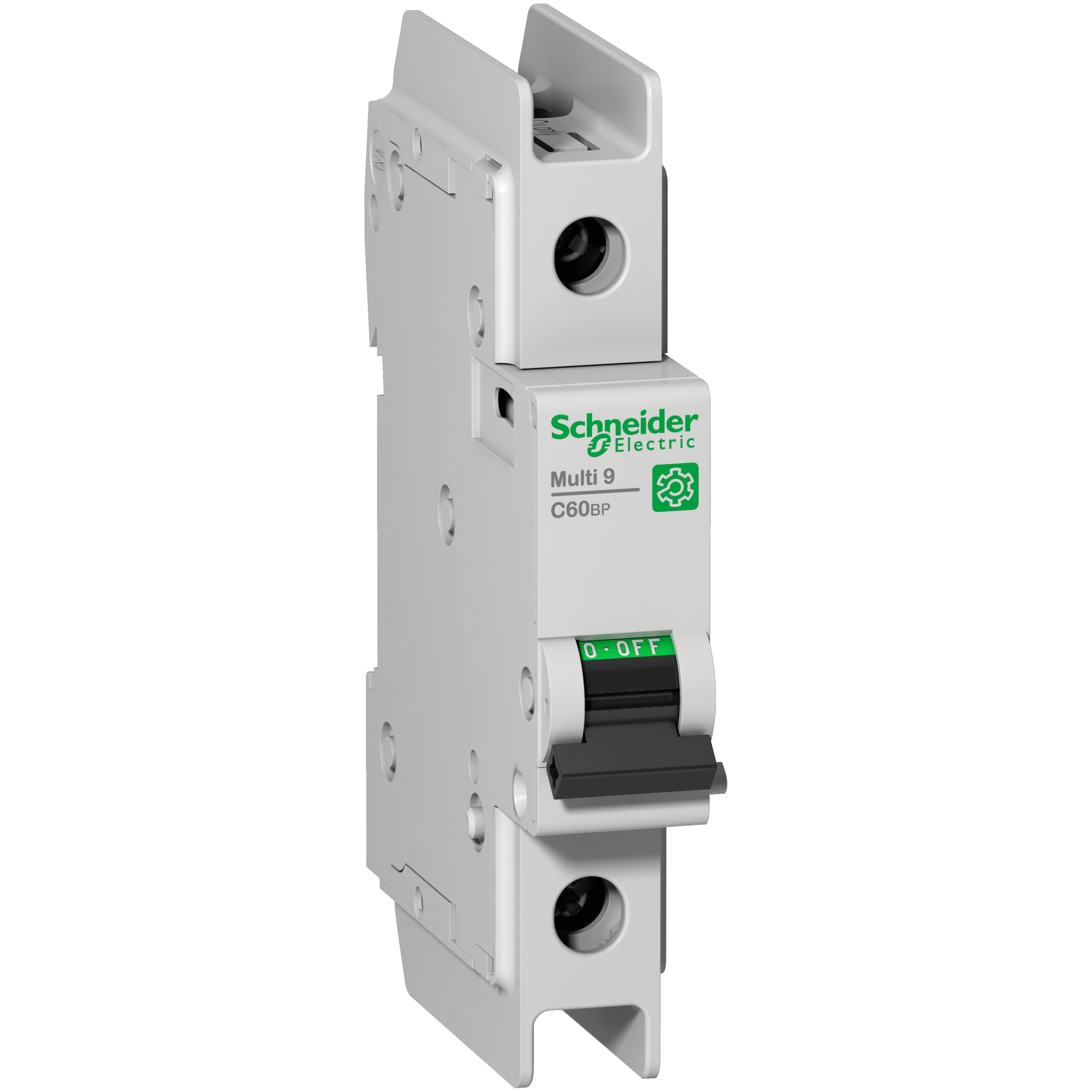

M9F43102Multi 9 – C60BP – MCB – 1P – 2 A – D Curve – 277 V – 10 kA – UL 489 Schneider ElectricR1 117.23View product
EZ9S16463Easy9 switch disconnector – 4P – 63 A – 400 V Schneider Electric Original price was: R227.00.R154.36Current price is: R154.36.View product

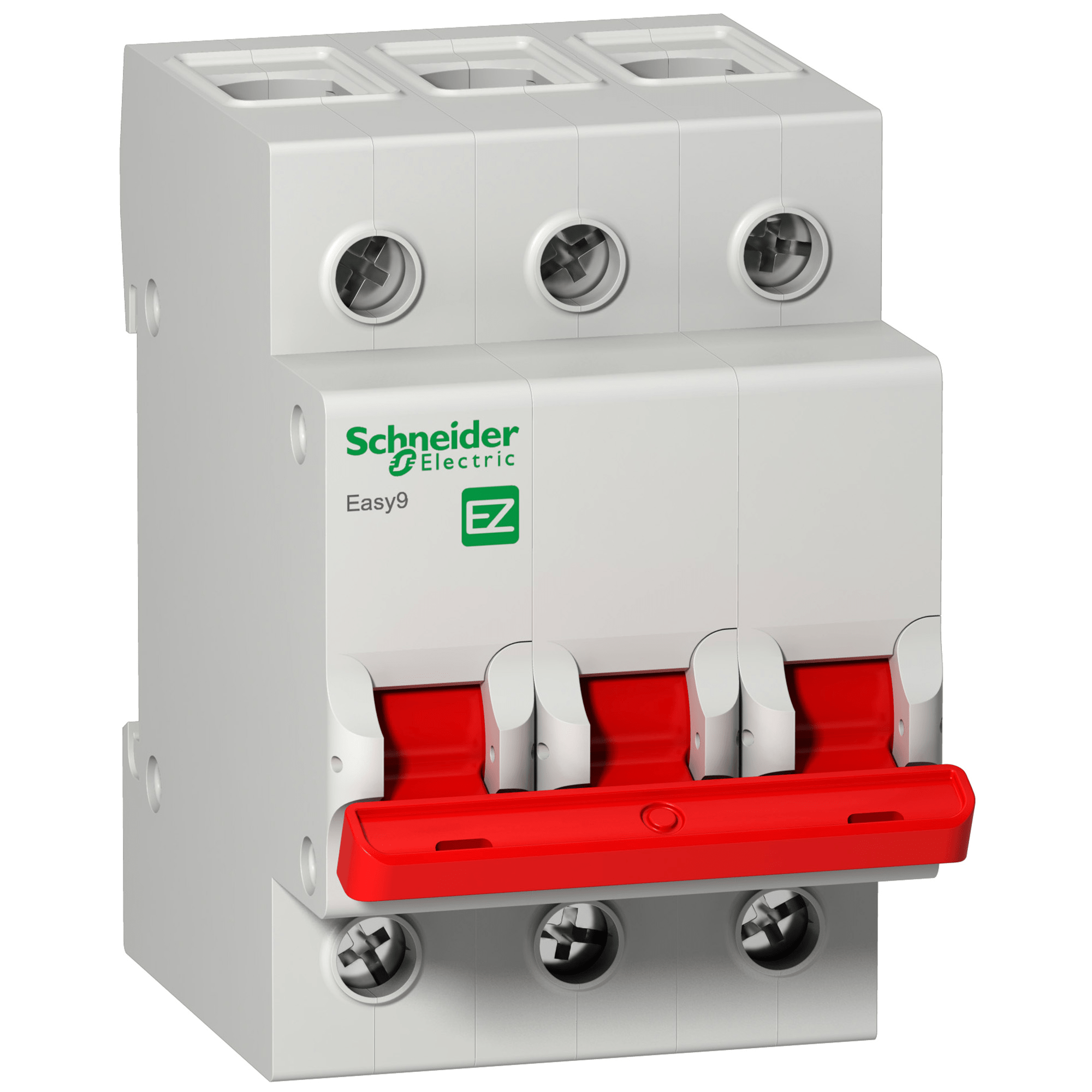

EZ9S16363Easy9 switch disconnector – 3P – 63 A – 400 V Schneider Electric Original price was: R216.00.R146.88Current price is: R146.88.View product
EZ9S16263Easy9 switch disconnector – 2P – 63 A – 400 V Schneider Electric Original price was: R143.00.R97.24Current price is: R97.24.View product

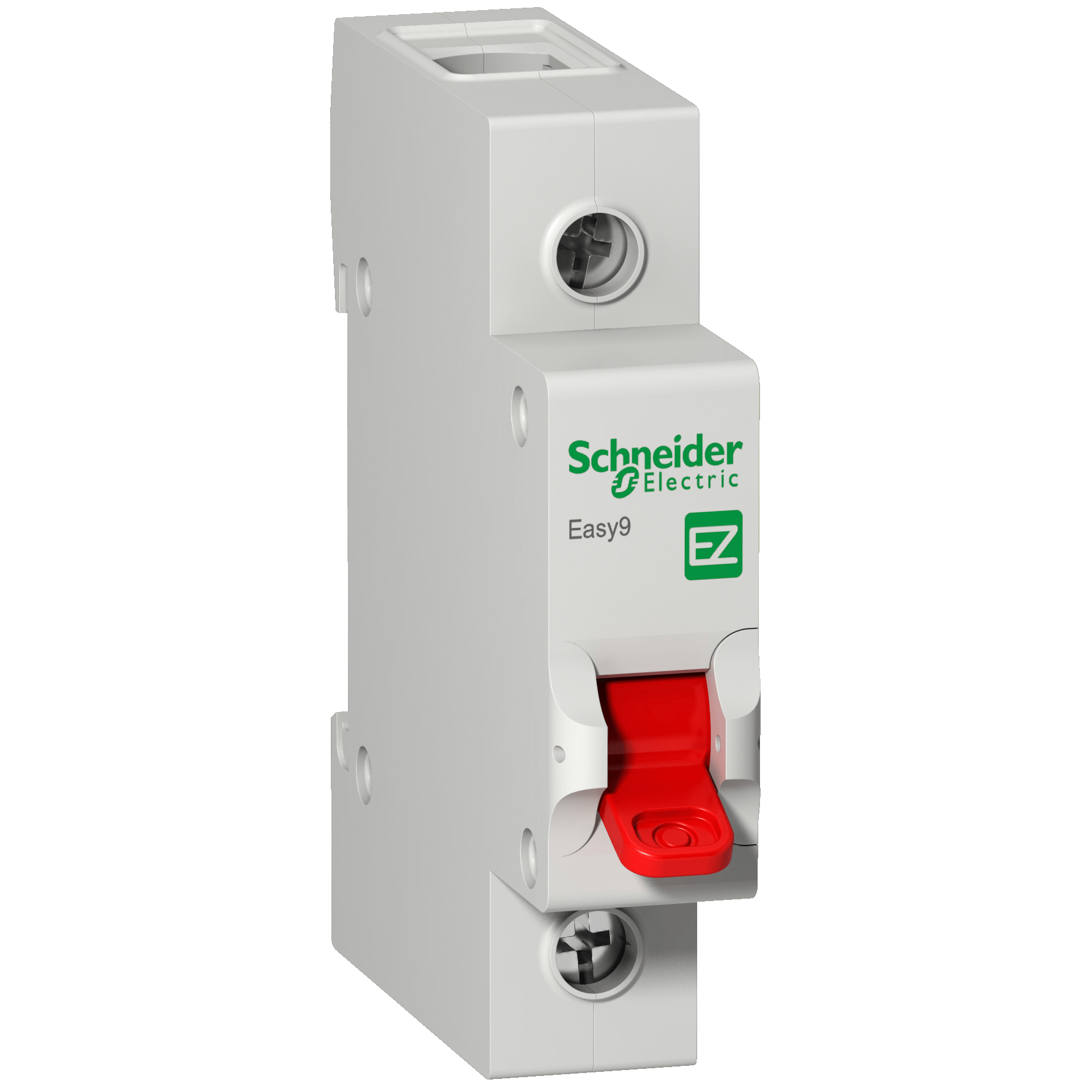

EZ9S16163Easy9 switch disconnector – 1P – 63 A – 230 V Schneider Electric Original price was: R83.00.R56.44Current price is: R56.44.View product

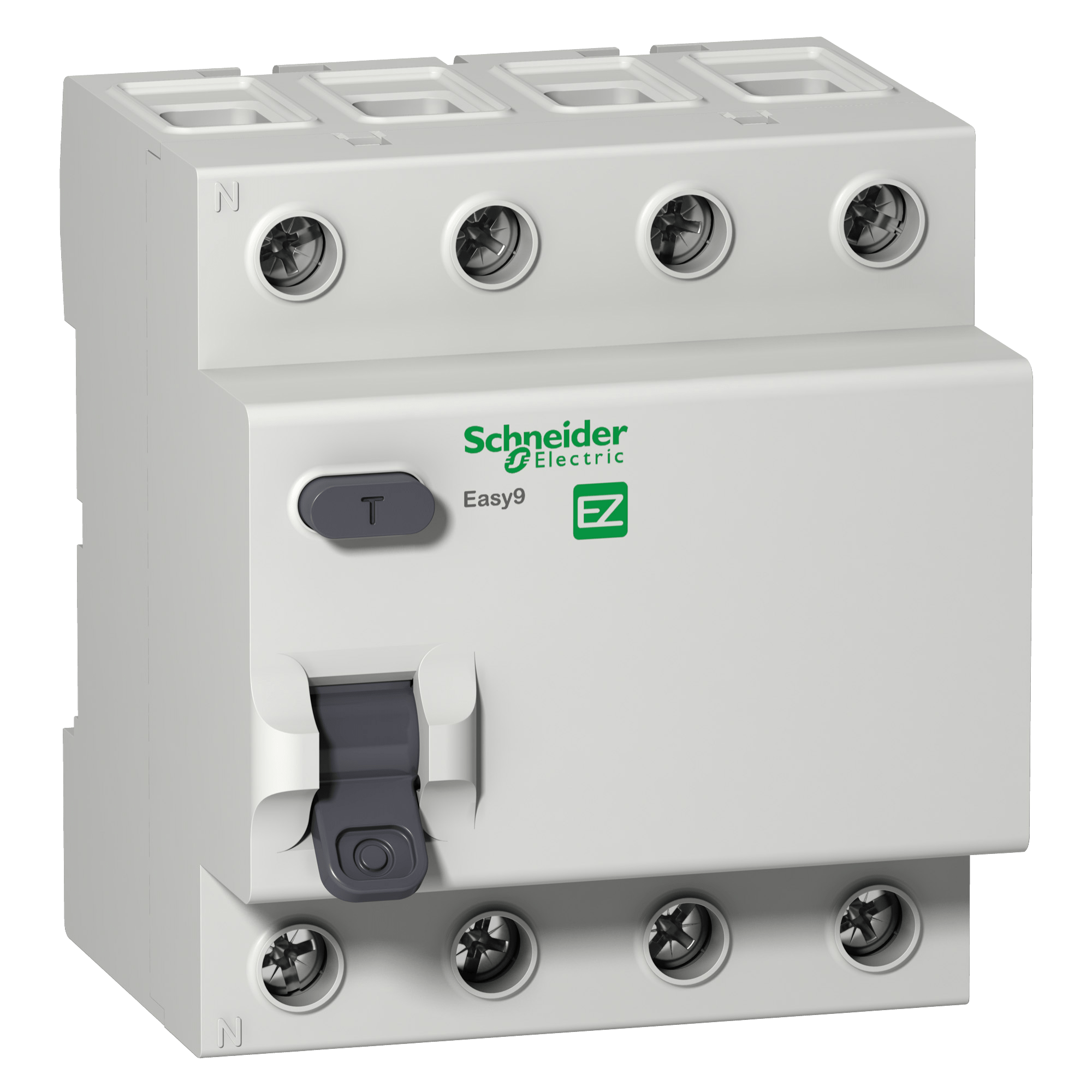

EZ9R03463Easy9 Residual Current Circuit Breaker – 4P – 63 A – 30 mA – AC type – 400 V Schneider Electric Original price was: R799.00.R543.32Current price is: R543.32.View product

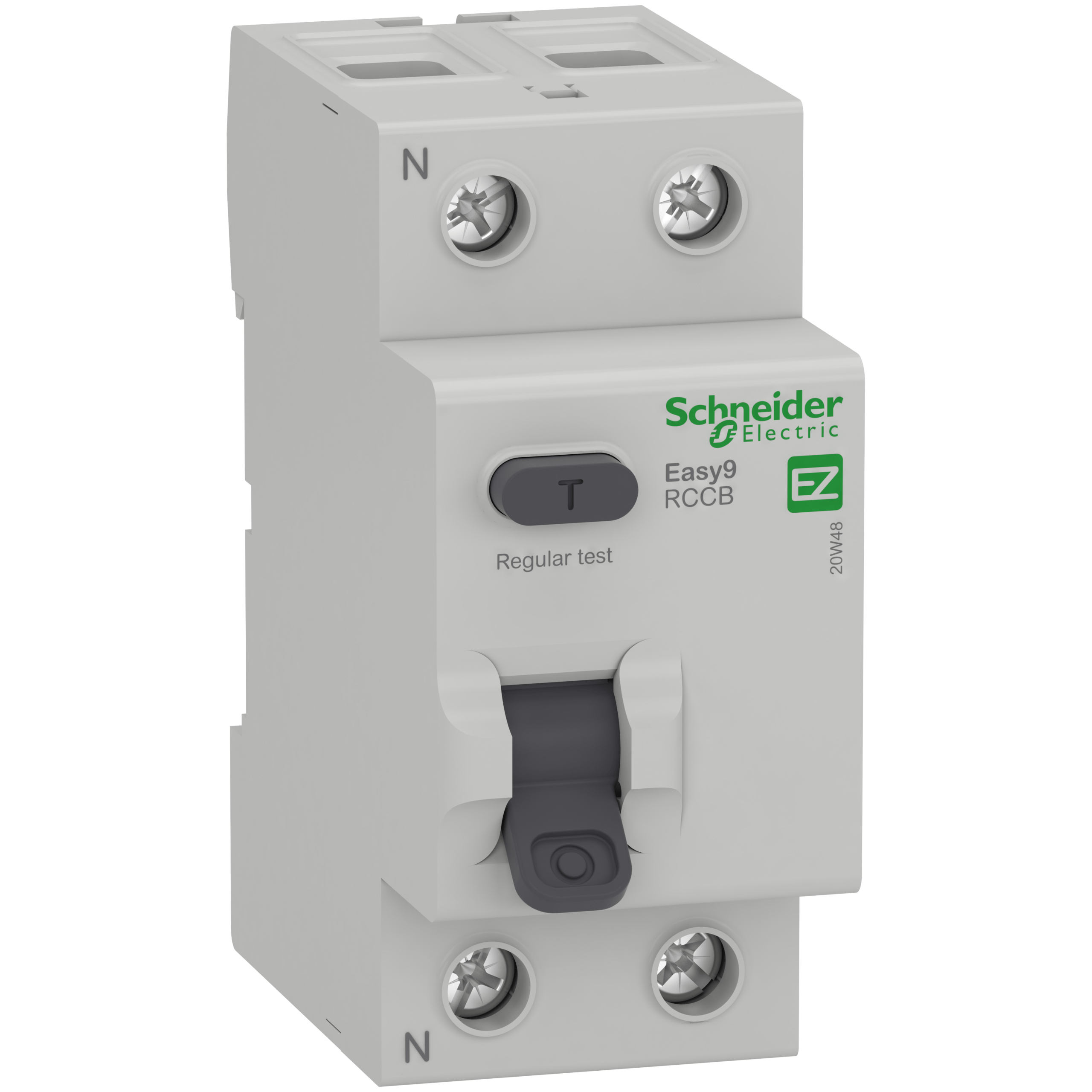

EZ9R03263Easy9 Residual Current Circuit Breaker – 2P – 63 A – 30 mA – AC type – 230 V Schneider Electric Original price was: R373.00.R253.64Current price is: R253.64.View product
