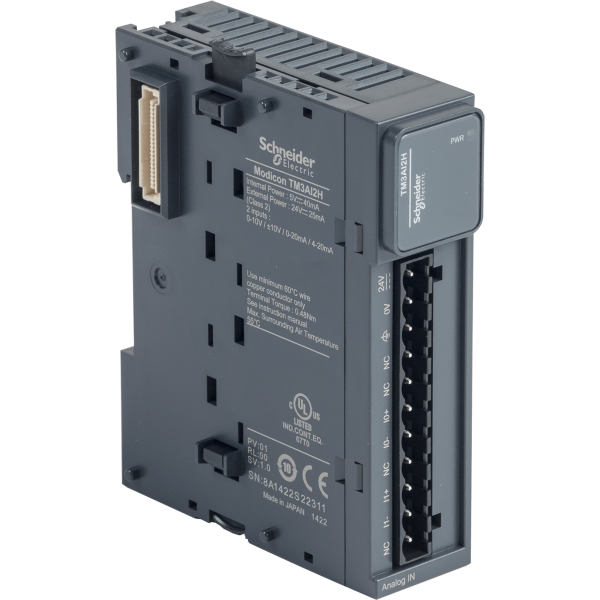

TM3AI2H – Analog input module, Modicon TM3, 2 inputs high resolution (screw) 24 VDC | Schneider Electric
Order code
List R5 288.00 Your price R3 595.84
Per unit · volume pricing available on request
excl. VAT R4 135.22 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Analog input module, Modicon TM3, 2 inputs high resolution (screw) 24 VDC — Schneider Electric order code TM3AI2H. Rated voltage 24 V DC; IP20.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM3AI2H — Analog input module, Modicon TM3, 2 inputs high resolution (screw) 24 VDC, a human-machine interface by Schneider Electric. Listed under Human-Machine Interfaces (HMI) on the Schneider Electric catalogue at RMS-SE.Africa.
About TM3AI2H
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 2 inputs with 15bit + sign and 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC via bus connector no load, 40mA at 5V DC via bus connector full load, 25mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism.
TM3AI2H key specifications
Key specifications: rated voltage 24 V DC; IP20.
Ordering information for TM3AI2H
- Order code:
TM3AI2H - Manufacturer: Schneider Electric
- Range: Modicon TM3
- GTIN / EAN: 3606480648885
- Supplied: each
- Weight: 0.22 kg
- ETIM class: EC001420
- Datasheet: manufacturer datasheet for TM3AI2H
About the Modicon TM3 range
Modicon TM3 is a Schneider Electric range with 60 references listed on RMS-SE.Africa, from 2 A to 1200 A.
TM3AI2H — frequently asked questions
Where is the datasheet for TM3AI2H?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is TM3AI2H a genuine Schneider Electric product?
Yes. TM3AI2H is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by TM3AI2H – Analog input module, Modicon TM3, 2 inputs high resolution (screw) 24 VDC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Modicon TM3 |
| GTIN / EAN | 3606480648885 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001420 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 24 V DC |
|---|---|
| Operating Voltage | Filter products by 24 VDC |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Human-Machine Interface basic, Filter products by Power Monitoring Systems |
|---|---|
| SKU/Code/Partnumber | Search products for TM3AI2H |
| Iternational GTIN | 3606480648885 |
