Schneider ElectricHuman-Machine Interfaces (HMI)

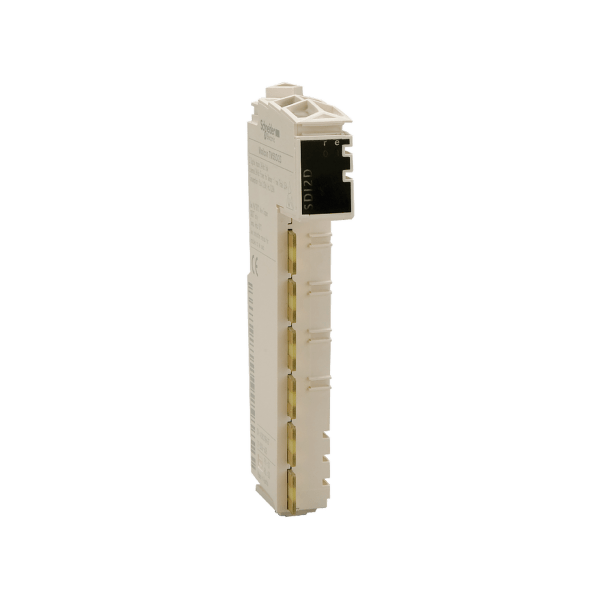

TM5SDI12D – Discrete input module, Modicon TM5, digital 12I, 24 V DC sink, 1 wire | Schneider Electric
Order code
List R5 911.20 Your price R4 019.62
Per unit · volume pricing available on request
excl. VAT R4 622.56 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Discrete input module, Modicon TM5, digital 12I, 24 V DC sink, 1 wire — Schneider Electric order code TM5SDI12D. Rated voltage 24 V; IP20; DIN rail mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Rated voltage24 V2 options
- 10 V
- 24 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM5SDI12D — Discrete input module, Modicon TM5, digital 12I, 24 V DC sink, 1 wire, a human-machine interface by Schneider Electric. Listed under Human-Machine Interfaces (HMI) on the Schneider Electric catalogue at RMS-SE.Africa.
About TM5SDI12D
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The digital input module provides 12 inputs with sink (positive) logic. It provides a rated supply voltage of 24V DC, a current consumption of 36mA at 5V DCbus, 73mA at 24V DC all inputs on, a maximum power dissipation of 1.93W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is furnished with single wire for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508.
TM5SDI12D key specifications
Key specifications: rated voltage 24 V; IP20; DIN rail mounting.
Ordering information for TM5SDI12D
- Order code:
TM5SDI12D - Manufacturer: Schneider Electric
- Range: Modicon TM5
- GTIN / EAN: 3595864074450
- Supplied: each
- Weight: 0.036 kg
- ETIM class: EC001419
- Datasheet: manufacturer datasheet for TM5SDI12D
About the Modicon TM5 range
Modicon TM5 is a Schneider Electric range with 10 references listed on RMS-SE.Africa, from 5 A to 10 A.
TM5SDI12D — frequently asked questions
Where is the datasheet for TM5SDI12D?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is TM5SDI12D a genuine Schneider Electric product?
Yes. TM5SDI12D is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by TM5SDI12D – Discrete input module, Modicon TM5, digital 12I, 24 V DC sink, 1 wire Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Modicon TM5 |
| GTIN / EAN | 3595864074450 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001419 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 24 V |
|---|
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Human-Machine Interface basic, Filter products by Power Monitoring Systems |
|---|---|
| SKU/Code/Partnumber | Search products for TM5SDI12D |
| Iternational GTIN | 3595864074450 |
