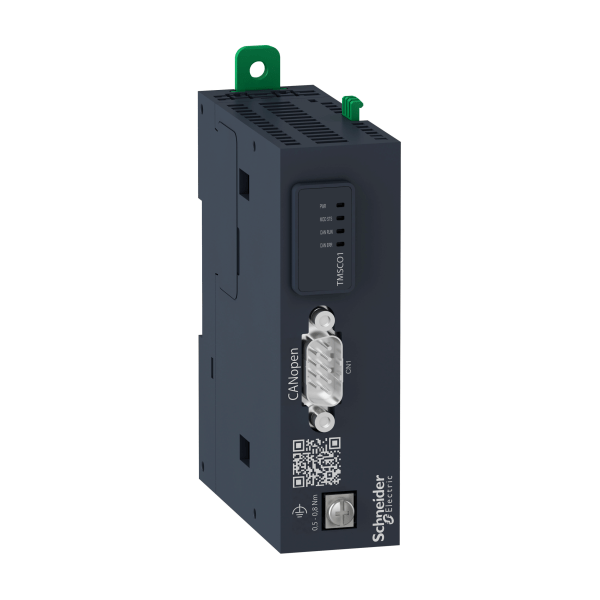

TMSCO1 – Smart communication module, Modicon M262, CANopen, 1 SubD9 Schneider Electric
Order code
R4 796.54
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – Smart communication module, Modicon M262, CANopen, 1 SubD9 – Modicon M262 | TMSCO1
Accessories & add-ons 4
- remote terminal – ATS22 – for soft starter for asynchronous motor – IP65 Schneider ElectricVW3G22102R4 647.58Add
- remote terminal – ATS22 – for soft starter for asynchronous motor – IP54 Schneider ElectricVW3G22101R3 982.65Add
- plate for mounting on symmetrical DIN rail – for variable speed drive Schneider ElectricVW3A9804R1 412.82Add
- kit for flush-mounting in dust and damp proof enclosure – Altivar Process size 6 Schneider ElectricVW3A95116R20 150.83Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TMSCO1 – Smart communication module, Modicon M262, CANopen, 1 SubD9 Schneider Electric This smart communication module for Modicon M262 logic/motion controllers is designed to provide 1 CANopen master access to the controllers. TMSCO1 smart communication module integrates M262 controllers in CANopen architectures, ensures communication with devices. It figures one CANopen port for CANopen master communication and supports up to 63 slaves. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. CANopen link can be configured between 20kbps and 1Mbit/s and supports up to 63 slaves. It is possible to connect one CANopen smart communication modules on a logi/motion controller, the power supply is embedded on the communication bus. It measures 30mm width, 88mm depth, and 100mm height. It weighs 0.150kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSCO1 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services. Smart communication module, Modicon M262, CANopen, 1 SubD9 TMSCO1 – Modicon M262
TMSCO1 – Smart communication module, Modicon M262, CANopen, 1 SubD9 Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the Smart range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: Smart
- Mount Type: DIN Rail
Key Features
- Part of the Smart range
- DIN Rail installation format
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Metering | Power Monitoring Systems | Human-Machine Interface basic
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by TMSCO1 – Smart communication module, Modicon M262, CANopen, 1 SubD9 Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Smart |
Other specifications
| Related Categories | Filter products by Metering, Filter products by Human-Machine Interface basic, Filter products by Power Monitoring Systems |
|---|---|
| SKU/Code/Partnumber | Filter products by TMSCO1 |
| Iternational GTIN | Filter products by 3606489604240 |
| Mount Type | Filter products by DIN Rail |
