Schneider ElectricEnergy Meters
METSEPM3200 – PM3200 power meter Schneider Electric
Order code
Original price was: R6 516.00.R4 430.88Current price is: R4 430.88.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
PM3200 power meter — Schneider Electric order code METSEPM3200. Rated current 1 A; rated voltage 277 V.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
METSEPM3200 — PM3200 power meter from the Schneider Electric PM3000 series range.
PM3200 DIN mount energy meter with a 128 by 96 pixel backlit, LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor, Apparent Power and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 277VAC, 173 to 480VAC and 100 to 300VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations. Direct measurement range is 50 to 570VAC, with an external VT 570 to 999000VAC. The range of measurement voltage between Phases is 80 to 570VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 50 to 330VAC at 45 to 65 Hz. This meter has no communication input or output capability. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.76in (70 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
Key specifications: rated current 1 A; rated voltage 277 V.
Ordering information
- Order code:
METSEPM3200 - Manufacturer: Schneider Electric
- Range: PM3000 series
- GTIN / EAN: 3606480481581
- Supplied: each
- Weight: 0.384 kg
- Datasheet: manufacturer datasheet for METSEPM3200
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by METSEPM3200 – PM3200 power meter Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by PM3000 series |
| GTIN / EAN | Filter products by 3606480481581 |
| Range | Filter products by PM3000 series |
| Lifecycle status | Filter products by Current |
Electrical ratings
| Rated current (Iu) | Filter products by 1 A |
|---|---|
| Rated voltage (Ue) | Filter products by 277 V |
| Rated operational voltage | Filter products by 277 V |
| Operating Voltage | Filter products by 277VAC |
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction, Filter products by Modular Multimeters |
|---|---|
| SKU/Code/Partnumber | Filter products by METSEPM3200 |
| Iternational GTIN | Filter products by 3606480481581 |
Similar items

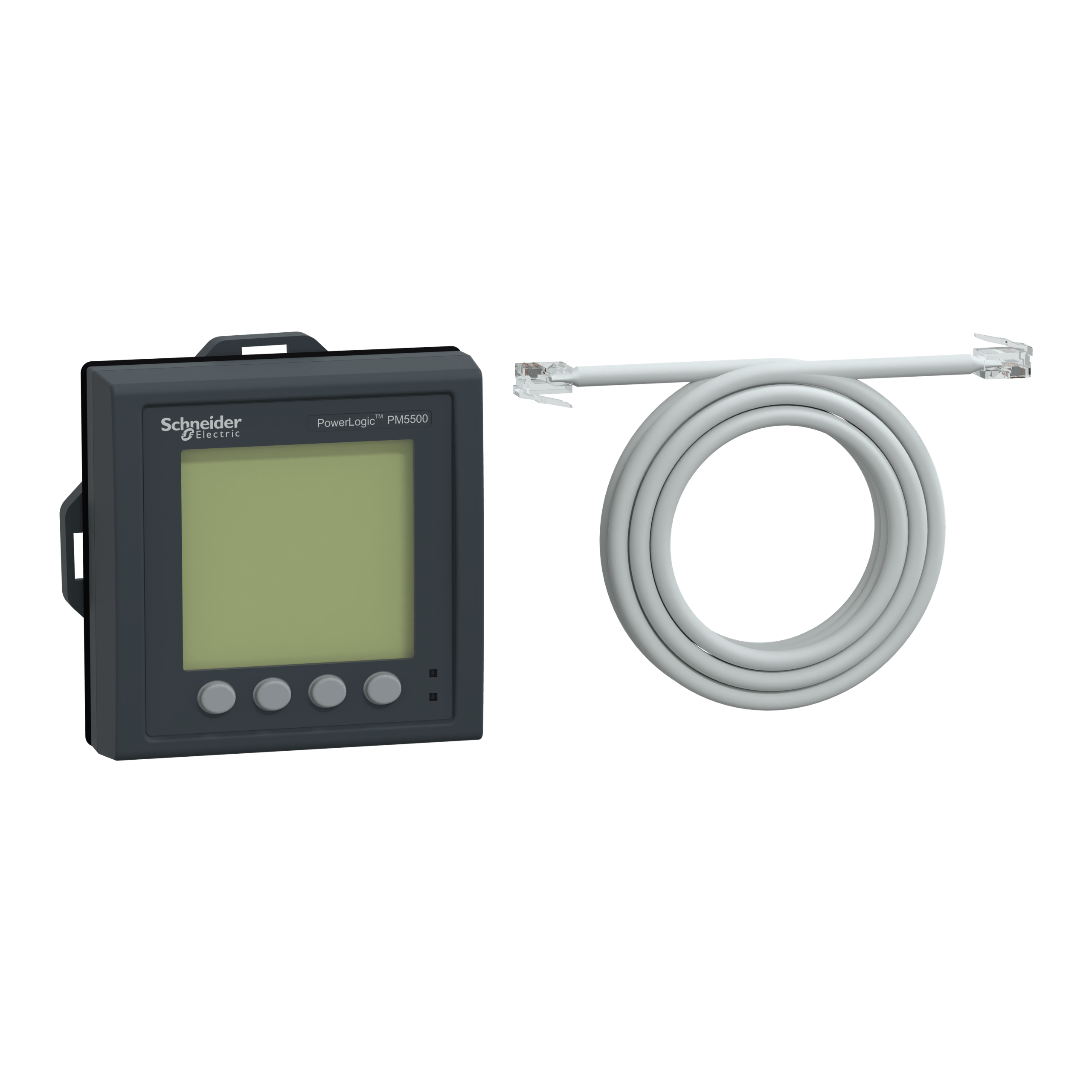

METSEPM5RDPower Logic PM5000 – 5RD Remote display 96 x 96 mm monochrome Original price was: R6 701.00.R4 556.68Current price is: R4 556.68.View product

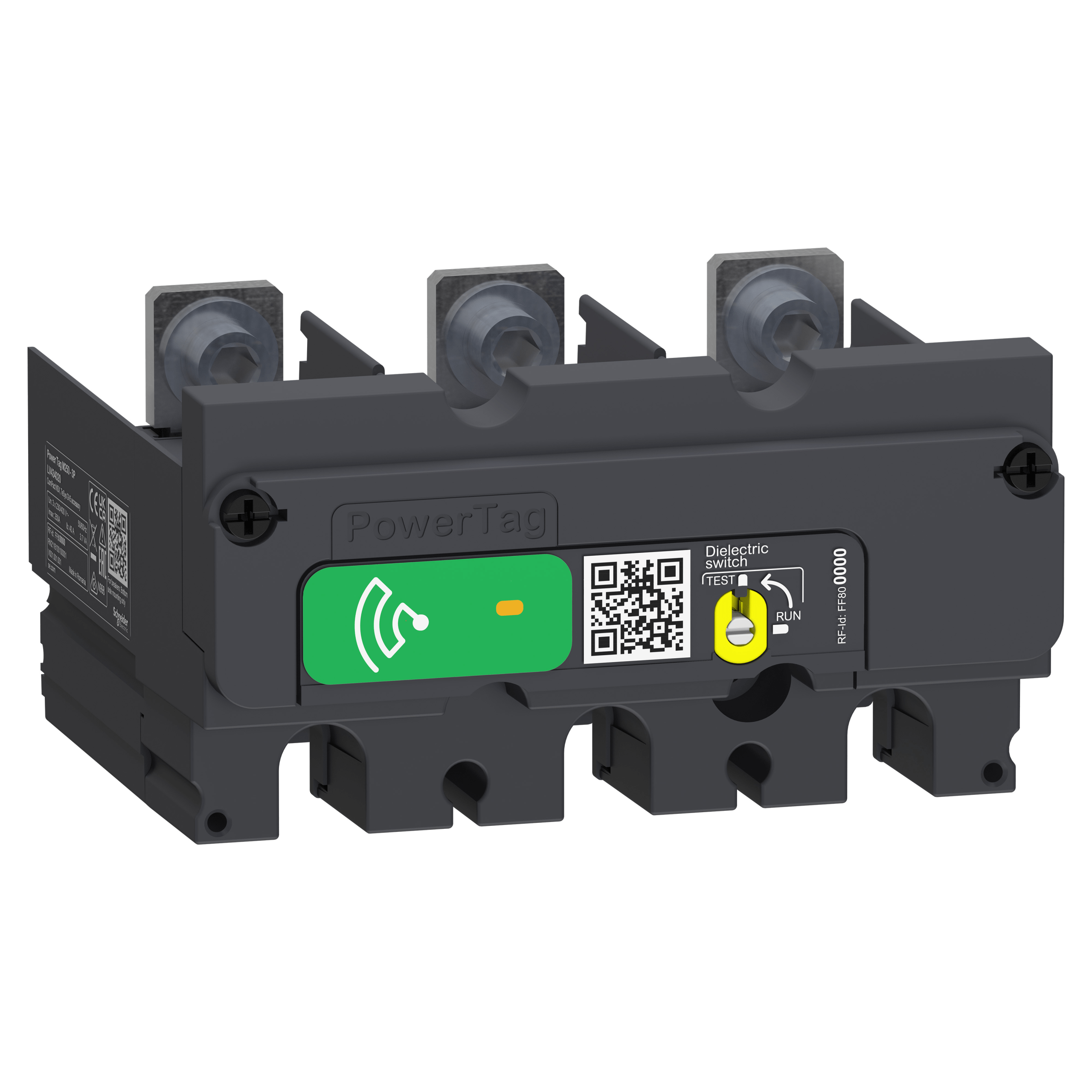

LV434020energy sensor, PowerTag Monoconnect 250A 3P Original price was: R8 013.00.R5 448.84Current price is: R5 448.84.View product
METSEPM5100PM5100 Meter, without communication, up to 15th H, 1DO 33 alarms Schneider Electric Original price was: R8 093.00.R5 503.24Current price is: R5 503.24.View product
METSEPM5110PM5110 Meter, modbus, up to 15th H, 1DO 33 alarms Schneider Electric Original price was: R9 248.00.R6 288.64Current price is: R6 288.64.View product
METSEPM5310METSEPM5310 – PM5310 Meter, modbus, up to 31st H, 256K 2DI/2DO 35 alarms Schneider Electric Original price was: R10 223.00.R6 951.64Current price is: R6 951.64.View product
METSEPM5310RPM5310R Meter, modbus, up to 31st H, 256K 2DI/2DO 35 alarms, RJ45 LVCT Schneider Electric Original price was: R10 229.00.R6 955.72Current price is: R6 955.72.View product

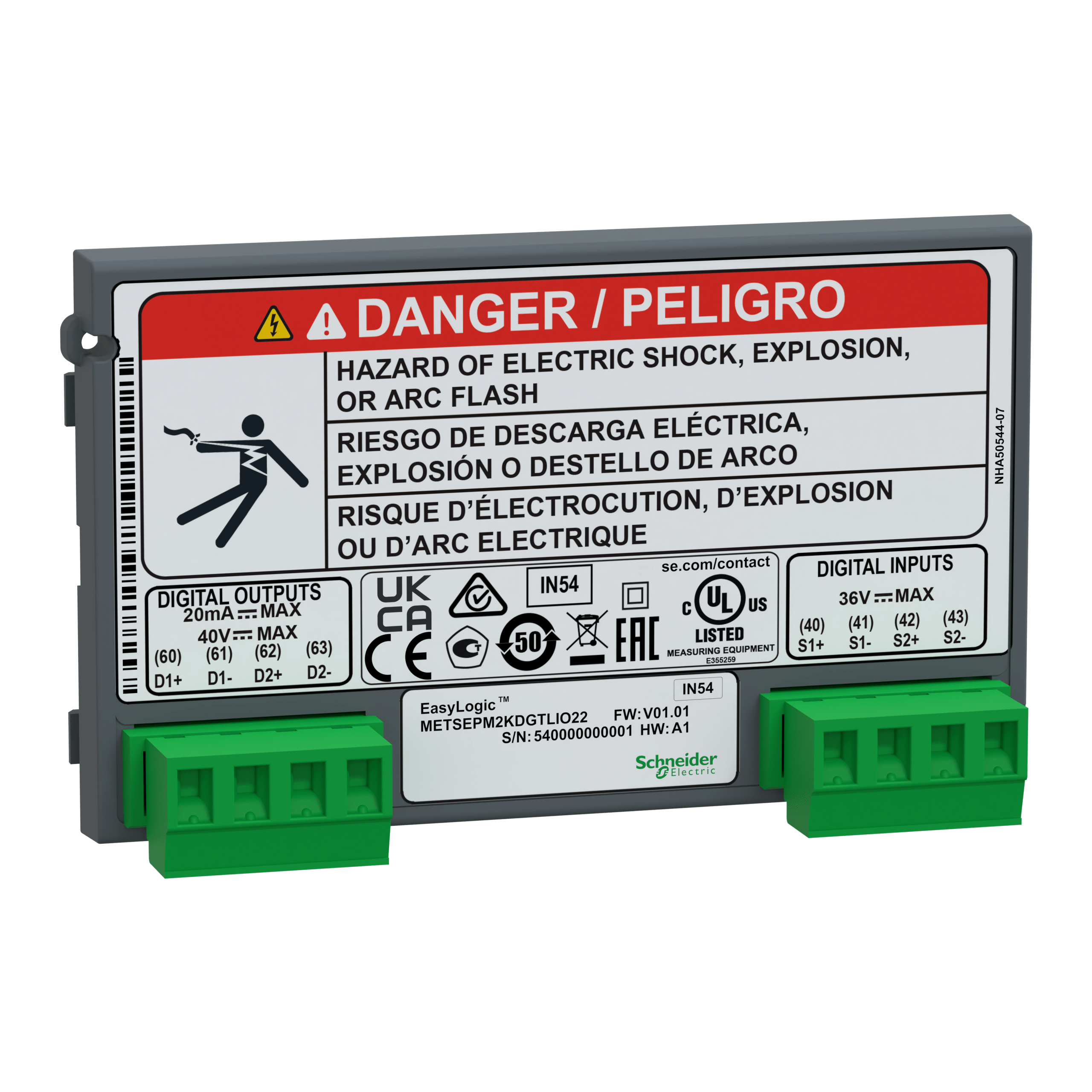

METSEPM2KDGTLIO22EasyLogic PM2X30 – I/O Module – Digital – 2 Inputs + 2 outputsR1 752.15View product
METSEPM2KANLGIO22EasyLogic PM2X30 – I/O Module – Analogue – 2 inputs + 2 outputs Original price was: R2 296.00.R1 561.28Current price is: R1 561.28.View product
More in Energy Meters

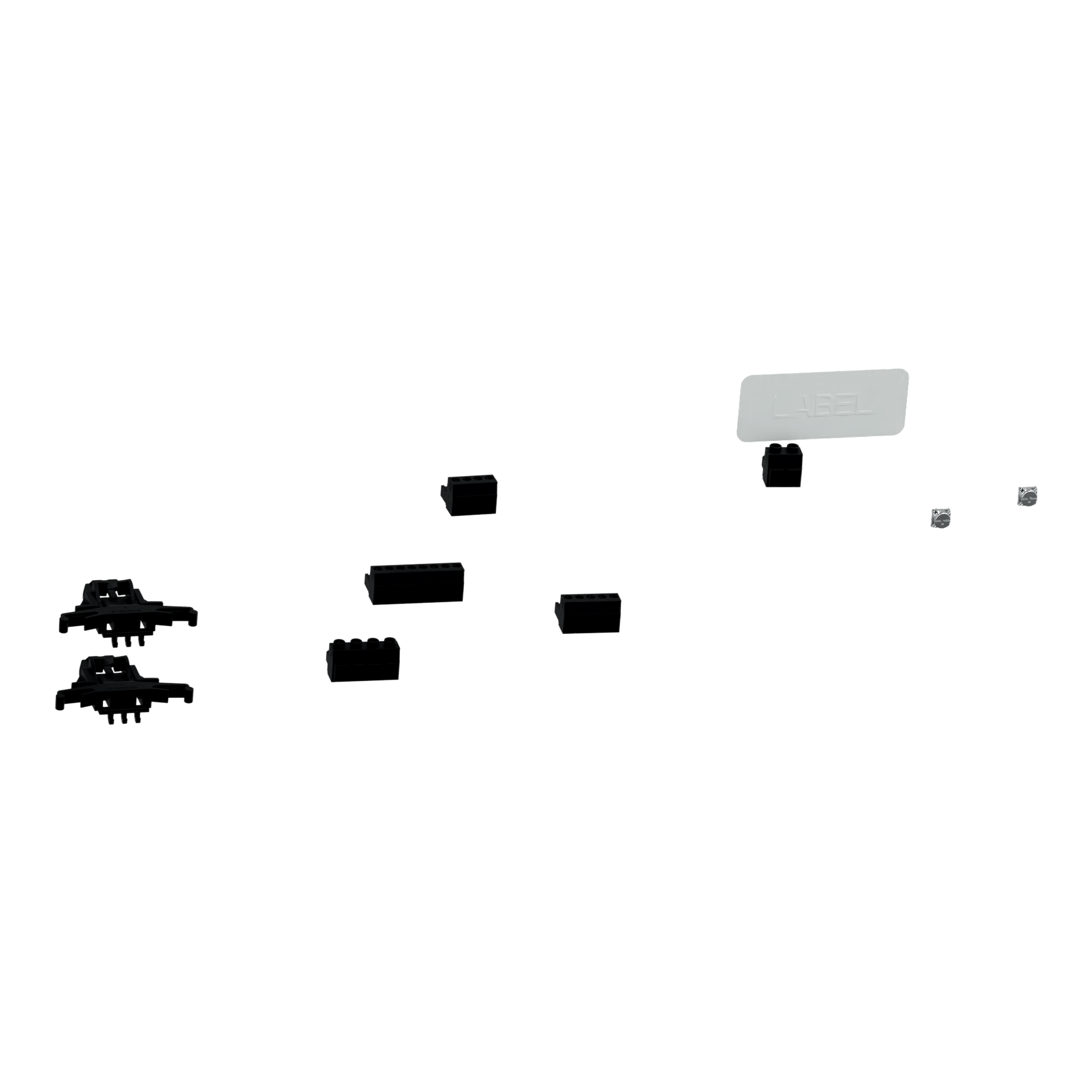

METSEPM55HKPowerLogic series input connector, ct screws and panel mounting hardware PM55xx Schneider Electric Original price was: R653.00.R444.04Current price is: R444.04.View product

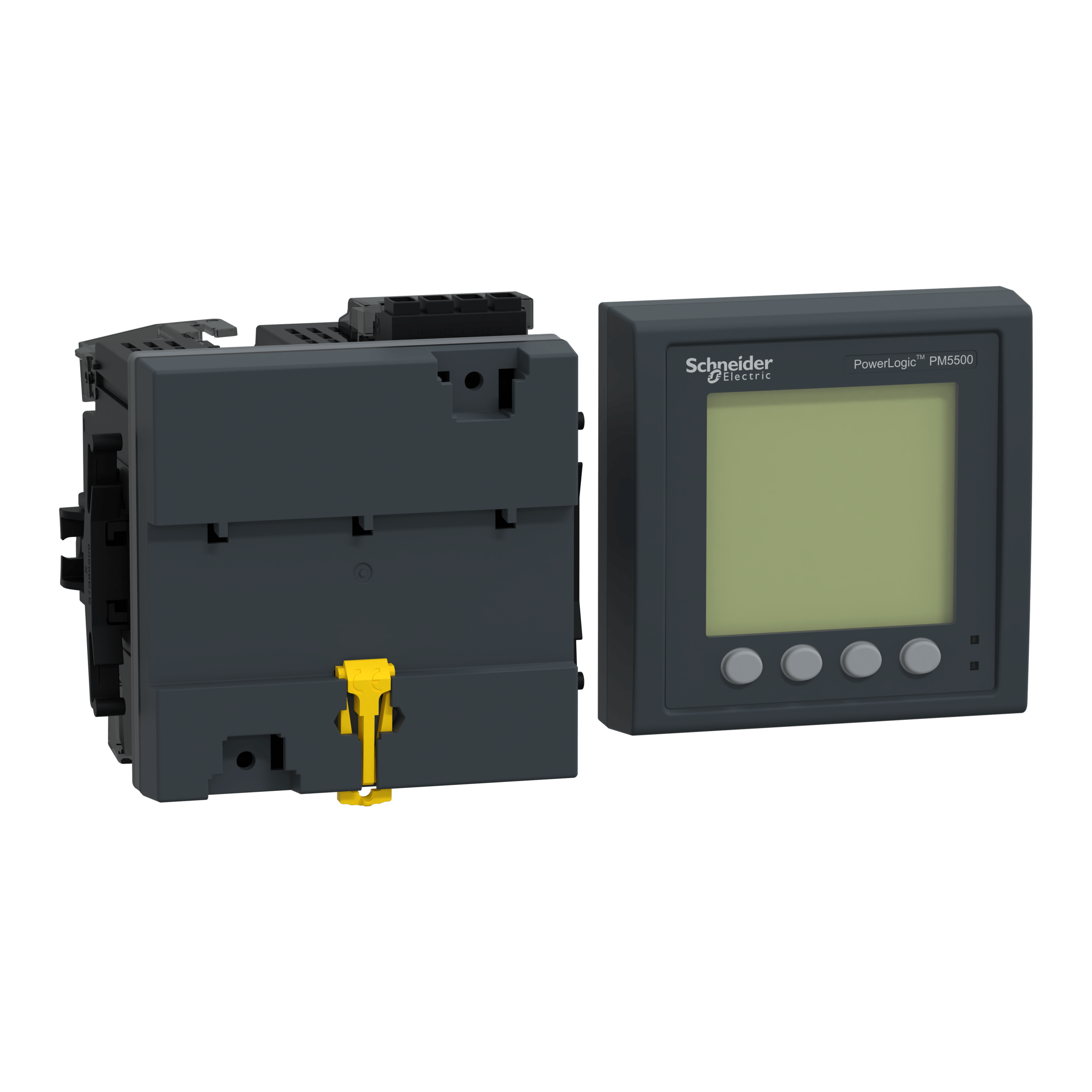

METSEPM5563RDPM5563 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms, w remote display Original price was: R25 273.00.R17 185.64Current price is: R17 185.64.View product
METSEPM5563PM5563 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms, DIN mounted Original price was: R19 783.00.R13 452.44Current price is: R13 452.44.View product
METSEPM5560METSEPM5560 – PM5560 Meter. The PowerLogic PM5000 series power meters are the new benchmark in affordable, precision metering. Original price was: R21 121.00.R14 362.28Current price is: R14 362.28.View product
METSEPM5340METSEPM5340 – PM5340 Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms Schneider Electric Original price was: R13 005.00.R8 843.40Current price is: R8 843.40.View product
METSEPM5330METSEPM5330 – PM5330 Meter,up to 31st H, 256K 2DI/2DO 35 alarms. The PowerLogic PM5000 series is the new benchmark in affordable, precision metering. Original price was: R11 050.00.R7 514.00Current price is: R7 514.00.View product
METSEPM5320RPM5320R Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms, RJ45 LVCT Schneider Electric Original price was: R12 056.00.R8 198.08Current price is: R8 198.08.View product

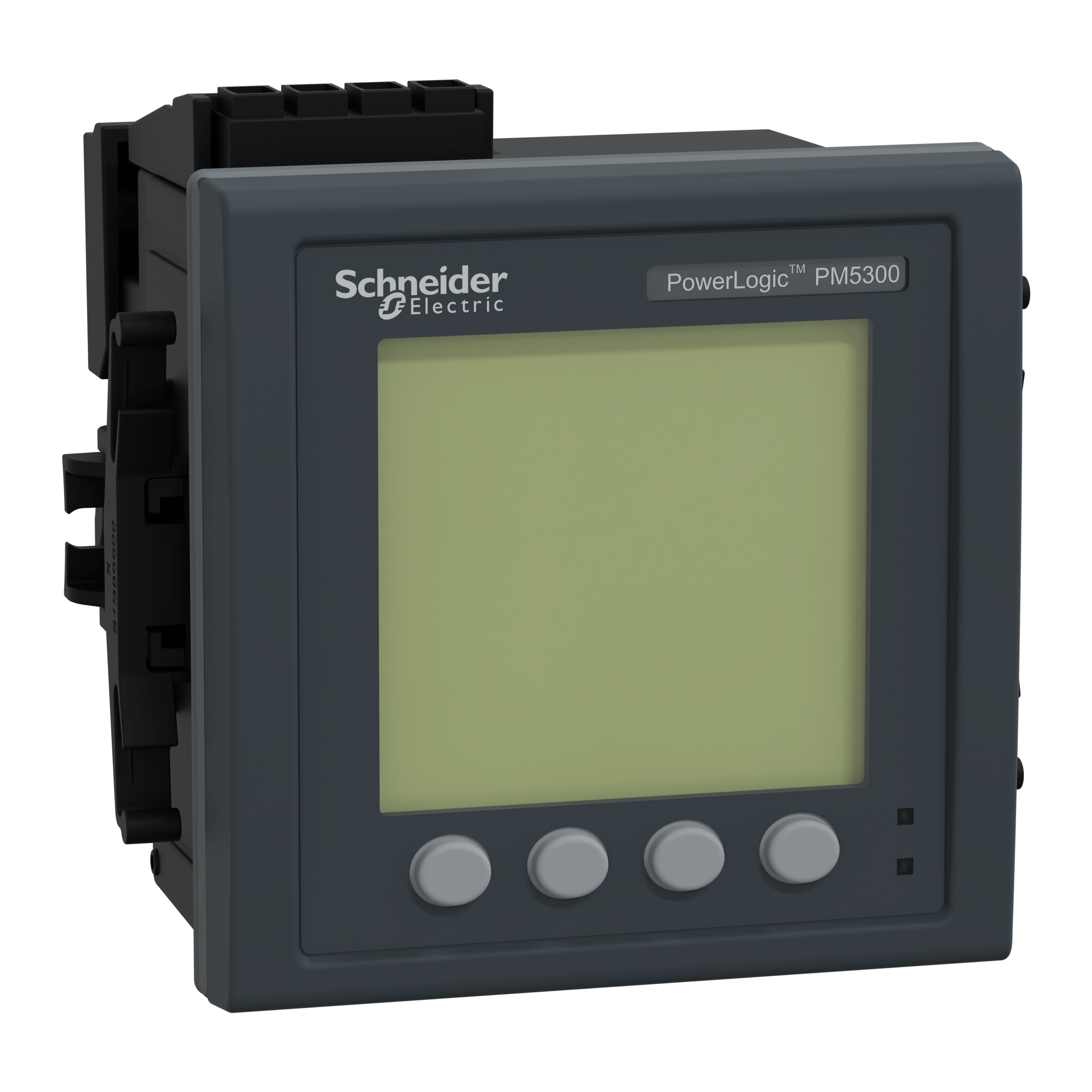

METSEPM5320PM5320 Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms Schneider Electric Original price was: R12 058.00.R8 199.44Current price is: R8 199.44.View product
