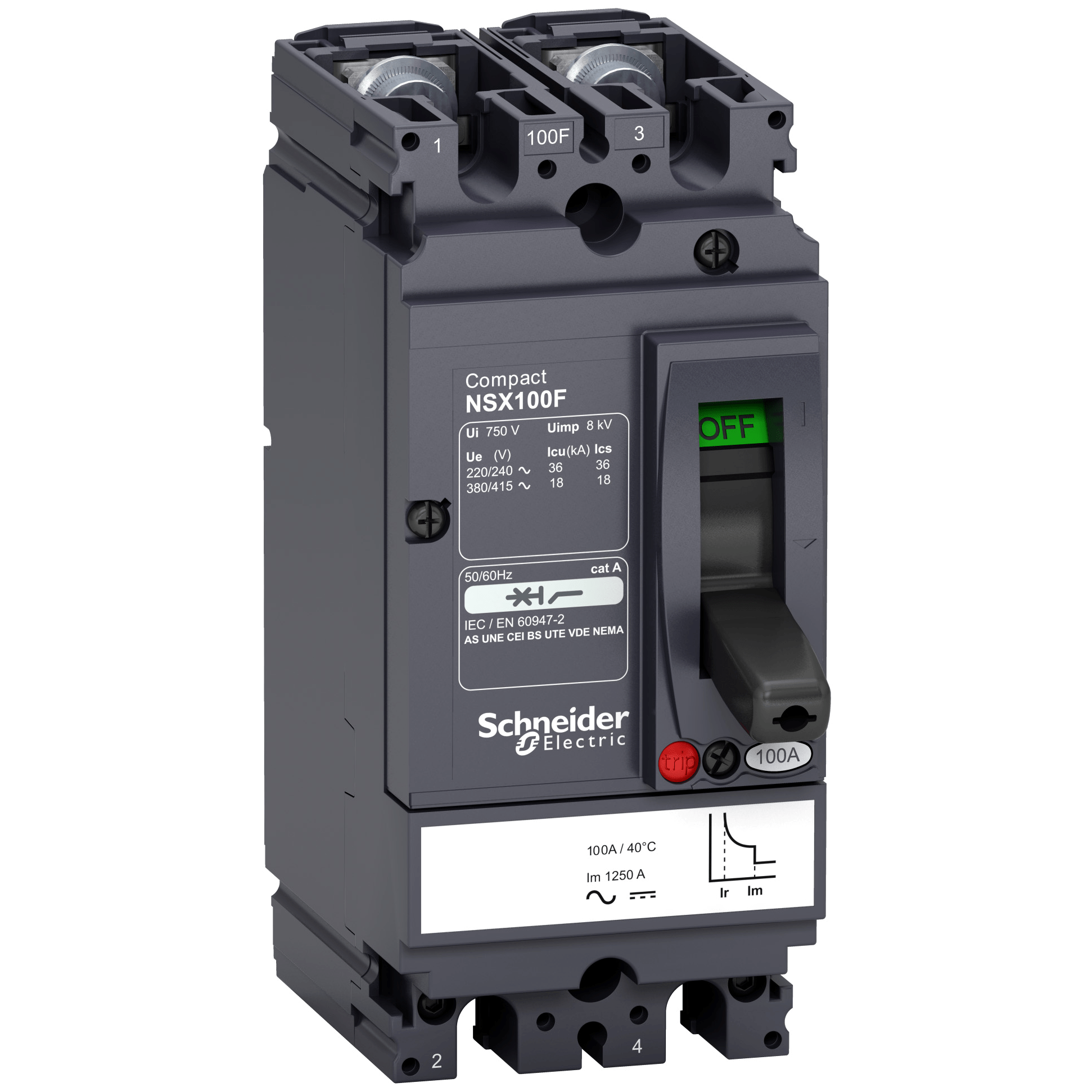

LV438599 – circuit breaker ComPact NSX100F AC/DC, 18 kA at 415 VAC, TMD trip unit 80 A, 2 poles 2d Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R3 436.77
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced. Replaced by ComPacT NSX (new generation). See ComPacT NSX products · Schneider Electric substitution guide (opens in a new tab) Ask us to confirm remaining stock or to quote the replacement.
Listed in stock — availability is re-confirmed on every order
Circuit breaker ComPact NSX100F AC/DC, 18 kA at 415 VAC, TMD trip unit 80 A, 2 poles 2d — Schneider Electric order code LV438599. Rated current 80 A; 2P 2d; breaking capacity 18 kA at 415 V AC; rated voltage 415 V AC.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV438599 — Circuit breaker ComPact NSX100F AC/DC, 18 kA at 415 VAC, TMD trip unit 80 A, 2 poles 2d from the Schneider Electric Compact NSX <630 range.
Compact NSX 100F is a complete 2 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 80A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 2 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.
Key specifications: rated current 80 A; 2P 2d; breaking capacity 18 kA at 415 V AC; rated voltage 415 V AC.
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Ordering information
- Order code:
LV438599 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480073786
- Supplied: each
- Weight: 1.281 kg
- ETIM class: EC000228
- Datasheet: manufacturer datasheet for LV438599
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 2P 2d |
|---|---|
| Rated current (Iu) | Filter products by 80 A |
| Rated voltage (Ue) | Filter products by 415 V AC |
| Operating Voltage | Filter products by 415 VAC |
| Max Break Capacity | Filter products by 18 kA at 415 V AC |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LV438599 |
| Iternational GTIN | Filter products by 3606480073786 |
| Mount Type | Filter products by Plug-in |
