Schneider ElectricMoulded Case Circuit Breakers (MCCBs)
LV429272 – manual auxiliary connector, fixed and moving part, ComPact NSX 100 to NSX630, withdrawable circuit breakers, 1 to 9 wires Schneider Electric
Order code
R659.60
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Manual auxiliary connector, fixed and moving part, ComPact NSX 100 to NSX630, withdrawable circuit breakers, 1 to 9 wires — Schneider Electric order code LV429272. Fixed mounting.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV429272 — Manual auxiliary connector, fixed and moving part, ComPact NSX 100 to NSX630, withdrawable circuit breakers, 1 to 9 wires from the Schneider Electric Compact NSX <630 range.

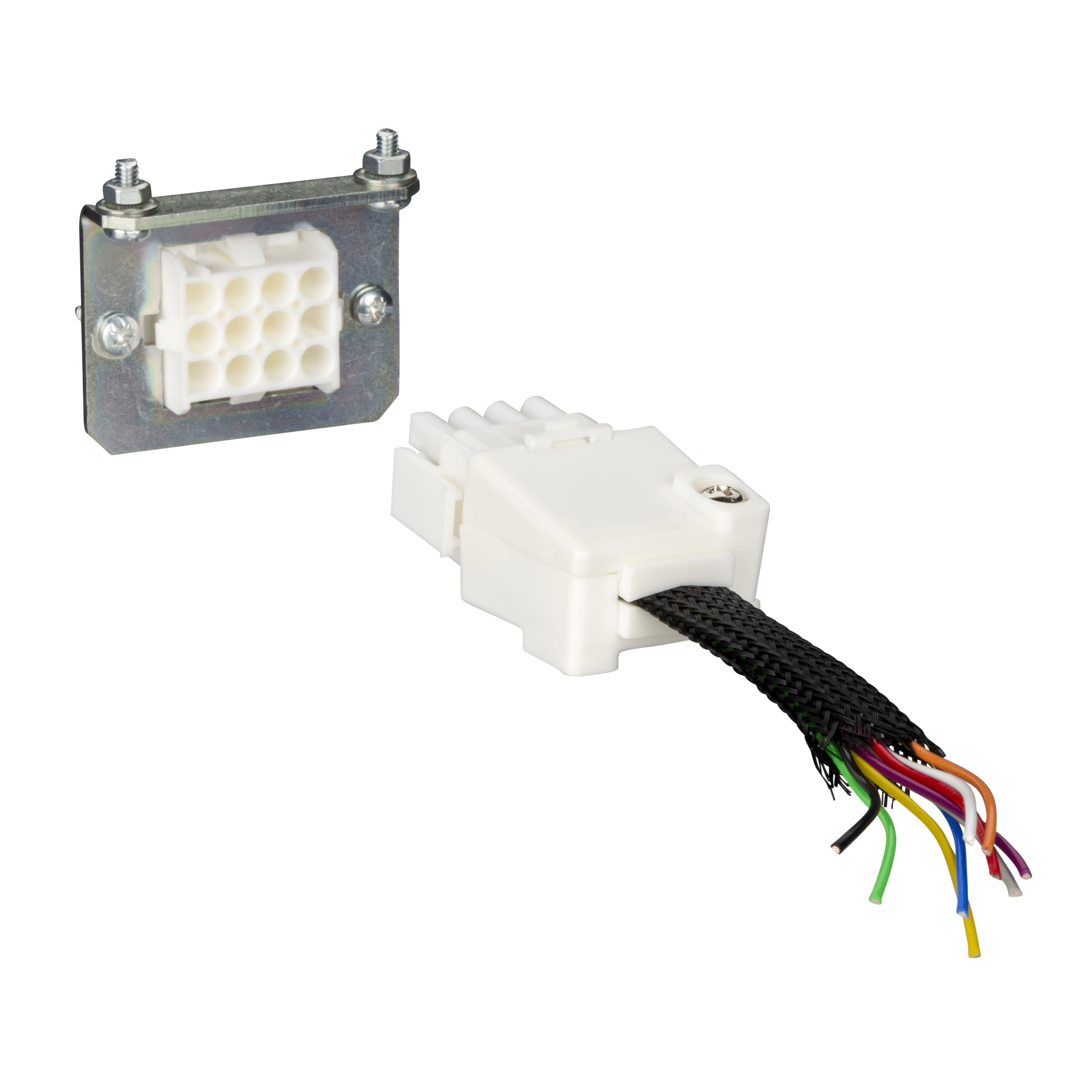

This is a manual connector for Compact NSX 100 to 630 auxiliaries connection. It is adapted for withdrawable circuit breakers. It is made of a fixed and a moving part with 9 wires. The terminal block has numbered terminals for the connection of wires. The wire section is 1.5mm² for auxiliary contacts and voltage releases. The wire section is 2.5mm² for motor mechanisms. The circuit breaker can be equipped with 3 manual connectors with 9 wires each. When the withdrawable circuit breaker is in disconnected position, the auxiliaries remain connected.
Key specifications: fixed mounting.
Ordering information
- Order code:
LV429272 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480021565
- Supplied: each
- Weight: 0.17 kg
- ETIM class: EC002498
- Datasheet: manufacturer datasheet for LV429272
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV429272 |
| Iternational GTIN | Filter products by 3606480021565 |
