Schneider ElectricElectronic Motor Protection

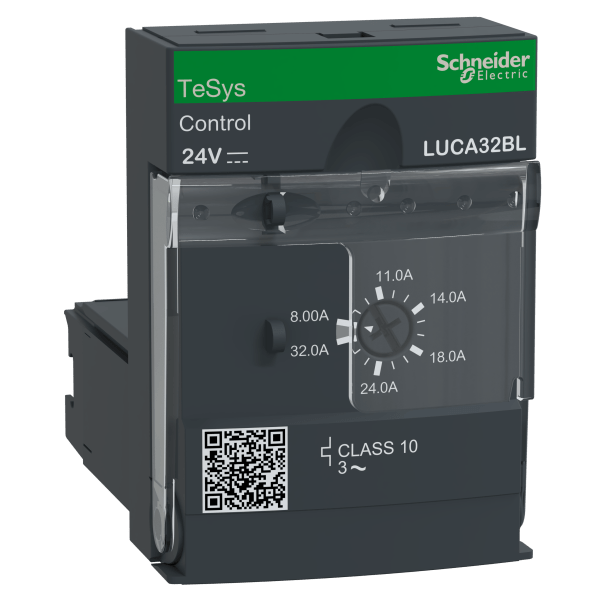

LUCA32BL – Standard control unit, TeSys U, 8-32A, 3P motors, thermal magnetic protection, class 10, coil 24V DC | Schneider Electric
Order code
List R1 679.00 Your price R1 141.72
Per unit · volume pricing available on request
excl. VAT R1 312.98 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Standard control unit, TeSys U, 8-32A, 3P motors, thermal magnetic protection, class 10, coil 24V DC — Schneider Electric order code LUCA32BL. Rated current 32 A; 3P; rated voltage 24 V; 24 V DC coil.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Poles3P2 options
- 1P
- 3P
Coil voltage24 V DC2 options
- 24 V AC
- 24 V DC
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LUCA32BL — Standard control unit, TeSys U, 8-32A, 3P motors, thermal magnetic protection, class 10, coil 24V DC by Schneider Electric. Listed under Electronic Motor Protection on the Schneider Electric catalogue at RMS-SE.Africa.
About LUCA32BL
TeSys U standard control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LUCA32BL key specifications
Key specifications: rated current 32 A; 3P; rated voltage 24 V; 24 V DC coil.
Ordering information for LUCA32BL
- Order code:
LUCA32BL - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys U
- GTIN / EAN: 3389110363869
- Supplied: each
- Weight: 0.122 kg
- ETIM class: EC000617
- Datasheet: manufacturer datasheet for LUCA32BL
About the TeSys U range
TeSys U is a Schneider Electric range with 129 references listed on RMS-SE.Africa, from 1 A to 38 A. Coil voltages in the range: 24 V DC, 24 V AC. It spans Electronic Motor Protection, Motor Protection Circuit Breakers, Contactors.
LUCA32BL — frequently asked questions
What is the rated current of LUCA32BL?
LUCA32BL is rated 32 A.
What coil or control voltage does LUCA32BL use?
LUCA32BL is supplied with a 24 V DC coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does LUCA32BL have?
LUCA32BL is a 3P device.
Where is the datasheet for LUCA32BL?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LUCA32BL a genuine Schneider Electric product?
Yes. LUCA32BL is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LUCA32BL – Standard control unit, TeSys U, 8-32A, 3P motors, thermal magnetic protection, class 10, coil 24V DC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys U |
| GTIN / EAN | 3389110363869 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000617 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 32 A |
| Rated voltage (Ue) | Filter products by 24 V |
| Operating Voltage | Filter products by 24V |
Power & coil
| Coil voltage (Uc) | Filter products by 24 V DC |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 15 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | LUCA32BL |
| Iternational GTIN | 3389110363869 |
| Mount Type | Filter products by Plug-in |
