Schneider Electric3 Industry General PurposeElectronic Motor ProtectionGeneral Purpose

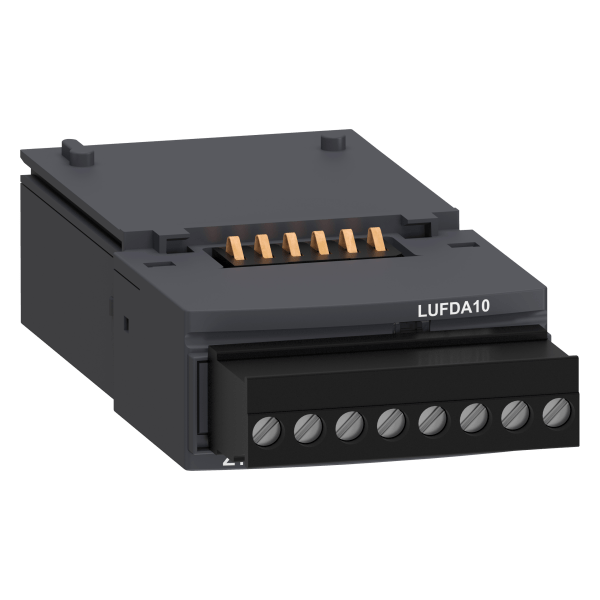

LUFDA10 – function module – thermal overload signalling – 1 NO – for TeSys U Schneider Electric
Order code
Original price was: R1 726.00.R1 173.68Current price is: R1 173.68.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – function module – thermal overload signalling – 1 NO – for TeSys U – TeSys U | LUFDA10
Accessories & add-ons 8
- Harmony, Solid state modular relay, 25 A, DIN rail mount, random switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM3A325BDRR8 063.05Add
- Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM3A325BDR7 928.98Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM1A312BD Original price was: R713.00.R484.84Current price is: R484.84.Add
- Harmony, Solid state modular relay, 6 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM1A36BDR1 267.93Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 200…265 V AC, output 24…280 V AC Schneider ElectricSSM1A112P7 Original price was: R985.00.R669.80Current price is: R669.80.Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 24…280 V AC Schneider ElectricSSM1A112BDR781.77Add
- Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 24 V DC Schneider ElectricRXM4LB2BD Original price was: R115.00.R78.20Current price is: R78.20.Add
- Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 120 V AC Schneider ElectricRXM4LB2F7R130.83Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LUFDA10 – function module – thermal overload signalling – 1 NO – for TeSys U Schneider Electric TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and the reset done by the power base control pad or done remotely. It provides 1NO instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). function module – thermal overload signalling – 1 NO – for TeSys U LUFDA10 – TeSys U
LUFDA10 – function module – thermal overload signalling – 1 NO – for TeSys U Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the TeSys range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: TeSys
- Amperage: 5A
- Voltage: 250V
Key Features
- Part of the TeSys range
- Rated at 5A
- Suitable for 250V applications
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Timers & Control Relays | Plug – in Relays
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 5A |
|---|---|
| Rated voltage (Ue) | Filter products by 250V |
| Rated operational voltage | Filter products by 250V |
| Operating Voltage | Filter products by 250V |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LUFDA10 |
| Iternational GTIN | Filter products by 3389110109849 |
| Mount Type | Filter products by Plug-in |
