Schneider ElectricElectronic Motor Protection

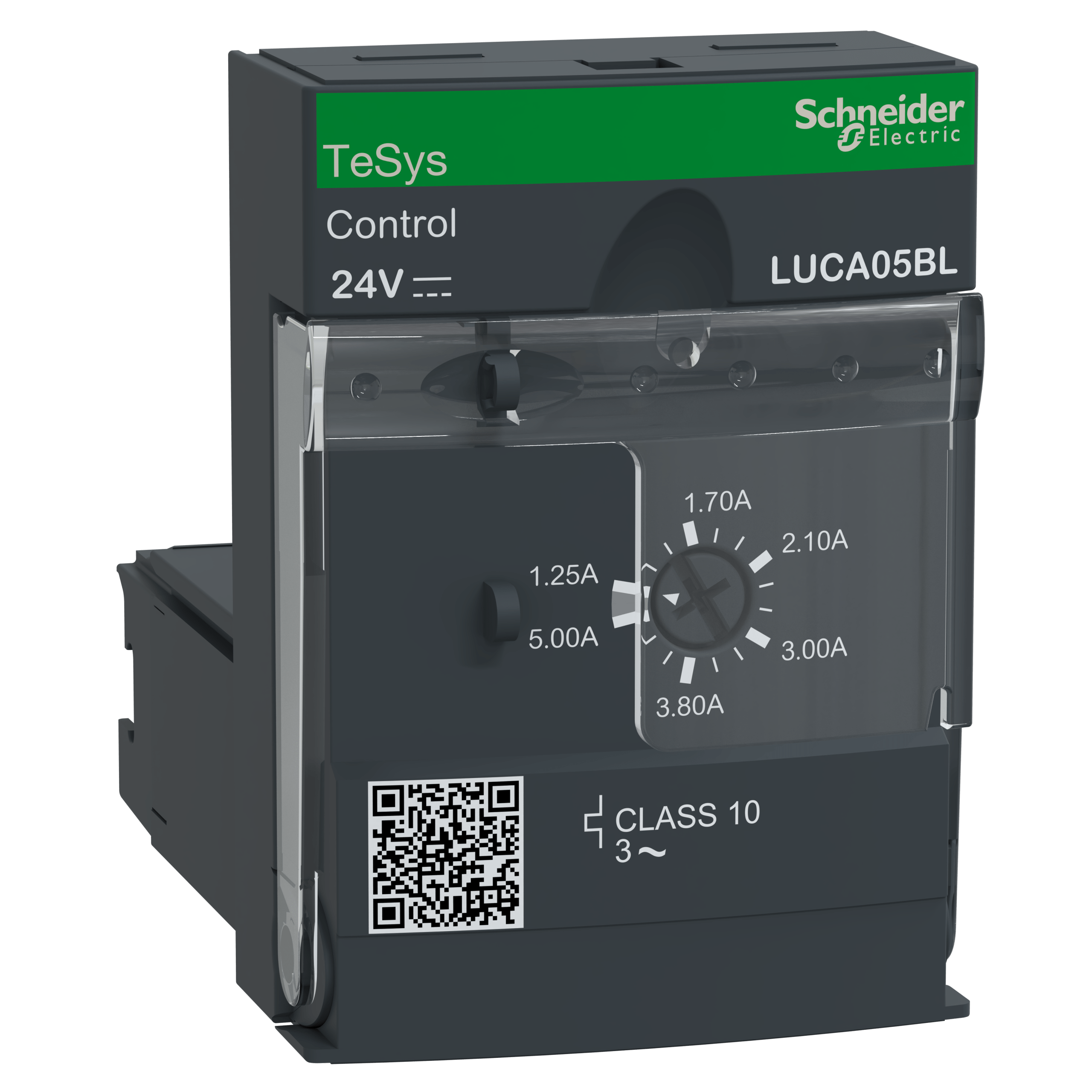

LUCA05BL – Standard control unit, TeSys U, 1.25-5A, 3P motors, thermal magnetic protection, class 10, coil 24V DC Schneider Electric
Order code
Select a variant in this series
- 1P
- 3P
- 24 V AC
- 24 V DC
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Original price was: R1 477.00.R1 004.36Current price is: R1 004.36.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Standard control unit, TeSys U, 1.25-5A, 3P motors, thermal magnetic protection, class 10, coil 24V DC — Schneider Electric order code LUCA05BL. Rated current 5 A; 3P; rated voltage 24 V; 24 V DC coil.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LUCA05BL — Standard control unit, TeSys U, 1.25-5A, 3P motors, thermal magnetic protection, class 10, coil 24V DC by Schneider Electric.
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Key specifications: rated current 5 A; 3P; rated voltage 24 V; 24 V DC coil.
Ordering information
- Order code:
LUCA05BL - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys U
- GTIN / EAN: 3389110363838
- Supplied: each
- Weight: 0.112 kg
- ETIM class: EC000617
- Datasheet: manufacturer datasheet for LUCA05BL
Ordering options in this range
Same product, different coil / control voltage:
LUCA05B— 24 V AC
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 5 A |
| Rated voltage (Ue) | Filter products by 24 V |
| Operating Voltage | Filter products by 24V |
Power & coil
| Coil voltage (Uc) | Filter products by 24 V DC |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LUCA05BL |
| Iternational GTIN | Filter products by 3389110363838 |
| Mount Type | Filter products by Plug-in |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.
LUCCX6FUAdvanced control unit, TeSys U, 0.15-0.6A, 1P motors, protection & diagnostic, class 10, coil 110-240V AC/DCR2 021.39View product
LUCCX6BLAdvanced control unit, TeSys U, 0.15-0.6A, 1P motors, protection & diagnostic, class 10, coil 24V DC Schneider ElectricR2 021.39View product

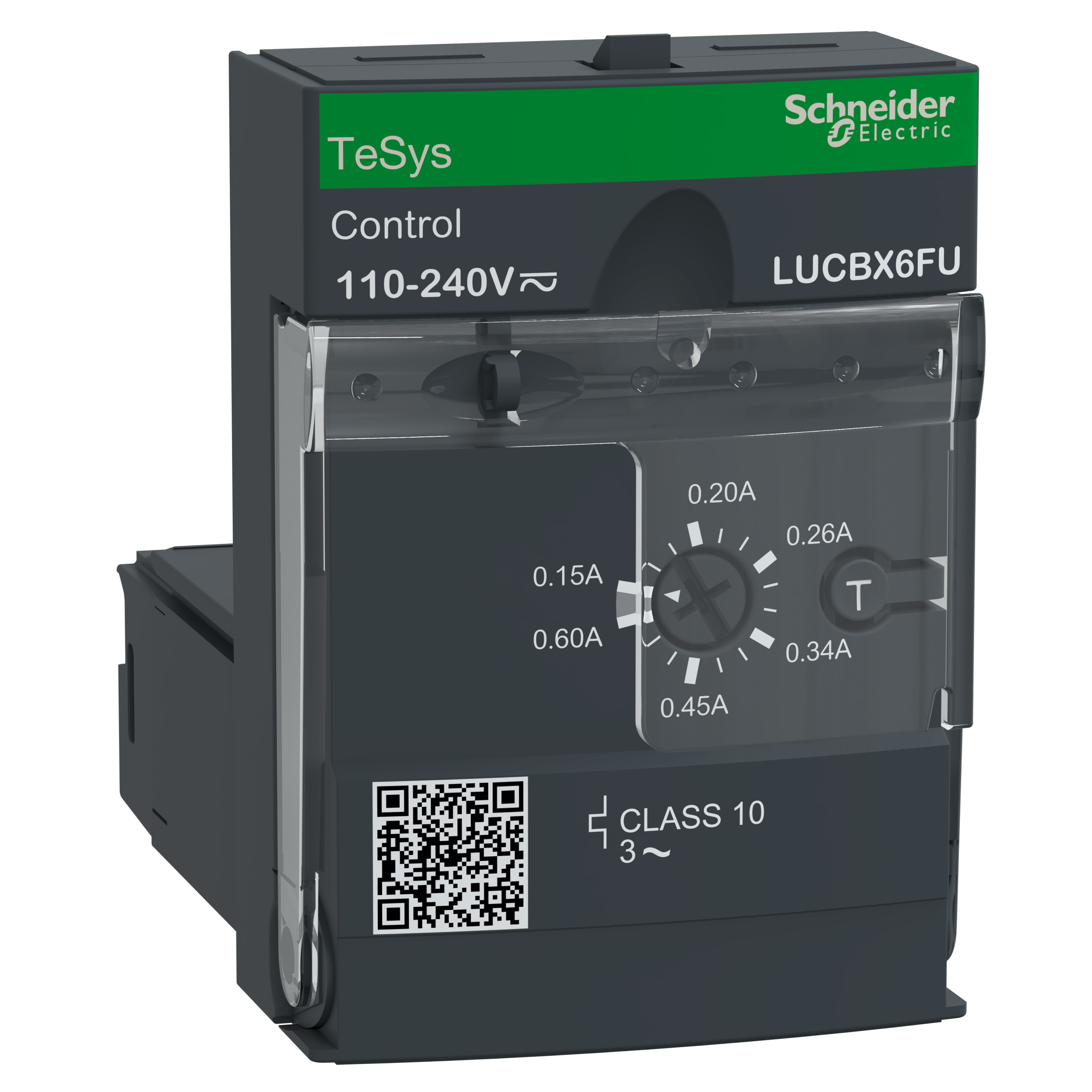

LUCBX6FUAdvanced control unit, TeSys U, 0.15-0.6A, 3P motors, protection & diagnostic, class 10, coil 110-240V AC/DCR2 021.39View product
