LC1D09BNE – TeSys D contactor 3P 9A AC-3 up to 440V coil 24-60VAC/DC Schneider Electric
Order code
Select a variant in this series
- 3P
- 4P
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Original price was: R977.00.R537.35Current price is: R537.35.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TeSys D contactor 3P 9A AC-3 up to 440V coil 24-60VAC/DC — Schneider Electric order code LC1D09BNE. Rated current 9 A; 3P; rated voltage 440 V.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

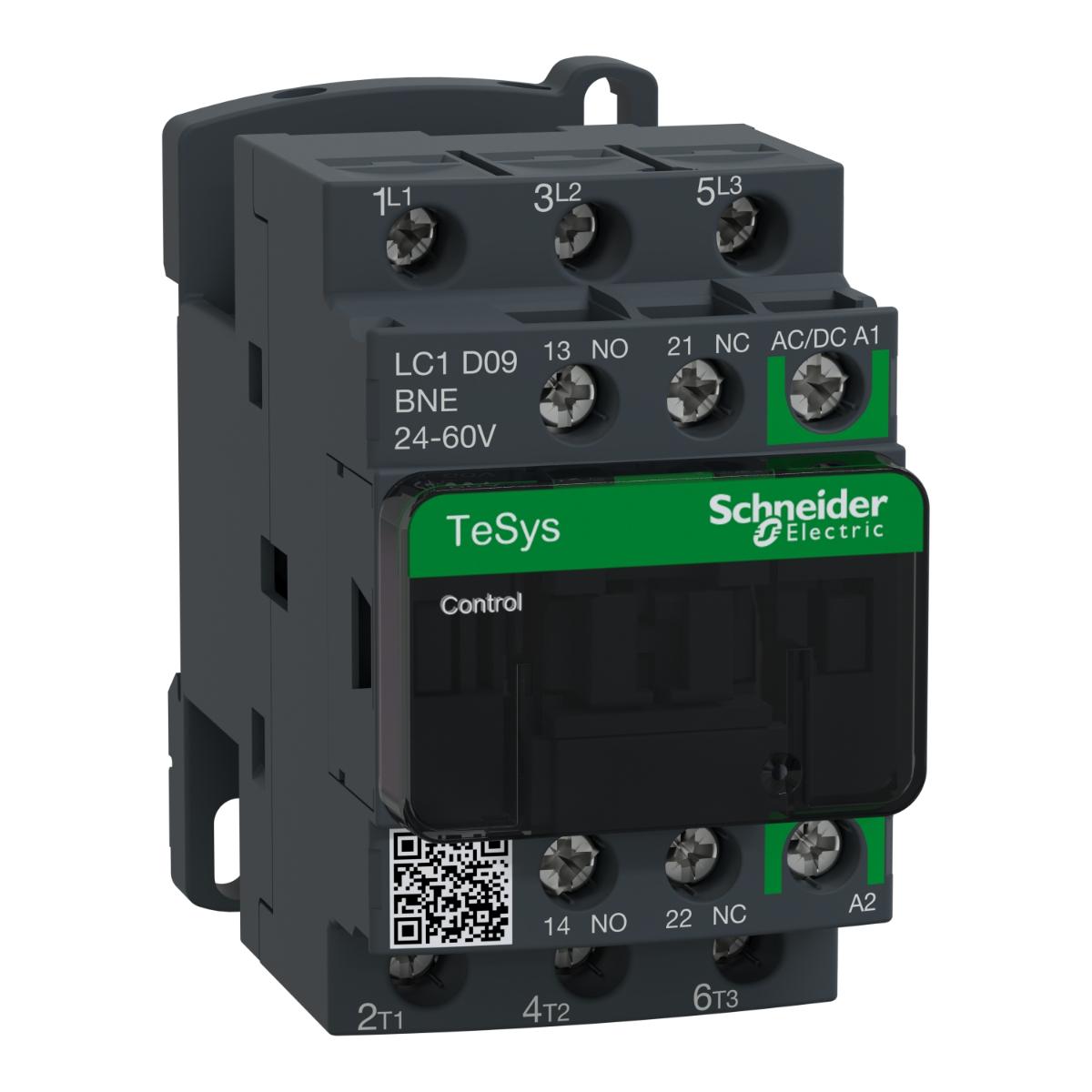

LC1D09BNE — TeSys D contactor 3P 9A AC-3 up to 440V coil 24-60VAC/DC by Schneider Electric.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Key specifications: rated current 9 A; 3P; rated voltage 440 V.
Ordering information
- Order code:
LC1D09BNE - Manufacturer: Schneider Electric
- Range: TeSys D
- GTIN / EAN: 3606480987632
- Supplied: each
- Weight: 0.399 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LC1D09BNE
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LC1D09BNE – TeSys D contactor 3P 9A AC-3 up to 440V coil 24-60VAC/DC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys D |
| GTIN / EAN | Filter products by 3606480987632 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000066 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 9 A |
| Rated voltage (Ue) | Filter products by 440 V |
| Operating Voltage | Filter products by 440V |
Power & coil
| Coil voltage (Uc) | Filter products by 440 V |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LC1D09BNE |
| Iternational GTIN | Filter products by 3606480987632 |
| Mount Type | Filter products by Plug-in |
