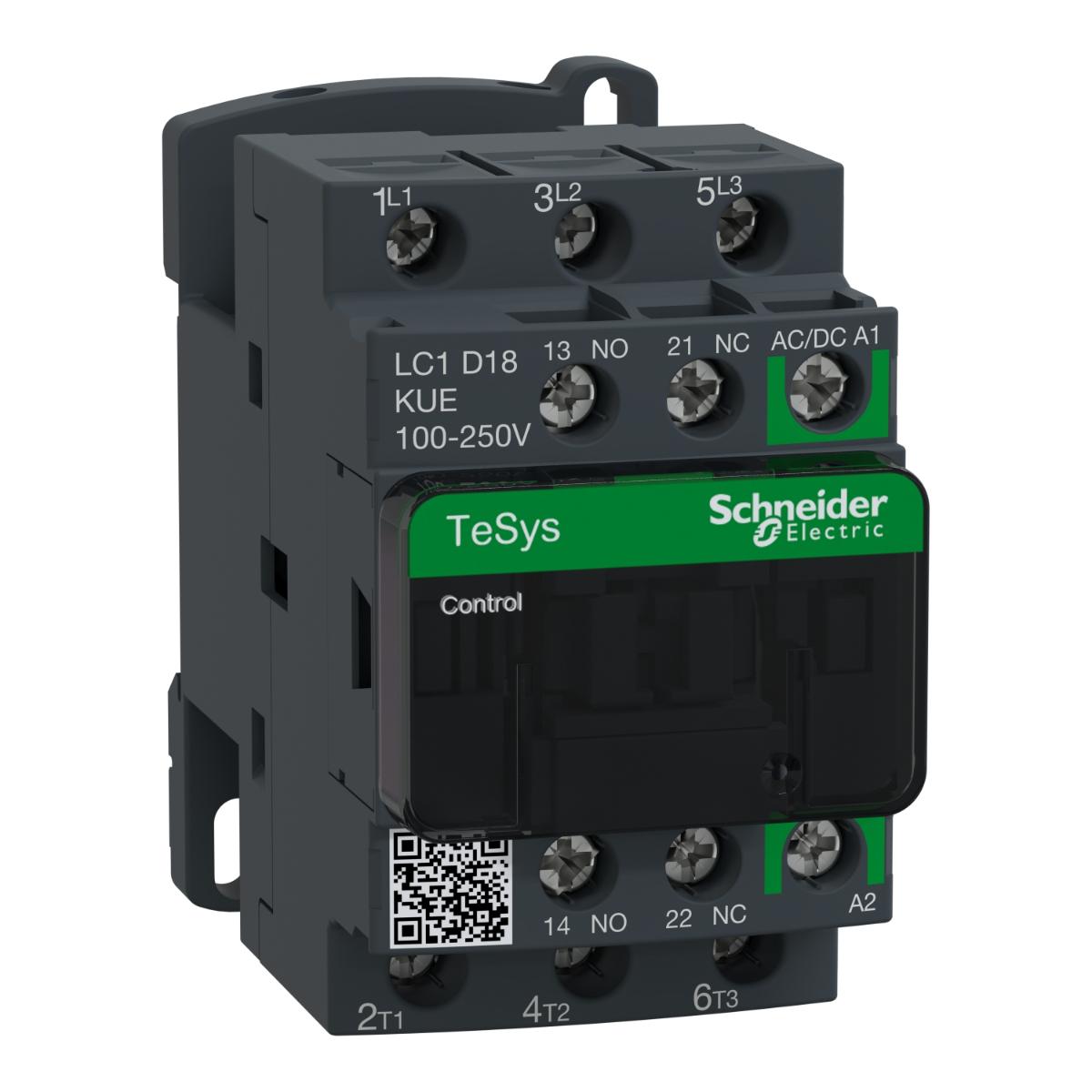

LC1D18KUE – TeSys D contactor 3P 18A AC-3 up to 440V coil 100-250V AC/DC | Schneider Electric
Order code
List R1 319.00 Your price R725.45
Per unit · volume pricing available on request
excl. VAT R834.27 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys D contactor 3P 18A AC-3 up to 440V coil 100-250V AC/DC — Schneider Electric order code LC1D18KUE. Rated current 18 A; 3P; rated voltage 440 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Poles3P2 options
- 3P
- 4P
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC1D18KUE — TeSys D contactor 3P 18A AC-3 up to 440V coil 100-250V AC/DC by Schneider Electric. Listed under Contactors on the Schneider Electric catalogue at RMS-SE.Africa.
About LC1D18KUE
TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a low sealed consumption 100-250V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LC1D18KUE key specifications
Key specifications: rated current 18 A; 3P; rated voltage 440 V.
Ordering information for LC1D18KUE
- Order code:
LC1D18KUE - Manufacturer: Schneider Electric
- Range: TeSys D
- GTIN / EAN: 3606480987717
- Supplied: each
- Weight: 0.394 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LC1D18KUE
About the TeSys D range
TeSys D is a Schneider Electric range with 504 references listed on RMS-SE.Africa, from 1 A to 200 A. Coil voltages in the range: 440 V, 110 V AC, 230 V AC, 24 V DC, 24 V AC, 48 V AC, 110 V DC, 400 V AC. It spans Contactors, Motor Protection Circuit Breakers.
LC1D18KUE — frequently asked questions
What is the rated current of LC1D18KUE?
LC1D18KUE is rated 18 A.
What coil or control voltage does LC1D18KUE use?
LC1D18KUE is supplied with a 440 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does LC1D18KUE have?
LC1D18KUE is a 3P device.
Where is the datasheet for LC1D18KUE?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LC1D18KUE a genuine Schneider Electric product?
Yes. LC1D18KUE is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LC1D18KUE – TeSys D contactor 3P 18A AC-3 up to 440V coil 100-250V AC/DC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys D |
| GTIN / EAN | 3606480987717 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000066 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 18 A |
| Rated current AC-3 (Ie) | Filter products by 18 A |
| Rated voltage (Ue) | Filter products by 440 V |
| Operating Voltage | Filter products by 440V |
Power & coil
| Coil voltage (Uc) | Filter products by 440 V |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 7.5 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | Search products for LC1D18KUE |
| Iternational GTIN | 3606480987717 |
| Mount Type | Filter products by Plug-in |
