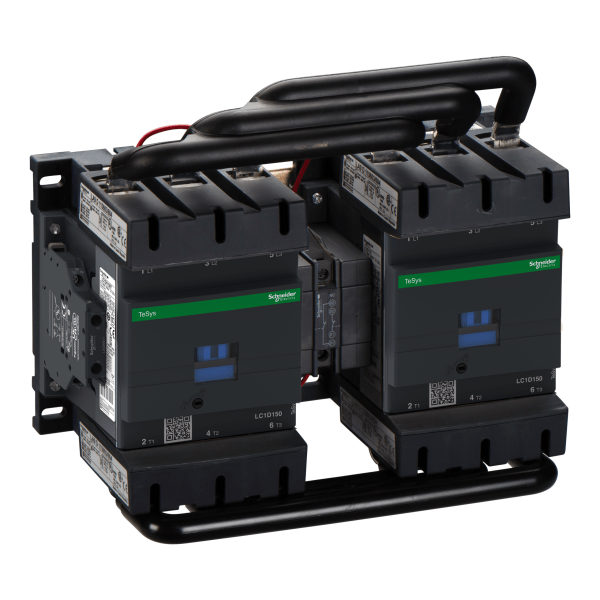

LC2D150F7 – TeSys D reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A - 110 V AC coil | Schneider Electric
Order code
List R18 833.00 Your price R12 806.44
Per unit · volume pricing available on request
excl. VAT R14 727.41 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys D reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A - 110 V AC coil — Schneider Electric order code LC2D150F7. Rated current 150 A; 3P; rated voltage 440 V; 110 V AC coil.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Poles3P2 options
- 3P
- 4P
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC2D150F7 — TeSys D reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A – 110 V AC coil by Schneider Electric. Listed under Contactors on the Schneider Electric catalogue at RMS-SE.Africa.
About LC2D150F7
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides 110V 50/60Hz AC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (266mm width), mounting on 2 DIN-rails or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LC2D150F7 key specifications
Key specifications: rated current 150 A; 3P; rated voltage 440 V; 110 V AC coil.
Ordering information for LC2D150F7
- Order code:
LC2D150F7 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys D
- GTIN / EAN: 3389110508666
- Supplied: each
- Weight: 6.5 kg
- ETIM class: EC000010
- Datasheet: manufacturer datasheet for LC2D150F7
How to read the order code
LC2D— TeSys D contactor (reversing)150— AC-3 rating 150 AF7— coil 110 V AC
About the TeSys D range
TeSys D is a Schneider Electric range with 504 references listed on RMS-SE.Africa, from 1 A to 200 A. Coil voltages in the range: 440 V, 110 V AC, 230 V AC, 24 V DC, 24 V AC, 48 V AC, 110 V DC, 400 V AC. It spans Contactors, Motor Protection Circuit Breakers.
LC2D150F7 — frequently asked questions
What is the rated current of LC2D150F7?
LC2D150F7 is rated 150 A.
What coil or control voltage does LC2D150F7 use?
LC2D150F7 is supplied with a 110 V AC coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does LC2D150F7 have?
LC2D150F7 is a 3P device.
Where is the datasheet for LC2D150F7?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LC2D150F7 a genuine Schneider Electric product?
Yes. LC2D150F7 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LC2D150F7 – TeSys D reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A – 110 V AC coil Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys D |
| GTIN / EAN | 3389110508666 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000010 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 150 A |
| Rated current AC-3 (Ie) | Filter products by 150 A |
| Rated voltage (Ue) | Filter products by 440 V |
Power & coil
| Coil voltage (Uc) | Filter products by 110 V AC |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 75 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | Search products for LC2D150F7 |
| Iternational GTIN | 3389110508666 |
| Mount Type | Filter products by Plug-in |
