CCT15940 – Acti9 – ITA – 4C yearly time switch – 24 hours + 7 days + year | Schneider Electric
Order code
List R6 167.01 Your price R4 193.57
Per unit · volume pricing available on request
excl. VAT R4 822.61 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Acti9 – ITA – 4C yearly time switch – 24 hours + 7 days + year — Schneider Electric order code CCT15940. Rated current 16 A; rated voltage 230 V; IP20.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

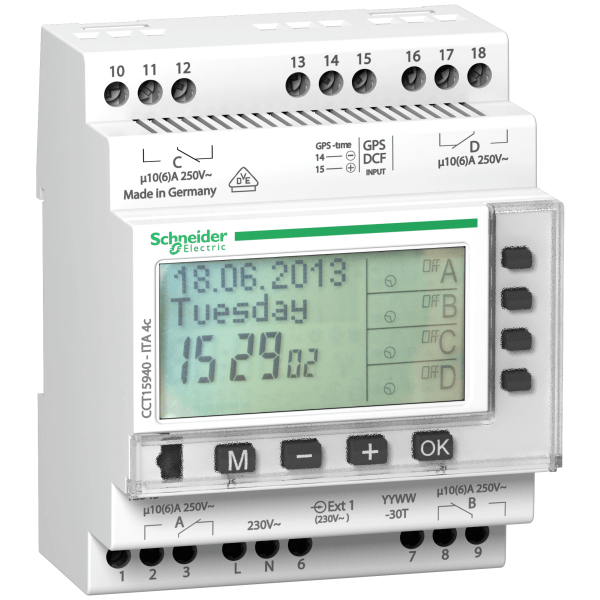

CCT15940 — Acti9 – ITA – 4C yearly time switch – 24 hours + 7 days + year, a timer from the Schneider Electric ITM range. Listed under Timers on the Schneider Electric catalogue at RMS-SE.Africa.
About CCT15940
ITA 4c yearly programmable time switch. Weekly or yearly time programming to be distributed over 4 channels. Override control with switch or push-button via external inputs. A memory key and a programming kit can be used to duplicate on another ITA or to save the program created by the user. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption 124-3.2 W depending on the switching status). Operating temperature -30°C to +55°C. Width (9 mm modules): 8. Degree of protection: IP20. Output contact rating 250 V: 16 A cos Phi 1. 6 A cos Phi 0.6. LCD liquid crystal display: Back-lit. Number of switching operations: 300. Minimum switching: 1 s. Switching accuracy: Without antenna: ± 0.5 s per day at 20°C. With antenna: 1 s on 1 million years1 s. Number of channels: 4.
CCT15940 key specifications
Key specifications: rated current 16 A; rated voltage 230 V; IP20.
Ordering information for CCT15940
- Order code:
CCT15940 - Manufacturer: Schneider Electric
- Range: ITM
- GTIN / EAN: 3606480625169
- Supplied: each
- Weight: 0.365 kg
- ETIM class: EC002305
- Datasheet: manufacturer datasheet for CCT15940
CCT15940 — frequently asked questions
What is the rated current of CCT15940?
CCT15940 is rated 16 A.
Where is the datasheet for CCT15940?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is CCT15940 a genuine Schneider Electric product?
Yes. CCT15940 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by CCT15940 – Acti9 – ITA – 4C yearly time switch – 24 hours + 7 days + year Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by ITM |
| GTIN / EAN | 3606480625169 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002305 |
Electrical ratings
| Rated current (Iu) | Filter products by 16 A |
|---|---|
| Rated voltage (Ue) | Filter products by 230 V |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|---|
| Ambient air temperature | Filter products by 4C |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Search products for CCT15940 |
| Iternational GTIN | 3606480625169 |
| Mount Type | Filter products by Plug-in |
