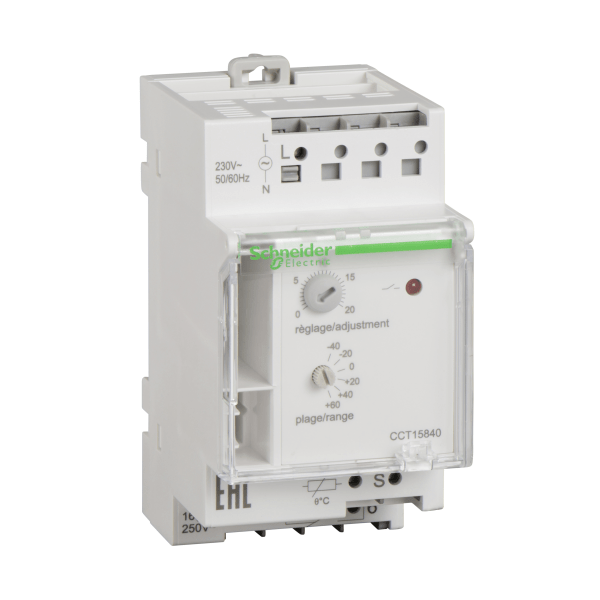

CCT15840 – Acti9 – TH7 – thermostat – 1 zone – -40 °C to +80 °C | Schneider Electric
Order code
List R3 362.49 Your price R2 286.49
Per unit · volume pricing available on request
excl. VAT R2 629.46 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Acti9 – TH7 – thermostat – 1 zone – -40 °C to +80 °C — Schneider Electric order code CCT15840. Rated current 16 A; rated voltage 230 V; ambient −40 °C; 5 modules wide.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
CCT15840 — Acti9 – TH7 – thermostat – 1 zone – -40 °C to +80 °C, a timer from the Schneider Electric TH-THP range. Listed under Timers on the Schneider Electric catalogue at RMS-SE.Africa.
About CCT15840
TH7 Thermostat. For industrial premises stretching from cold storage to ovens, TH7 thermostat monitors and regulates temperature from -40°C to +80°C with a wide setting range. It can also be used for frost protections at home. Delivered without probe. Supply voltage: AC 230 V ± 10 %. Frequency: 50/60 Hz. Output change-over switch: 16 A/250 V cos Phi 1. 3 A/250 V cos Phi 0.6. Consumption: < 4 VA. Temperature difference (difference in temperature between switch-on and switch-off): ± 0.2 degrees. Operating temperature: -10°C to +55°C. Storage temperature: -20°C to +60°C. Degree of protection: IP20B as per EN 60529. Connection terminals: 2 x 0.5 to 2.5 mm2, rigid and flexible wires. Overall dimensions: 5 modules.
CCT15840 key specifications
Key specifications: rated current 16 A; rated voltage 230 V; ambient −40 °C; 5 modules wide.
Ordering information for CCT15840
- Order code:
CCT15840 - Manufacturer: Schneider Electric (formerly Other supplier)
- Range: TH-THP
- GTIN / EAN: 3606480375958
- Supplied: each
- Weight: 0.225 kg
- ETIM class: EC001666
- Datasheet: manufacturer datasheet for CCT15840
CCT15840 — frequently asked questions
What is the rated current of CCT15840?
CCT15840 is rated 16 A.
Where is the datasheet for CCT15840?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is CCT15840 a genuine Schneider Electric product?
Yes. CCT15840 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by CCT15840 – Acti9 – TH7 – thermostat – 1 zone – -40 °C to +80 °C Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TH-THP |
| GTIN / EAN | 3606480375958 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001666 |
Electrical ratings
| Number of modules | Filter products by 5 |
|---|---|
| Rated current (Iu) | Filter products by 16 A |
| Rated voltage (Ue) | Filter products by 230 V |
Environment & protection
| Degree of protection (IP) | Filter products by IP20B |
|---|---|
| Ambient air temperature | Filter products by −40 °C |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Search products for CCT15840 |
| Iternational GTIN | 3606480375958 |
| Mount Type | Filter products by Plug-in |
Similar items
8 items
Similar items
8 items

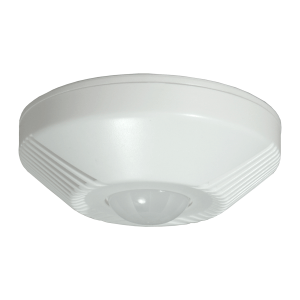

CCT551012ARGUS Presence Dual-Tech – 2chList R3 228.65 Your price R2 195.48View product
