A9E21180 – Phase control relay iRCP – 8 A – 400 V 50/60Hz – 1 OC | Schneider Electric
Order code
Select a variant in this series
- 8 A
- 10 A
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R5 746.22 Your price R3 907.43
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Phase control relay iRCP – 8 A – 400 V 50/60Hz – 1 OC — Schneider Electric order code A9E21180.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9E21180 — Phase control relay iRCP – 8 A – 400 V 50/60Hz – 1 OC by Schneider Electric. Listed under Timers on the Schneider Electric catalogue at RMS-SE.Africa.
About A9E21180

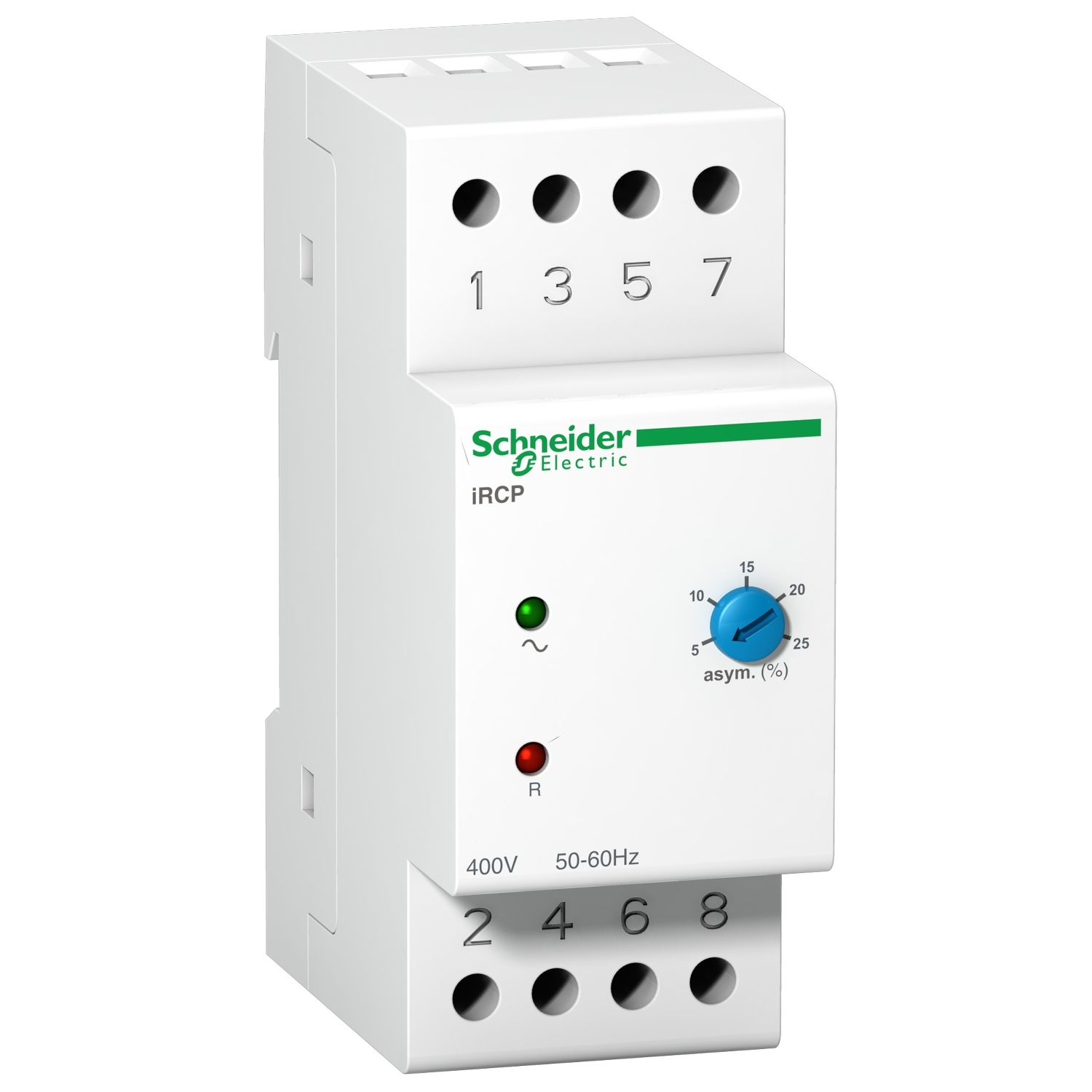

This Acti9 iRCP is a Phase control relay. The voltage measurement range is 0.15VAC to 10VAC. It monitors phases and the presence of voltage on the 3 phases of a 3 phase circuit power supply. It indicates also any phase loss or inversion. It supplies 1 fail-safe change-over contact. The parameter setting is done on the front panel by direct scale by using a screwdriver. It could be used for example to control the power supply of a 3-phase motor. The precision of the display is +/- 10% of the full scale. The time delay on tripping is 0.3s. The Uc supply voltage is 400VAC +/- 15%. The operating frequency is 50Hz or 60Hz. The output by changeover contact current is 8A under 250VAC with cos phi equal to 1. On the front face green led indicates the voltage presence. The red led indicates a fault. The consumption is 3VA. The dissipated power is 2W. The width in 9mm pitches is 4. The degree of protection is IP20. The dimensions are (W) 36mm x (H) 88,1mm x (D) 65mm. The operating temperature is -5C to + 55C. The storage temperature is -40C to + 80C.
A9E21180 key specifications
rated frequency 50 / 60 Hz.
Ordering information for A9E21180
- Order code:
A9E21180 - Manufacturer: Schneider Electric
- Range: Acti 9 iRT, iRBN, iRLI, iRC
- GTIN / EAN: 3606480377495
- ETIM class: EC001441
- Datasheet: manufacturer datasheet for A9E21180
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480377495 |
| Range | Filter products by Acti 9 iRT, iRBN, iRLI, iRC |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001441 |
Electrical ratings
| Rated Frequency | Filter products by 50 / 60 Hz |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9E21180 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Acti 9 iRT range
4 itemsSame series, same mounting and the same documentation set.
More in the Acti 9 iRT range
4 items

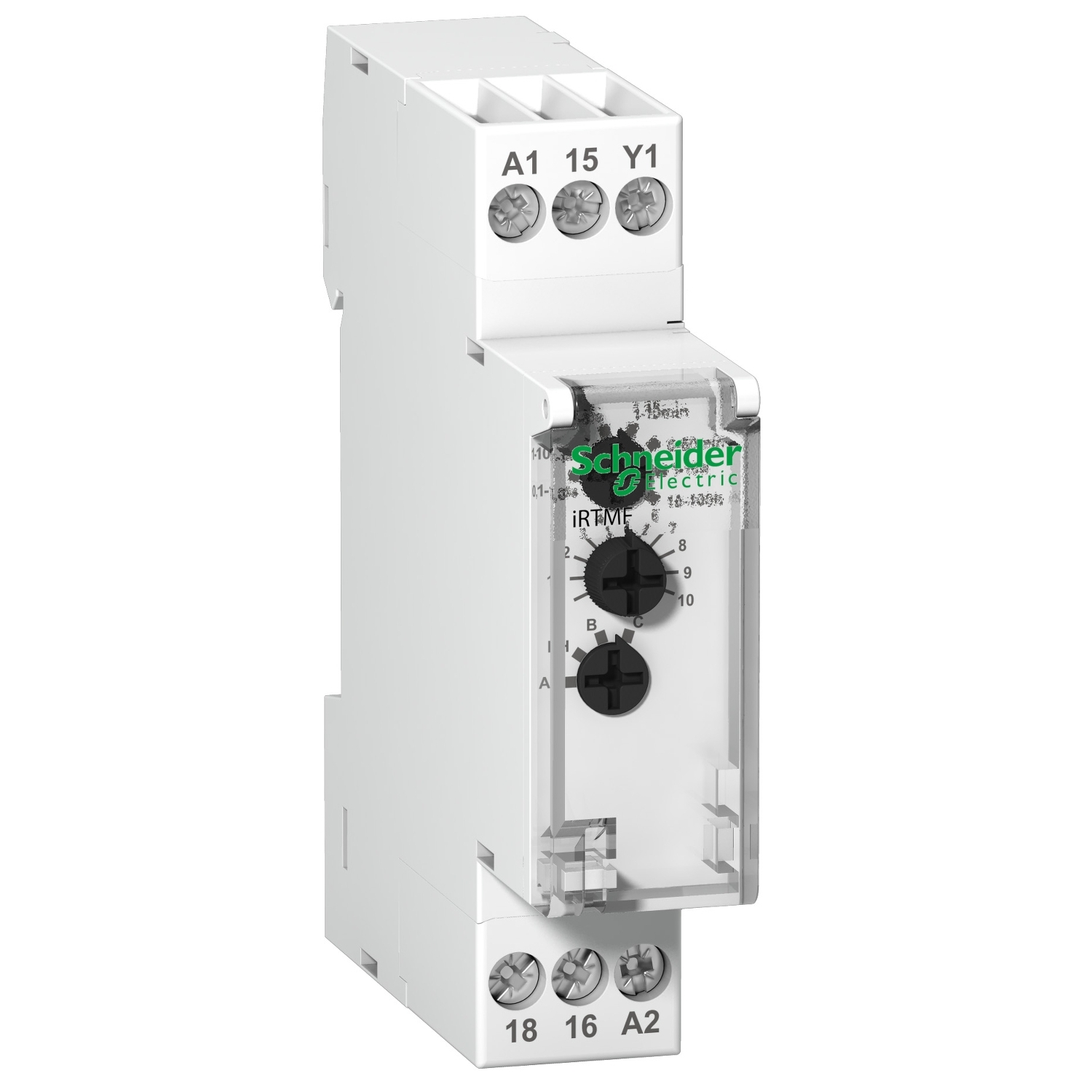

A9E16070IRTMF multifunction time delay relay – 1 OC – 12-240 VAC/DCList R1 633.47 Your price R1 110.76View product

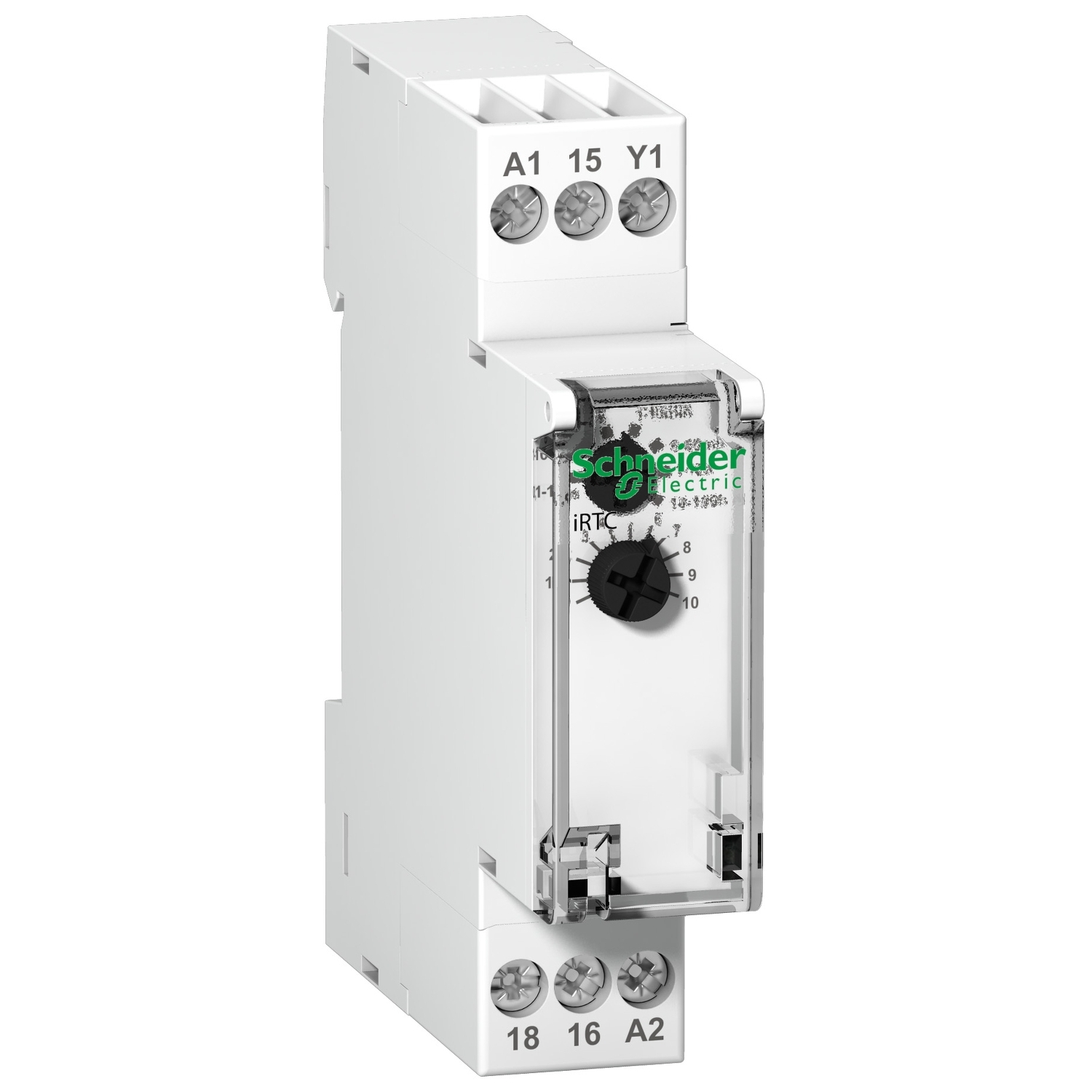

A9E16067IRTC relay- delays de-energizing a load upon opening- 1 O/C – Uc 24-240VAC/24VDCList R1 633.47 Your price R1 110.76View product
A9E16065IRTA relay – delays energizing of a load-1C/O – Uc 24-240 VAC/24VDCList R1 633.47 Your price R1 110.76View product
A9E15535Changeover relay iRLI 10A 2P Uc 230V-240VAC Ue 250VACList R1 019.65 Your price R693.36View product
Similar items
8 items
Similar items
8 items
CCT15940Acti9 – ITA – 4C yearly time switch – 24 hours + 7 days + yearList R6 167.01 Your price R4 193.57View product

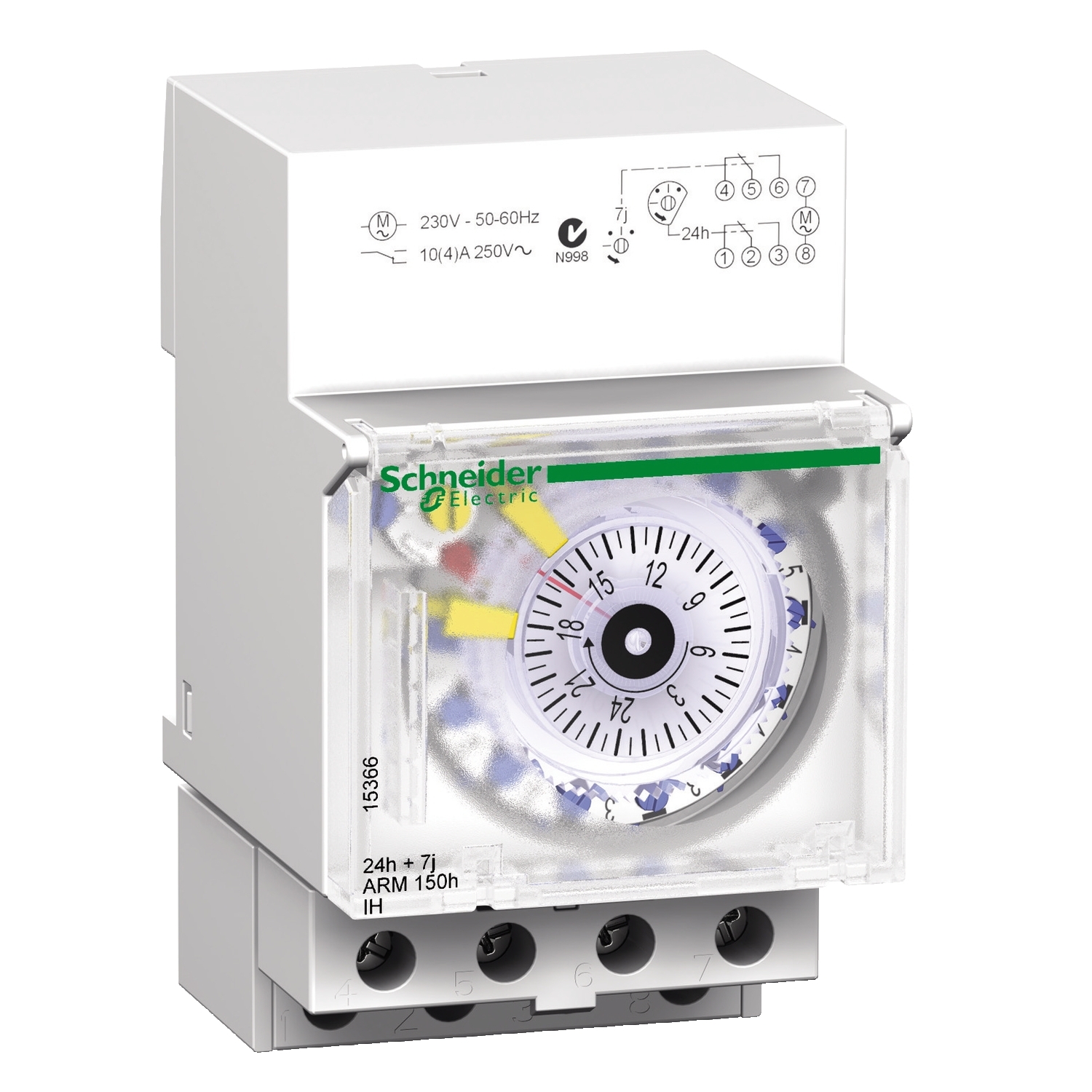

15366Acti9 – IH – mechanical time switch – 24 hours + 7 days – 150 h memoryList R4 503.73 Your price R3 062.54View product
15336Acti9 – IH – mechanical time switch – 24 h – 150 h memoryList R3 552.75 Your price R2 415.87View product
CCT15854Acti9 – IHP – 1C digital time switch – 24 hours + 7 daysList R3 449.48 Your price R2 345.65View product
CCT551012ARGUS Presence Dual-Tech – 2chList R3 228.65 Your price R2 195.48View product
RE22R2KMRHarmony, Modular timing relay, 5 A, 2 CO, 0.05 s…10 min, delay on de-energization, 24…240 V AC/DCList R2 374.34 Your price R1 614.55View product
RE22R2QEMTHarmony, Modular timing relay, 8 A, 2 CO, 0.3 s…30 s, star delta, 380…415 V AC/DCList R2 228.97 Your price R1 515.70View product
RE22R2DMRHarmony, Modular timing relay, 8 A, 2 CO, 0.05 s…300 h, symmetrical flashing, 24…240 V AC/DCList R1 972.17 Your price R1 341.08View product
More in Timers
8 items
More in Timers
8 items

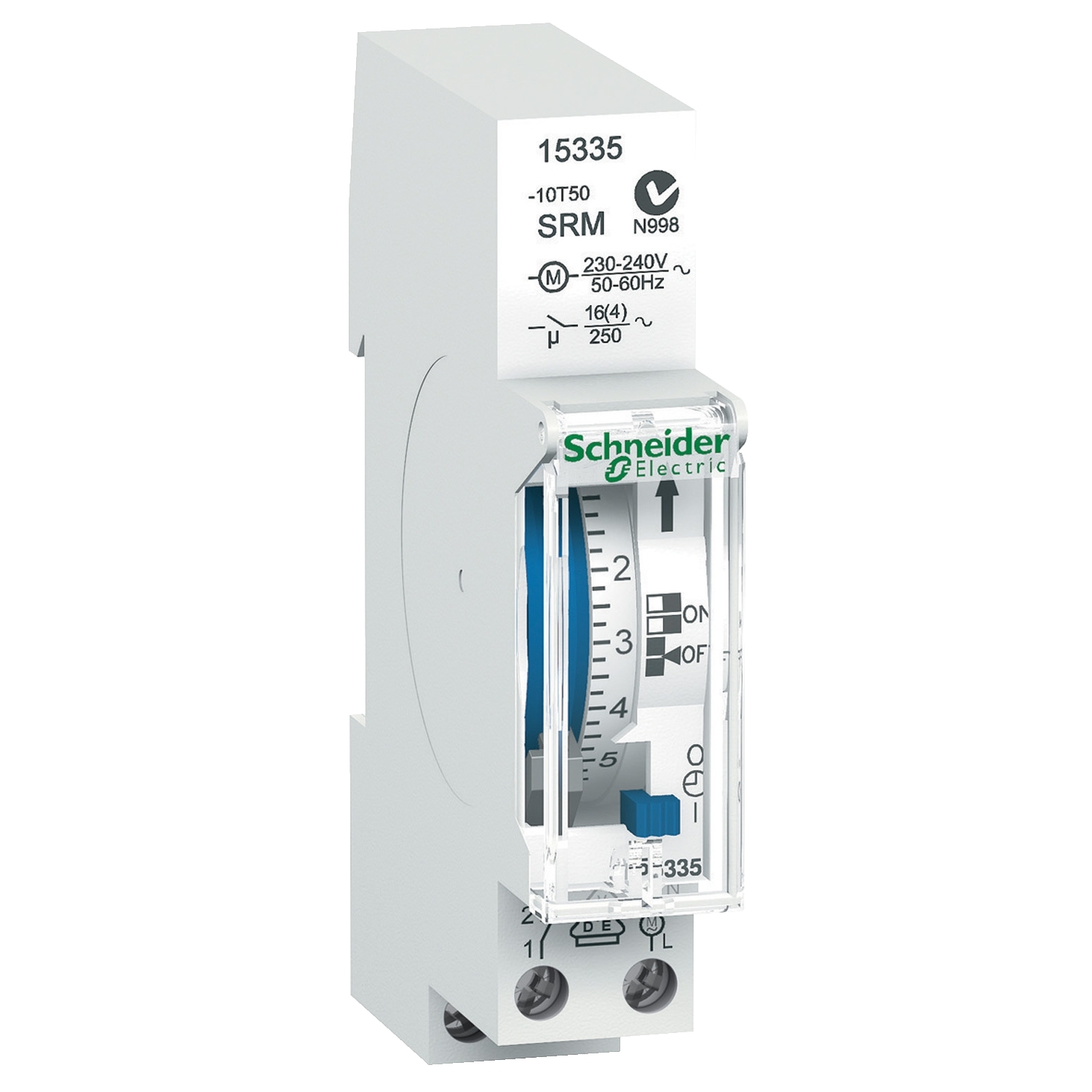

15335Acti9 – IH – mechanical time switch – 24 h – without memoryList R1 706.05 Your price R1 160.11View product
