Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

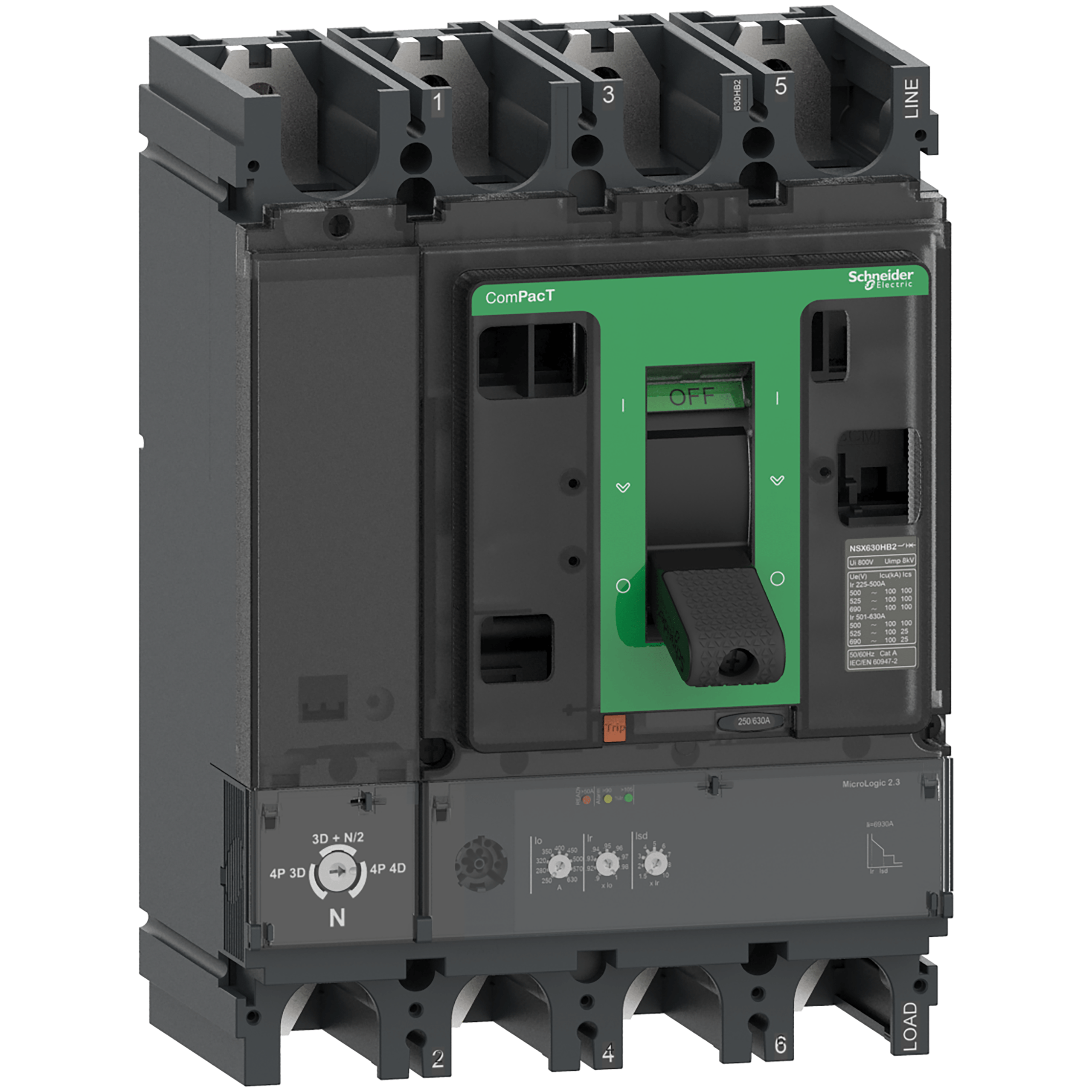

C63R42D630 – Circuit breaker ComPacT NSX630R, 200kA at 415VAC, MicroLogic 2.3 trip unit 630A, 4 poles 4d Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R53 123.55
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Circuit breaker ComPacT NSX630R, 200kA at 415VAC, MicroLogic 2.3 trip unit 630A, 4 poles 4d — Schneider Electric order code C63R42D630. Rated current 630 A; 4P 4d; breaking capacity 200 kA at 415 V AC; rated voltage 415 V.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
C63R42D630 — Circuit breaker ComPacT NSX630R, 200kA at 415VAC, MicroLogic 2.3 trip unit 630A, 4 poles 4d from the Schneider Electric ComPacT NSX (2021) range.
This ComPacT NSX630R is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 630A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630R is part of Schneider Electric EcoStruxure Power architecture.
Key specifications: rated current 630 A; 4P 4d; breaking capacity 200 kA at 415 V AC; rated voltage 415 V; fixed mounting.
Ordering information
- Order code:
C63R42D630 - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606481988911
- Supplied: each
- Weight: 7.92 kg
- ETIM class: EC000228
- Datasheet: manufacturer datasheet for C63R42D630
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 4P 4d |
|---|---|
| Rated current (Iu) | Filter products by 630 A |
| Rated voltage (Ue) | Filter products by 415 V |
| Operating Voltage | Filter products by 415VAC |
| Max Break Capacity | Filter products by 200 kA at 415 V AC |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by C63R42D630 |
| Iternational GTIN | Filter products by 3606481988911 |
