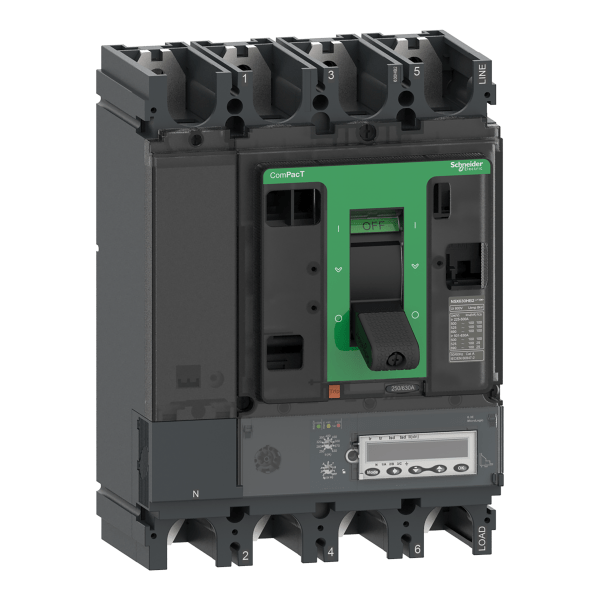

C40W46E400 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E trip unit 400A, 4 poles 4d Schneider Electric

C40W46E400 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E trip unit 400A, 4 poles 4d Schneider Electric This ComPacT NSX400HB2 is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 400A rating electronic MicroLogic 6.3 E trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.3 E trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 6.3 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB2 is part of Schneider Electric EcoStruxure Power architecture. Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E trip unit 400A, 4 poles 4d C40W46E400 – ComPacT NSX (2021)

C40W46E400 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E trip unit 400A, 4 poles 4d Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the ComPacT range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: ComPacT
• Amperage: 400A
• Voltage: 690VAC
• Poles: 4P
• Breaking Capacity: 100kA
• Mount Type: Fixed

Key Features

• Part of the ComPacT range
• Rated at 400A
• Suitable for 690VAC applications
• 4P configuration
• 100kA breaking capacity
• Fixed installation format

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
