Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

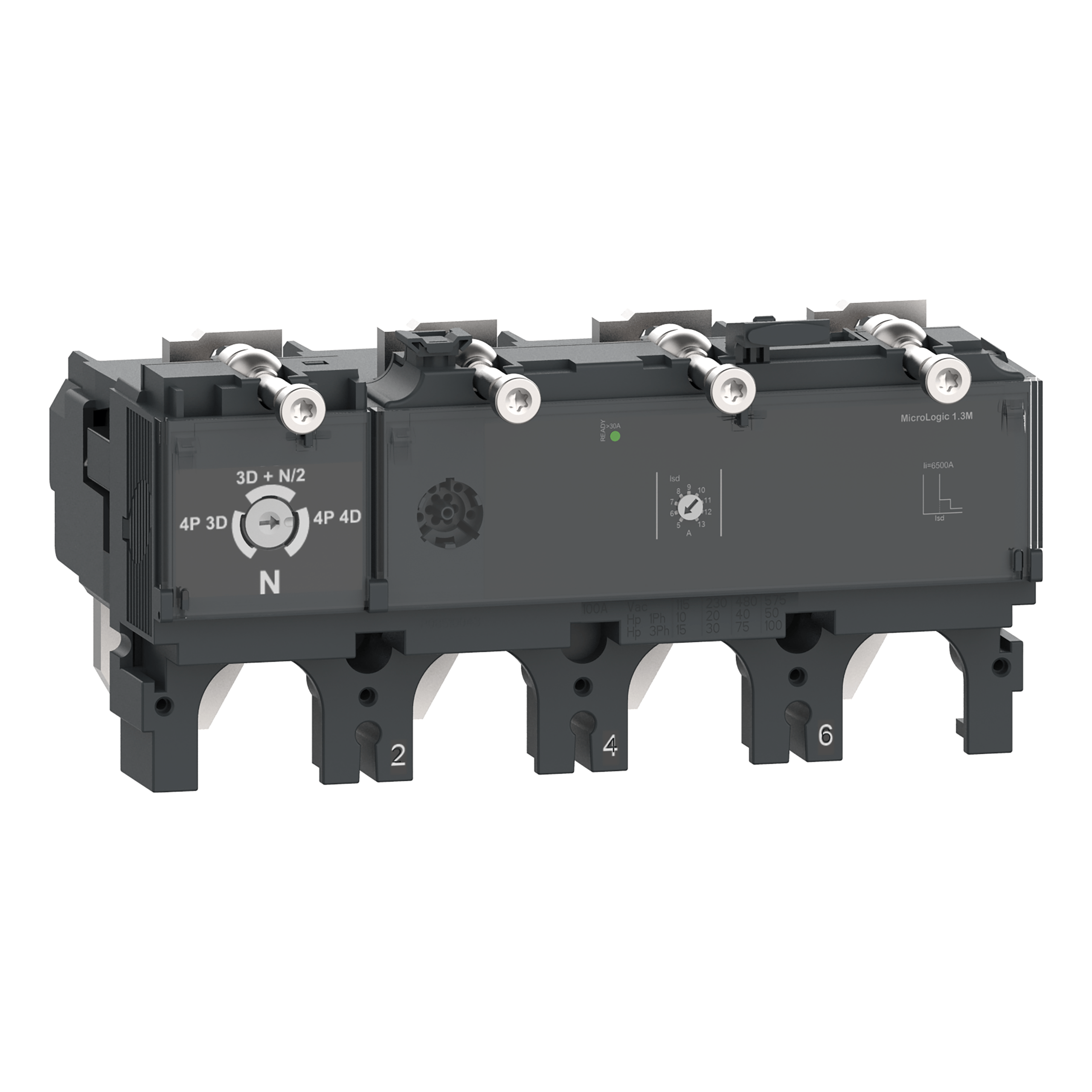

C6341M500 – Trip unit MicroLogic 1.3 M for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 4 poles 3d | Schneider Electric
Order code
List R4 284.00 Your price R2 913.12
Per unit · volume pricing available on request
excl. VAT R3 350.09 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Trip unit MicroLogic 1.3 M for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 4 poles 3d — Schneider Electric order code C6341M500. Rated current 500 A; 4P 3d; fixed mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Breaking capacityChoose10 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
C6341M500 — Trip unit MicroLogic 1.3 M for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 4 poles 3d from the Schneider Electric ComPacT NSX (2021) range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About C6341M500
This MicroLogic 1.3 M is a 4 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 500A rating electronic trip unit is an optimum choice for motor protection applications. It provides an adjustable short-time protection and a fixed instantaneous protection against short-circuits. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
C6341M500 key specifications
Key specifications: rated current 500 A; 4P 3d; fixed mounting.
Ordering information for C6341M500
- Order code:
C6341M500 - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606482003330
- Supplied: each
- Weight: 1.779 kg
- ETIM class: EC000617
- Datasheet: manufacturer datasheet for C6341M500
About the ComPacT NSX (2021) range
ComPacT NSX (2021) is a Schneider Electric range with 98 references listed on RMS-SE.Africa, from 250 A to 630 A.
C6341M500 — frequently asked questions
What is the rated current of C6341M500?
C6341M500 is rated 500 A.
How many poles does C6341M500 have?
C6341M500 is a 4P 3d device.
Where is the datasheet for C6341M500?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is C6341M500 a genuine Schneider Electric product?
Yes. C6341M500 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | C6341M500 – trip unit MicroLogic 1.3 M for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 4 poles 3d Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by ComPacT NSX |
| GTIN / EAN | 3606482003330 |
| Range | Filter products by ComPacT NSX (2021) |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000617 |
Electrical ratings
| Number of poles | Filter products by 4P 3d |
|---|---|
| Rated current (Iu) | Filter products by 500 A |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Trip unit | Filter products by MicroLogic 1.3 |
|---|---|
| Trip unit rating | Filter products by 500 A |
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
| SKU/Code/Partnumber | C6341M500 |
| Iternational GTIN | 3606482003330 |
