Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

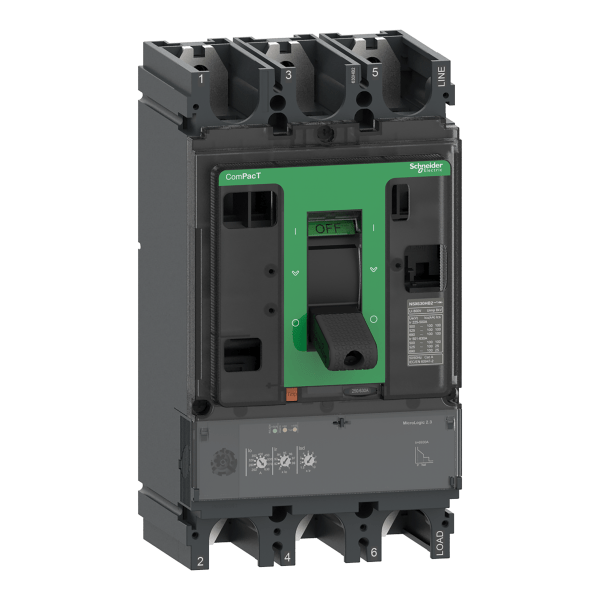

C63H32D630 – Circuit breaker ComPacT NSX630H, 70kA at 415VAC, MicroLogic 2.3 trip unit 630A, 3 poles 3d | Schneider Electric
Order code
List R22 312.00 Your price R15 172.16
Per unit · volume pricing available on request
excl. VAT R17 447.98 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Circuit breaker ComPacT NSX630H, 70kA at 415VAC, MicroLogic 2.3 trip unit 630A, 3 poles 3d — Schneider Electric order code C63H32D630. Rated current 630 A; 3P 3d; breaking capacity 70 kA at 415 V AC; rated voltage 415 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Breaking capacity70 kA at 415 V AC10 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
C63H32D630 — Circuit breaker ComPacT NSX630H, 70kA at 415VAC, MicroLogic 2.3 trip unit 630A, 3 poles 3d from the Schneider Electric ComPacT NSX (2021) range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About C63H32D630
This ComPacT NSX630H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 630A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630H is part of Schneider Electric EcoStruxure Power architecture.
C63H32D630 key specifications
Key specifications: rated current 630 A; 3P 3d; breaking capacity 70 kA at 415 V AC; rated voltage 415 V; fixed mounting.
Ordering information for C63H32D630
- Order code:
C63H32D630 - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606482002791
- Supplied: each
- Weight: 5.77 kg
- ETIM class: EC000228
- Datasheet: manufacturer datasheet for C63H32D630
About the ComPacT NSX (2021) range
ComPacT NSX (2021) is a Schneider Electric range with 98 references listed on RMS-SE.Africa, from 250 A to 630 A.
C63H32D630 — frequently asked questions
What is the rated current of C63H32D630?
C63H32D630 is rated 630 A.
How many poles does C63H32D630 have?
C63H32D630 is a 3P 3d device.
What is the breaking capacity of C63H32D630?
The catalogue states 70 kA at 415 V AC for C63H32D630. Check the datasheet for the value at your system voltage.
Where is the datasheet for C63H32D630?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is C63H32D630 a genuine Schneider Electric product?
Yes. C63H32D630 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | C63H32D630 – Circuit breaker ComPacT NSX630H, 70kA at 415VAC, MicroLogic 2.3 trip unit 630A, 3 poles 3d Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by ComPacT NSX |
| GTIN / EAN | 3606482002791 |
| Range | Filter products by ComPacT NSX (2021) |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000228 |
Electrical ratings
| Number of poles | Filter products by 3P 3d |
|---|---|
| Rated current (Iu) | Filter products by 630 A |
| Rated voltage (Ue) | Filter products by 415 V |
| Operating Voltage | Filter products by 415VAC |
| Max Break Capacity | Filter products by 70 kA at 415 V AC |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Breaking capacity icu | Filter products by 70 kA at 415 V |
|---|---|
| Trip unit | Filter products by MicroLogic 2.3 |
| Trip unit rating | Filter products by 630 A |
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
| SKU/Code/Partnumber | Search products for C63H32D630 |
| Iternational GTIN | 3606482002791 |
