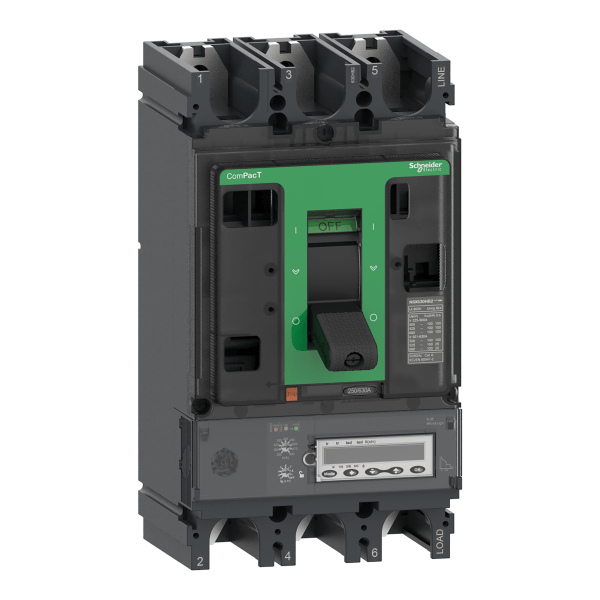

C40W36M320 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E-M trip unit 320A, 3 poles 3d | Schneider Electric
Order code
List R30 540.23 Your price R20 767.36
Per unit · volume pricing available on request
excl. VAT R23 882.46 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E-M trip unit 320A, 3 poles 3d — Schneider Electric order code C40W36M320. Rated current 320 A; 3P 3d; breaking capacity 100 kA at 690 V AC; rated voltage 690 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Breaking capacity100 kA at 690 V AC10 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
C40W36M320 — Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E-M trip unit 320A, 3 poles 3d from the Schneider Electric ComPacT NSX (2021) range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About C40W36M320
This ComPacT NSX400HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 320A rating electronic MicroLogic 6.3 E-M trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.3 E-M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. MicroLogic 6.3 E-M has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB2 is part of Schneider Electric EcoStruxure Power architecture.
C40W36M320 key specifications
Key specifications: rated current 320 A; 3P 3d; breaking capacity 100 kA at 690 V AC; rated voltage 690 V; fixed mounting.
Ordering information for C40W36M320
- Order code:
C40W36M320 - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606481989277
- Supplied: each
- Weight: 5.82 kg
- ETIM class: EC000074
- Datasheet: manufacturer datasheet for C40W36M320
About the ComPacT NSX (2021) range
ComPacT NSX (2021) is a Schneider Electric range with 98 references listed on RMS-SE.Africa, from 250 A to 630 A.
C40W36M320 — frequently asked questions
What is the rated current of C40W36M320?
C40W36M320 is rated 320 A.
How many poles does C40W36M320 have?
C40W36M320 is a 3P 3d device.
What is the breaking capacity of C40W36M320?
The catalogue states 100 kA at 690 V AC for C40W36M320. Check the datasheet for the value at your system voltage.
Where is the datasheet for C40W36M320?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is C40W36M320 a genuine Schneider Electric product?
Yes. C40W36M320 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | C40W36M320 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 6.3 E-M trip unit 320A, 3 poles 3d Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by ComPacT NSX |
| GTIN / EAN | 3606481989277 |
| Range | Filter products by ComPacT NSX (2021) |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000074 |
Electrical ratings
| Number of poles | Filter products by 3P 3d |
|---|---|
| Rated current (Iu) | Filter products by 320 A |
| Rated voltage (Ue) | Filter products by 690 V |
| Operating Voltage | Filter products by 690VAC |
| Max Break Capacity | Filter products by 100 kA at 690 V AC |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Breaking capacity icu | Filter products by 100 kA at 690 V / 85 kA at 500 V |
|---|---|
| Trip unit | Filter products by MicroLogic 6.3 |
| Trip unit rating | Filter products by 320 A |
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
| SKU/Code/Partnumber | Search products for C40W36M320 |
| Iternational GTIN | 3606481989277 |
