Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

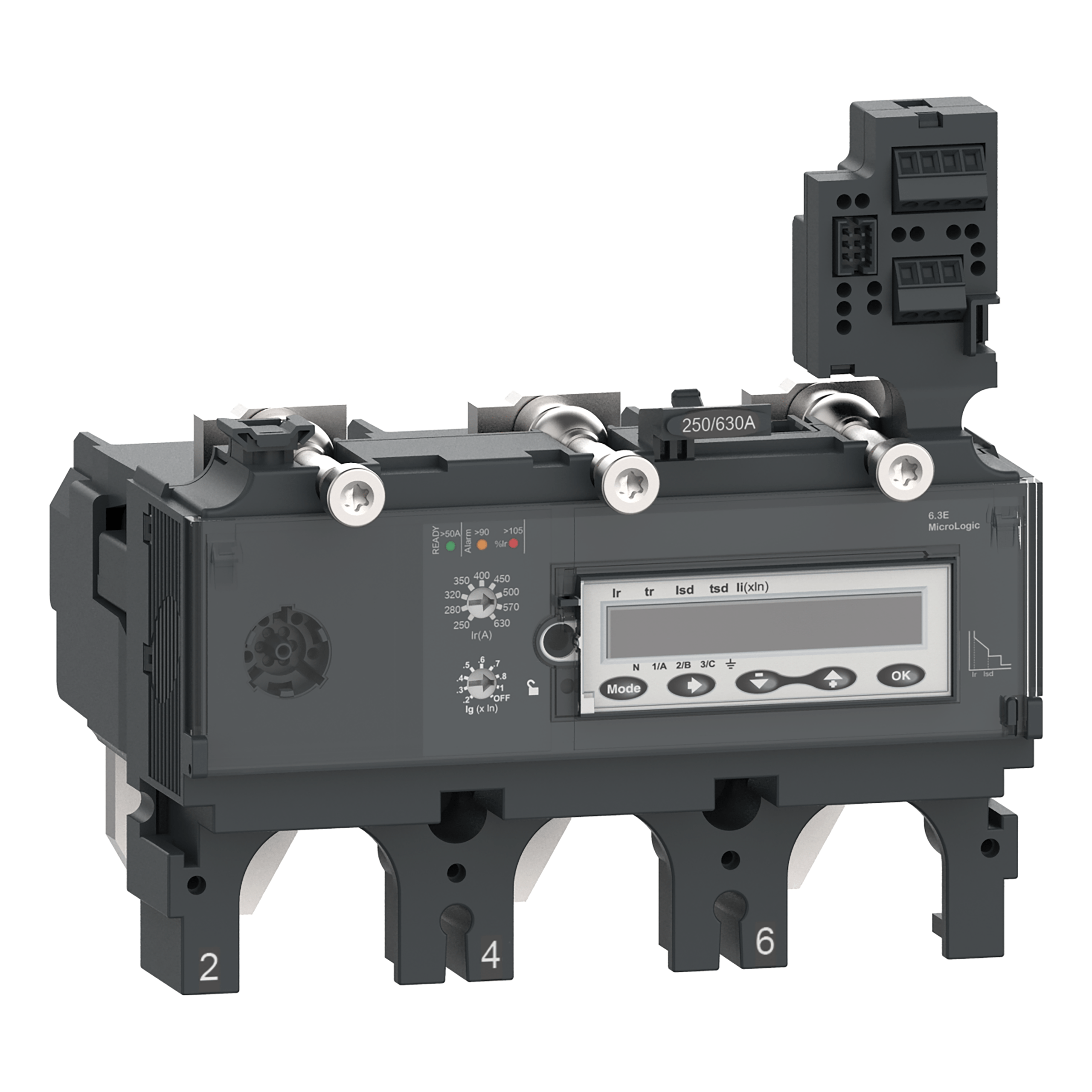

C6336M500 – trip unit MicroLogic 6.3 EM for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 3 poles 3d Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R9 687.74
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Trip unit MicroLogic 6.3 EM for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 3 poles 3d — Schneider Electric order code C6336M500. Rated current 500 A; 3P 3d; fixed mounting.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
C6336M500 — Trip unit MicroLogic 6.3 EM for ComPacT NSX 630 circuit breakers, electronic, rating 500 A, 3 poles 3d from the Schneider Electric ComPacT NSX (2021) range.
This MicroLogic 6.3 E-M (Energy) is a 3 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 500A rating electronic trip unit is an optimum choice for motor protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. It offers a phase unbalance or phase loss protection, and an additional and adjustable ground fault protection. MicroLogic 6.3 E-M indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 6.3 E-M is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
Key specifications: rated current 500 A; 3P 3d; fixed mounting.
Ordering information
- Order code:
C6336M500 - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606482003132
- Supplied: each
- Weight: 1.46 kg
- ETIM class: EC000617
- Datasheet: manufacturer datasheet for C6336M500
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P 3d |
|---|---|
| Rated current (Iu) | Filter products by 500 A |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by C6336M500 |
| Iternational GTIN | Filter products by 3606482003132 |
