Schneider ElectricEnergy Meters
A9MEM3100 – IEM3000 energy meter, 63 A | Schneider Electric
Order code
Select a variant in this series
- 63 A
- 125 A
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R5 195.27 Your price R3 532.78
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
IEM3000 energy meter, 63 A — Schneider Electric order code A9MEM3100.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9MEM3100 — IEM3000 energy meter, 63 A by Schneider Electric. Listed under Energy Meters on the Schneider Electric catalogue at RMS-SE.Africa.
About A9MEM3100
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, and per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. No primary communication ports. No secondary communication ports. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
Ordering information for A9MEM3100
- Order code:
A9MEM3100 - Manufacturer: Schneider Electric
- Range: iEM3000 series
- GTIN / EAN: 3606480481482
- ETIM class: EC001506
- Datasheet: manufacturer datasheet for A9MEM3100
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480481482 |
| Range | Filter products by iEM3000 series |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001506 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9MEM3100 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the iEM3000 series range
8 itemsSame series, same mounting and the same documentation set.
More in the iEM3000 series range
8 items
A9MEM3555IEM3555 energy meter – Modbus – 1 DI – 1 DO – multi-tariff – Rogowski coilList R9 646.18 Your price R6 559.40View product
A9MEM3455IEM3455 energy meter – Modbus – 1 DI – 1 DO – multi-tariff – LVCTList R8 640.11 Your price R5 875.27View product
A9MEM3375IEM3375 energy meter – 125 A – LON – 1 digital I – multi-tariff – MIDList R7 769.46 Your price R5 283.23View product
A9MEM3365IEM3365 energy meter – 125 A – BACnet – 1 digital I – 1 digital O – multi-tariff – MIDList R7 399.48 Your price R5 031.65View product
A9MEM3355IEM3355 energy meter, 125 A, Modbus, 1 digital I, 1 digital O, multi-tariff, MIDList R6 724.81 Your price R4 572.87View product
A9MEM3350IEM3350 energy meter, 125 A, ModbusList R6 299.08 Your price R4 283.37View product
A9MEM3335IEM3335 energy meter – 125 A – M-bus – 1 digital I – 1 digital O – multi-tariff – MIDList R7 189.12 Your price R4 888.60View product
A9MEM3310IEM3310 energy meter – 125 A – 1 pulse O – MIDList R5 840.51 Your price R3 971.55View product
Similar items
8 items
Similar items
8 items
A9MEM3110IEM3110 energy meter – 63 A – 1 pulse O – MIDList R5 118.79 Your price R3 480.78View product
A9MEM2135Modular single phase power meter iEM2135 – 230V – 63A with comm M-Bus – MIDList R4 996.45 Your price R3 397.59View product
A9MEM3250IEM3250 energy meter, CT, ModbusList R5 462.10 Your price R3 714.23View product
A9MEM2155Modular single phase power meter iEM2155 – 230V – 63A with comm Modbus – MIDList R4 900.10 Your price R3 332.07View product
A9MEM3210IEM3210 energy meter – CT – 1 pulse O – MIDList R4 778.92 Your price R3 249.67View product
A9MEM3215IEM3215 energy meter – CT – multi-tariff – MIDList R5 681.31 Your price R3 863.29View product
A9MEM3200IEM3200 energy meter – CTList R4 693.94 Your price R3 191.88View product

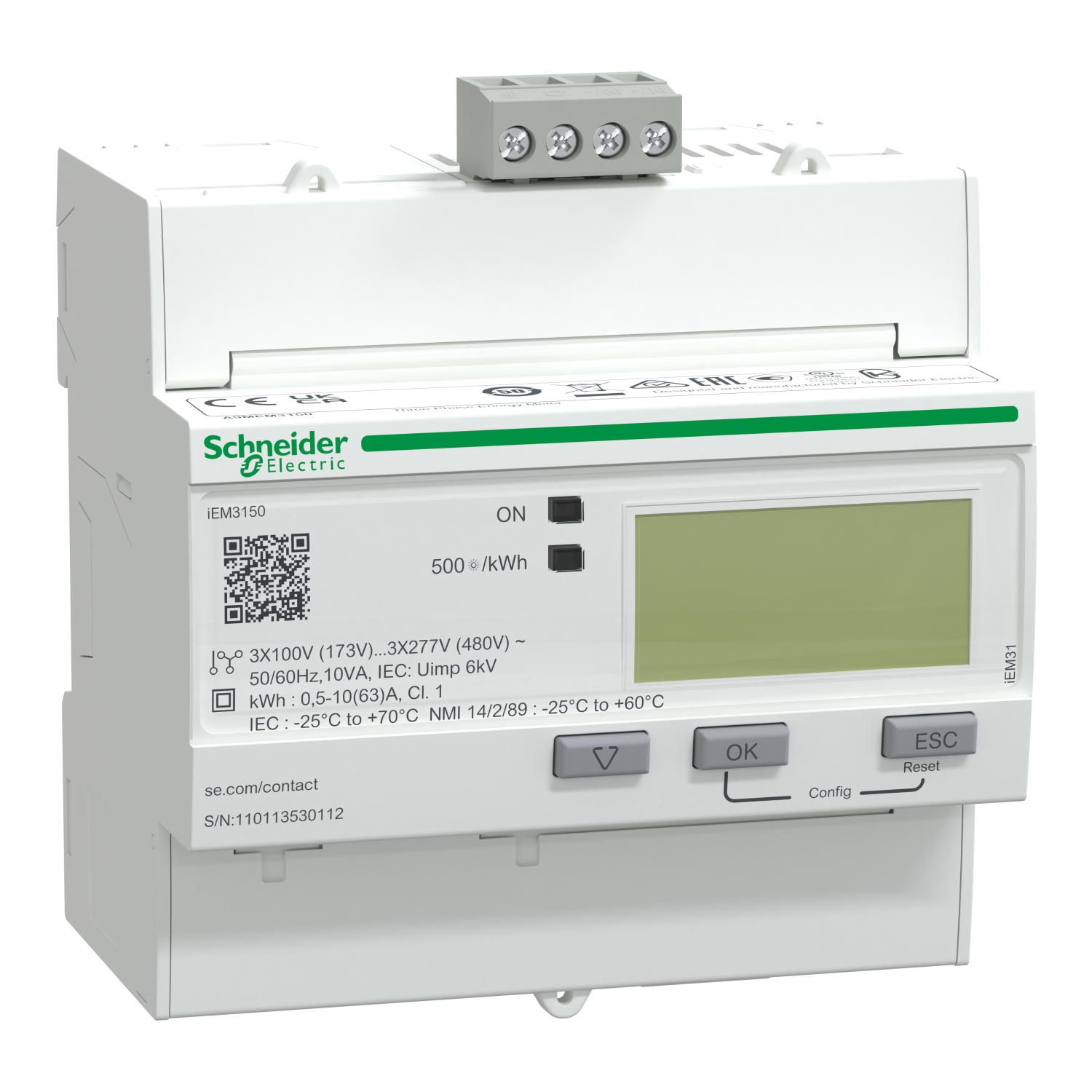

A9MEM3150A9MEM3150, iEM3150 energy meter, 63 A, ModbusList R5 717.00 Your price R3 887.56View product
More in Energy Meters
8 items
More in Energy Meters
8 items

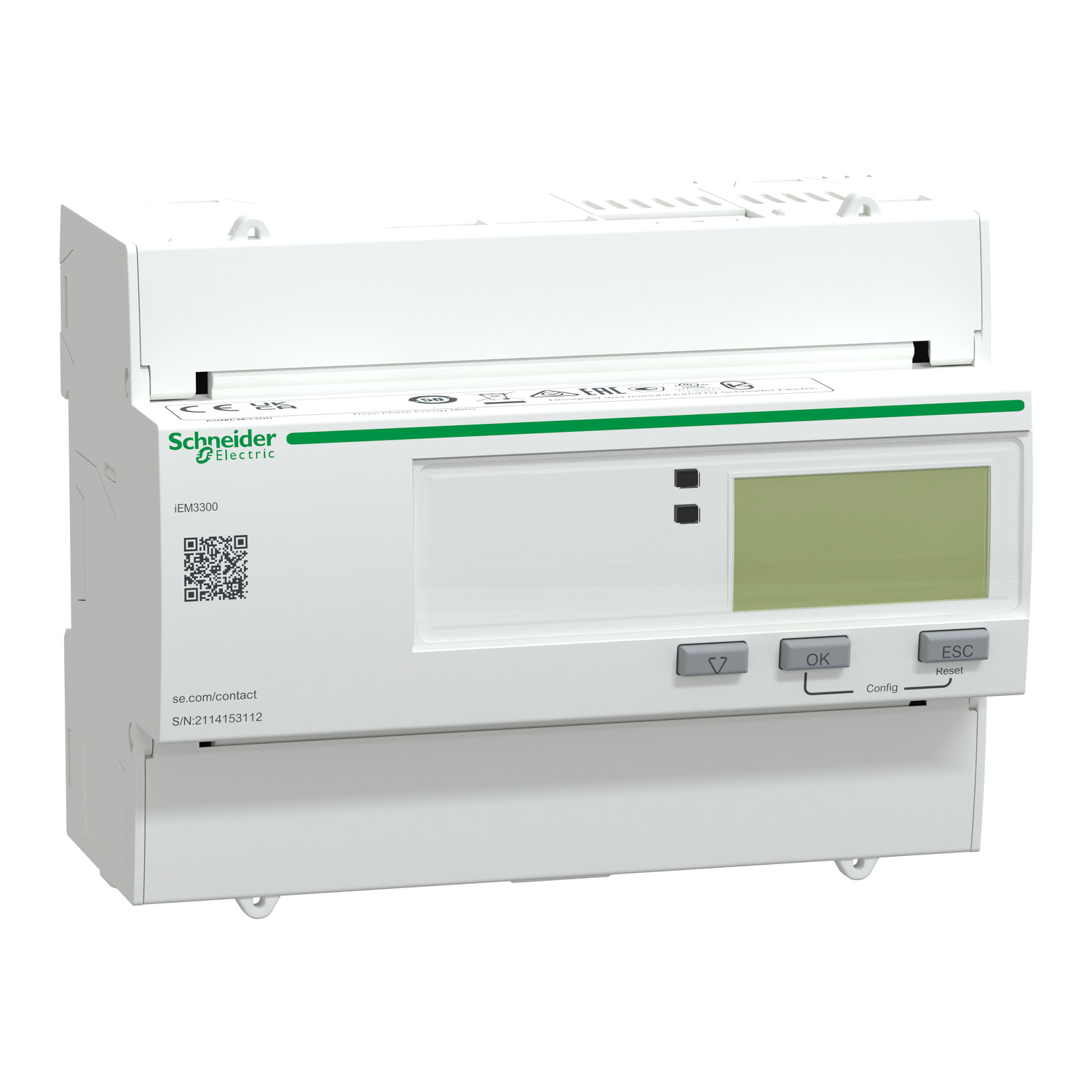

A9MEM3300IEM3300 energy meter – 125 AList R5 958.33 Your price R4 051.66View product

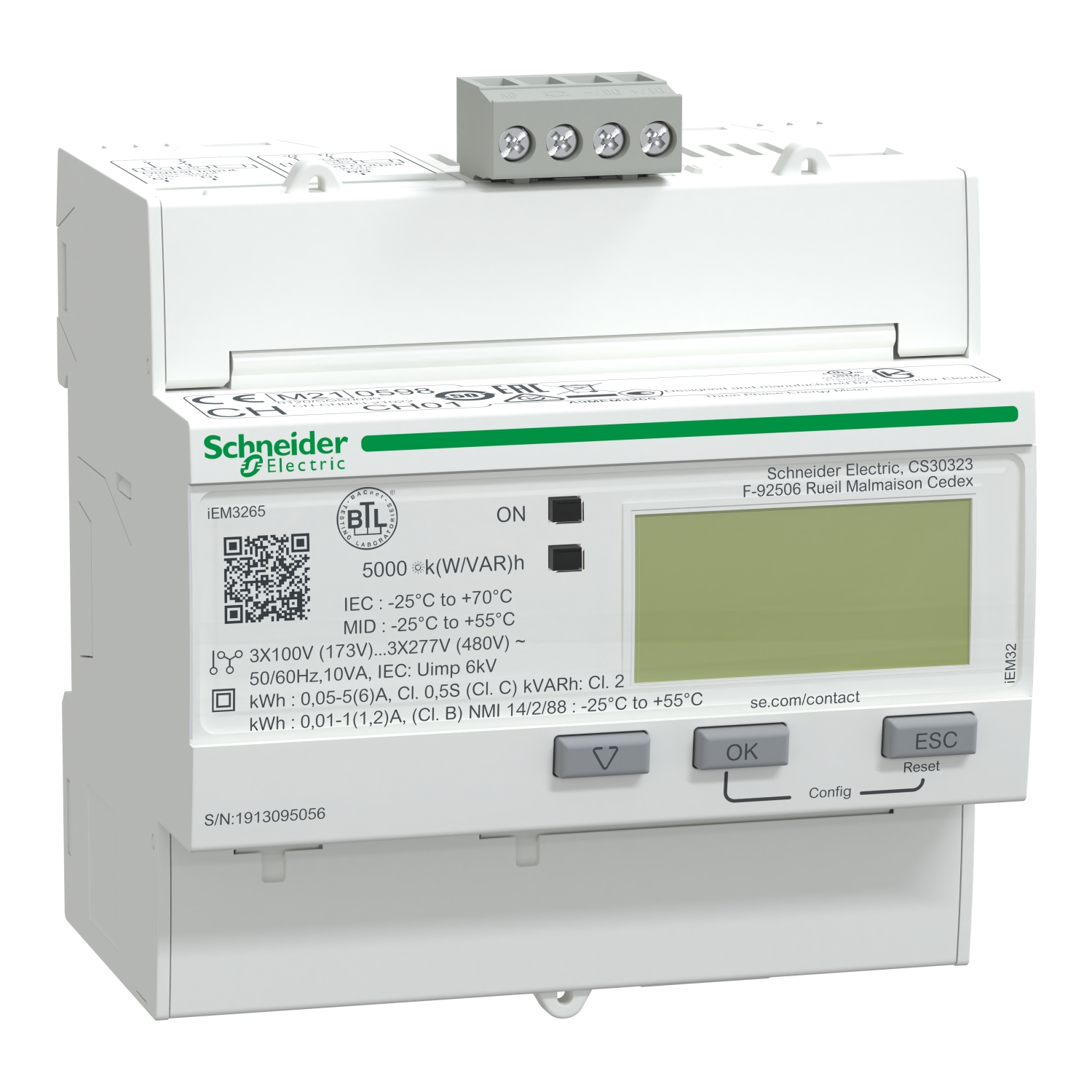

A9MEM3265IEM3265 energy meter – CT – BACnet – 1 digital I – 1 digital O – multi-tariff – MIDList R7 052.79 Your price R4 795.90View product
A9MEM3255A9MEM3255, iEM3255 energy meter, CT, Modbus, 1 digital I, 1 digital O, multi-tariff, MIDList R6 131.68 Your price R4 169.54View product

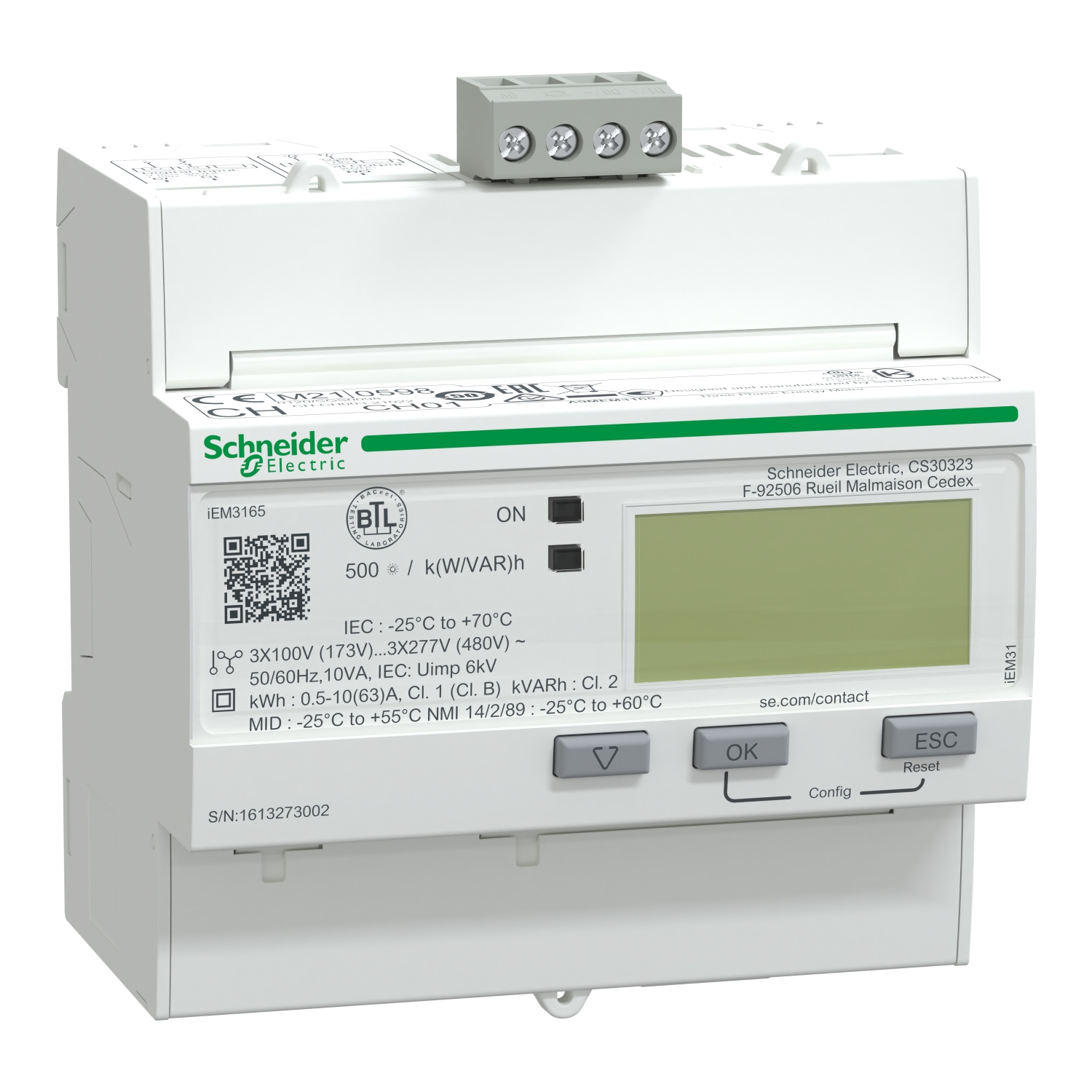

A9MEM3165IEM3165 energy meter – 63 A – BACnet – 1 digital I – 1 digital O – multi-tariff – MIDList R7 428.38 Your price R5 051.30View product
A9MEM3155A9MEM3155, iEM3155 energy meter, 63 A, Modbus, 1 digital I, 1 digital O, multi-tariff, MIDList R6 597.35 Your price R4 486.20View product
A9MEM3115IEM3115 energy meter – 63 A – 2 digital I – multi-tariff – MIDList R5 835.98 Your price R3 968.47View product
A9MEM2150Modular single phase power meter iEM2150 – 230V – 63A with comm ModbusList R4 362.98 Your price R2 966.83View product
A9MEM2110Modular single phase power meter iEM2110 – 230V – 63A with pulse – MIDList R4 015.00 Your price R2 730.20View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is A9MEM3100?
A9MEM3100 is the order code for IEM3000 energy meter, 63 A. It belongs to our Energy Meters range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
