TelemecaniqueUltrasonic Sensors

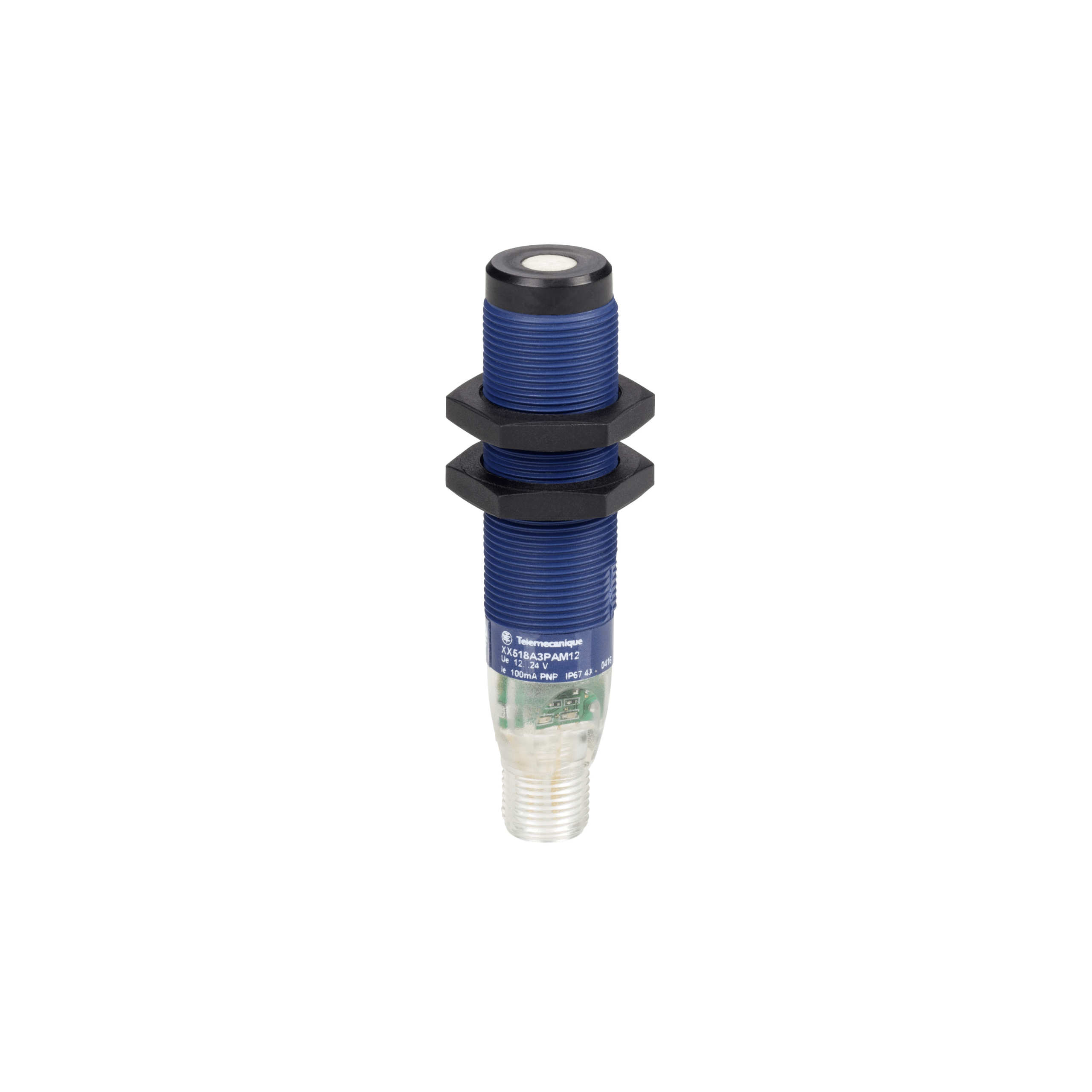

XX518A3PAM12 – Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, NO, M12 connector Telemecanique Sensors
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R4 719.60
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, NO, M12 connector — Telemecanique Sensors order code XX518A3PAM12. Rated voltage 12 V; IP67; surface mounting.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XX518A3PAM12 — Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, NO, M12 connector from the Telemecanique Sensors OsiSense XX range.
This cylindrical (diffuse system) ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Key specifications: rated voltage 12 V; IP67; surface mounting.
Ordering information
- Order code:
XX518A3PAM12 - Manufacturer: Telemecanique Sensors (formerly Telemecanique)
- Range: OsiSense XX
- GTIN / EAN: 3389110974645
- Supplied: each
- Weight: 0.046 kg
- ETIM class: EC001849
- Datasheet: manufacturer datasheet for XX518A3PAM12
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated voltage (Ue) | Filter products by 12 V |
|---|---|
| Operating Voltage | Filter products by 12V |
Mechanical & mounting
| Mounting | Filter products by surface |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP67 |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by XX518A3PAM12 |
|---|---|
| Iternational GTIN | Filter products by 3389110974645 |
| Mount Type | Filter products by Surface Mount |
More in the OsiSense XX range 8
Same series, same mounting and the same documentation set.
XXZKIT01Ultrasonic sensor configuration kit Telemecanique SensorsR26 095.73View product
XXZBOX01Ultrasonic sensor configuration interfaceR23 348.81View product
XXS18S1VM12Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 0 10 V, SYNC, connector M12 Telemecanique SensorsR9 097.80View product- XXS18S1PM12Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, PNP, SYNC, connector M12 Telemecanique SensorsR8 971.44View product
- XXS18S1AM12Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 Telemecanique SensorsR9 097.80View product
XXS18P1VM12Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 0 10 V, SYNC, connector M12 Telemecanique SensorsR8 592.37View product- XXS18P1PM12Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, PNP, SYNC, connector M12 Telemecanique SensorsR8 466.01View product
- XXS18P1AM12Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 Telemecanique SensorsR8 718.72View product
Similar items 7
XX7V1A1PAM12Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.5 m, NO, M12 connectorR5 055.56View product- XX918A3C2M12Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, 4…20 mA, M12 connectorR4 028.13View product
XX512A2PAM8Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, Sn 0.1 m, NO, M8 connectorR6 719.18View product- XX9V1A1F1M12Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.5 m, 0…10 V, M12 connectorR7 239.30View product
XXZPB100Teach mode pushbutton, selection of detection window, for ultrasonic sensorR1 246.96View product

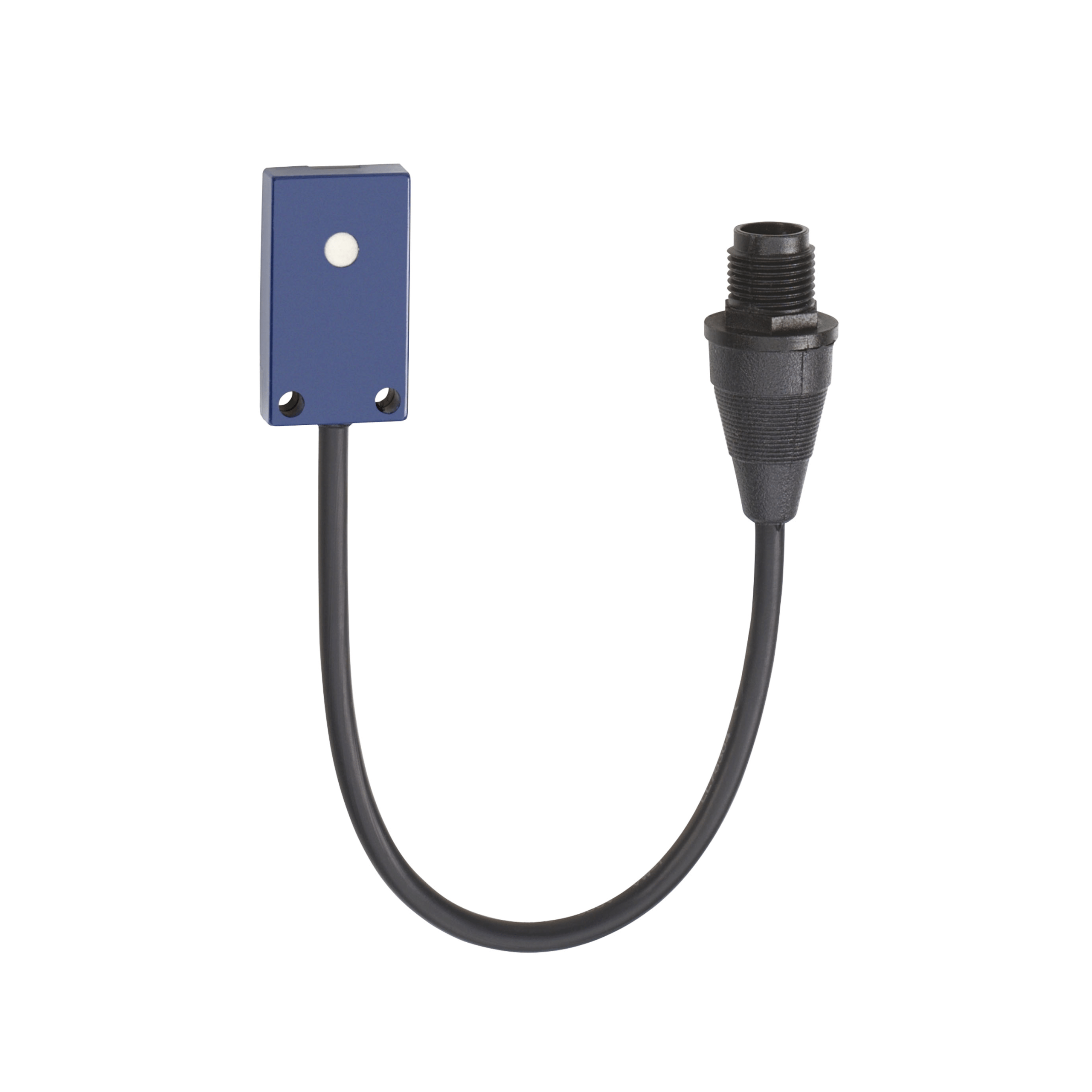

XX7F1A2PAL01M12Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.1 m, NO, pre cabled M12 0.15 m Telemecanique SensorsR8 364.37View product- XX7F1A2NAL01M12Ultrasonic sensors XX, ultrasonic sensor parallelepipedic, Sn 0.1 m, NO, pre cabled M12 0.15 m TelemecaniqueR8 364.37View product
