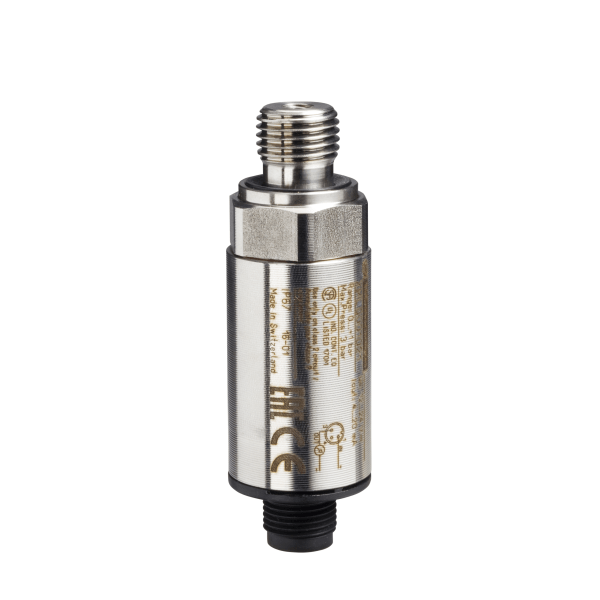

XMLG016D23 – Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0…16 bar, 1/4" NPT male, 24 V, 4…20 mA Telemecanique Sensors

XMLG016D23 – Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0…16 bar, 1/4″ NPT male, 24 V, 4…20 mA Telemecanique Sensors This product is part of the XM range, an offer of electronic pressure sensors. The electronic pressure sensor features a 1/4-18 NPT (male) for fluid connection. It is a pressure switch with a pressure setting range of 0bar to 16bar, a maximum permissible accidental pressure of 36bar and a destruction pressure of 40bar. It supports 4mA to 20mA, 2-wire analog output signal. It is furnished with 3-pin M12 male connector for electrical connection. It is an electronic pressure sensor with a rated supply voltage of 12V DC, 24V DC (voltage limits 8V to 33V) and a current consumption of <20mA. Its dimensions are 22.8mm (diameter) x 48.5mm (length) x 58.1mm (height). It weighs 0.095kg. It is suitable for monitoring air, fresh water, hydraulic oils and corrosive fluids. This product is certified by CSA C22.2 No 14, EAC and UL 508. It meets CE and EN/IEC 61326-2-3 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration. Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...16 bar, 1/4" NPT male, 24 V, 4...20 mA XMLG016D23 - OsiSense XM

XMLG016D23 – Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0…16 bar, 1/4" NPT male, 24 V, 4…20 mA Telemecanique Sensors is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Electronic range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Electronic
• Voltage: 24 V

Key Features

• Part of the Electronic range
• Suitable for 24 V applications

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects

Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.

How to order

Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.

Stock & lead time

Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.

Delivery

Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.
