Schneider ElectricPressure & Vacuum Switches

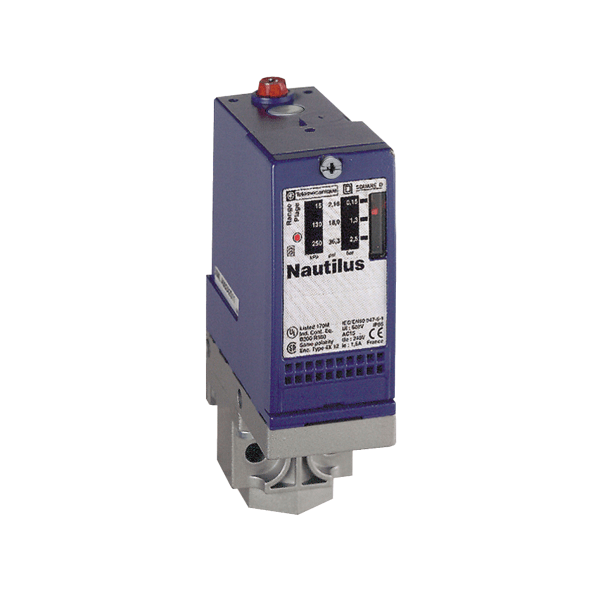

XMLA035A2S11 – XMLA035A2S11 – Pressure switch XMLA 35 bar – fixed scale 1 threshold – 1 C/O | Telemecanique Sensors
Order code
List R3 358.74 Your price R2 283.94
Per unit · volume pricing available on request
excl. VAT R2 626.53 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
XMLA035A2S11 – Pressure switch XMLA 35 bar – fixed scale 1 threshold – 1 C/O — Telemecanique Sensors order code XMLA035A2S11. Fixed mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XMLA035A2S11 — XMLA035A2S11 – Pressure switch XMLA 35 bar – fixed scale 1 threshold – 1 C/O from the Telemecanique Sensors OsiSense XM range. Listed under Pressure & Vacuum Switches on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About XMLA035A2S11
This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in air, fresh water, hydraulic oils, corrosive fluids and viscous products up to 70°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 5 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1.
XMLA035A2S11 key specifications
Key specifications: fixed mounting.
Ordering information for XMLA035A2S11
- Order code:
XMLA035A2S11 - Manufacturer: Telemecanique Sensors (formerly Telemecanique)
- Range: OsiSense XM
- GTIN / EAN: 3389110746730
- Supplied: each
- Weight: 0.704 kg
- ETIM class: EC000243
- Datasheet: manufacturer datasheet for XMLA035A2S11
About the OsiSense XM range
OsiSense XM is a Telemecanique Sensors range with 140 references listed on RMS-SE.Africa, from 3 A to 4 A.
XMLA035A2S11 — frequently asked questions
Where is the datasheet for XMLA035A2S11?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is XMLA035A2S11 a genuine Telemecanique Sensors product?
Yes. XMLA035A2S11 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | XMLA035A2S11 – XMLA035A2S11 – Pressure switch XMLA 35 bar – fixed scale 1 threshold – 1 C/O Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by OsiSense XM |
| GTIN / EAN | 3389110746730 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000243 |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Environment & protection
| Ambient air temperature | Filter products by 1 C |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| SKU/Code/Partnumber | XMLA035A2S11 |
|---|---|
| Iternational GTIN | 3389110746730 |
