XMLR100M2P05 – Electronic pressure sensors, Pressure sensors XM, XMLR 100 bar, G 1/4, 24 VDC, 2xPNP, M12 | Telemecanique Sensors
Order code
List R12 766.46 Your price R8 681.19
Per unit · volume pricing available on request
excl. VAT R9 983.37 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Electronic pressure sensors, Pressure sensors XM, XMLR 100 bar, G 1/4, 24 VDC, 2xPNP, M12 — Telemecanique Sensors order code XMLR100M2P05. Rated voltage 24 V DC; IP65.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
RatingChoose1 option
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
XMLR100M2P05 — Electronic pressure sensors, Pressure sensors XM, XMLR 100 bar, G 1/4, 24 VDC, 2xPNP, M12, a pressure and vacuum switch from the Telemecanique Sensors OsiSense XM range. Listed under Pressure & Vacuum Switches on the Telemecanique Sensors catalogue at RMS-SE.Africa.
About XMLR100M2P05
This product is part of the XM range, an offer of pressure sensors and switches. This electronic pressure sensor is used to control and measure pressure or vacuum levels in hydraulic or pneumatic systems. It supports 2 NO/NC programmable PNP discrete solid state output. It has 4 digits 7 segments display and 2 LEDs for local signalling. It supports a pressure setting range of 0bar to 100bar and maximum permissible accidental pressure of 300bar. It is furnished with 4-pin M12 male connector for electrical connection and G 1/4inch (female) for fluid connection. It is an electronic pressure sensor with a rated supply voltage of 24V DC (voltage limits 17V to 33V) and a current consumption of ≤50mA. It offers mechanical durability of about 10 million cycles. It is an IP65 and IP67 rated product. The electronic pressure sensor is made of fibreglass impregnated polyacrylamide body with 316L stainless steel fluid entry. Its dimensions are 41mm (width) x 42mm (depth) x 88mm (height) and weighs 0.186kg. This pressure switch is suitable for controlling fluids such as fresh water (0°C to 80°C), air (-20°C to 80°C), hydraulic oil (-20°C to 80°C) and refrigeration fluid (-20°C to 80°C). It is used for pressure control or monitoring on pumps. This product is certified by EAC, CULus and CE. It complies with UL 61010-1 and EN/IEC 61326-2-3 standards.
XMLR100M2P05 key specifications
Key specifications: rated voltage 24 V DC; IP65.
Ordering information for XMLR100M2P05
- Order code:
XMLR100M2P05 - Manufacturer: Telemecanique Sensors
- Range: OsiSense XM
- GTIN / EAN: 3389119611305
- Supplied: each
- Weight: 0.184 kg
- ETIM class: EC000243
- Datasheet: manufacturer datasheet for XMLR100M2P05
About the OsiSense XM range
OsiSense XM is a Telemecanique Sensors range with 140 references listed on RMS-SE.Africa, from 3 A to 4 A.
XMLR100M2P05 — frequently asked questions
Where is the datasheet for XMLR100M2P05?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Telemecanique Sensors publishes them.
Is XMLR100M2P05 a genuine Telemecanique Sensors product?
Yes. XMLR100M2P05 is supplied through the manufacturer’s authorised channel with the standard Telemecanique Sensors warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | XMLR100M2P05 – Electronic pressure sensors, Pressure sensors XM, XMLR 100 bar, G 1/4, 24 VDC, 2xPNP, M12 Telemecanique Sensors |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by OsiSense XM |
| GTIN / EAN | 3389119611305 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000243 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 24 V DC |
|---|---|
| Operating Voltage | Filter products by 24 VDC |
Environment & protection
| Degree of protection (IP) | Filter products by IP65 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| SKU/Code/Partnumber | XMLR100M2P05 |
|---|---|
| Iternational GTIN | 3389119611305 |
More in the OsiSense XM range
8 itemsSame series, same mounting and the same documentation set.
More in the OsiSense XM range
8 items
ZMLPA2P0SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 PNP, hysteresis, M12List R2 645.68 Your price R1 799.06View product
ZMLPA1P2SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, PNP, hysteresis, M12List R2 645.68 Your price R1 799.06View product
ZMLPA1P2SWElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, PNP, window, M12List R2 645.68 Your price R1 799.06View product- ZMLPA2N0SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 NPN, hysteresis, M12List R2 603.71 Your price R1 770.52View product
- ZMLPA1N2SWElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, NPN, window, M12List R2 603.71 Your price R1 770.52View product
- ZMLPA1N2SHElectronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4…20 mA, NPN, hysteresis, M12List R2 603.71 Your price R1 770.52View product
XMLR400M1P25Electronic pressure sensors, Pressure sensors XM, XMLR 400 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R11 086.67 Your price R7 538.94View product- XMLR600M1P25Electronic pressure sensors, Pressure sensors XM, XMLR 600 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R12 700.25 Your price R8 636.17View product
Similar items
6 items
Similar items
6 items- XMLR250M1P25Electronic pressure sensors, Pressure sensors XM, XMLR 250 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R12 700.25 Your price R8 636.17View product
- XMLR250M1P75Electronic pressure sensors, Pressure sensors XM, XMLR 250 bar, G 1/4, 24 VDC, 0…10 V, PNP, M12List R12 700.25 Your price R8 636.17View product
- XMLR100M1P25Electronic pressure sensors, Pressure sensors XM, XMLR 100 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R12 700.25 Your price R8 636.17View product
XMLR250M0T25Electronic pressure sensors, Pressure sensors XM, XMLR 250 bar, G 1/4, 24 VDC, 4…20 mA, M12List R11 695.59 Your price R7 953.00View product- XMLR400M1N25Electronic pressure sensors, Pressure sensors XM, XMLR 400 bar, G 1/4, 24 VDC, 4…20 mA, NPN, M12List R11 086.67 Your price R7 538.94View product
- XMLR250M2P05Electronic pressure sensors, Pressure sensors XM, XMLR 250 bar, G 1/4, 24 VDC, 2xPNP, M12List R10 965.54 Your price R7 456.57View product
More in Pressure & Vacuum Switches
8 items
More in Pressure & Vacuum Switches
8 items
XMLR2D5G1P25Electronic pressure sensors, Pressure sensors XM, XMLR 2,5 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R8 764.03 Your price R5 959.54View product- XMLR2D5G1P75Electronic pressure sensors, Pressure sensors XM, XMLR 2,5 bar, G 1/4, 24 VDC, 0…10 V, PNP, M12List R9 495.72 Your price R6 457.09View product
- XMLR040G1P25Electronic pressure sensors, Pressure sensors XM, XMLR 40 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R9 495.72 Your price R6 457.09View product
- XMLR010G1P25Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R9 495.72 Your price R6 457.09View product
- XMLR010G1P75Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, G 1/4, 24 VDC, 0…10 V, PNP, M12List R9 495.72 Your price R6 457.09View product

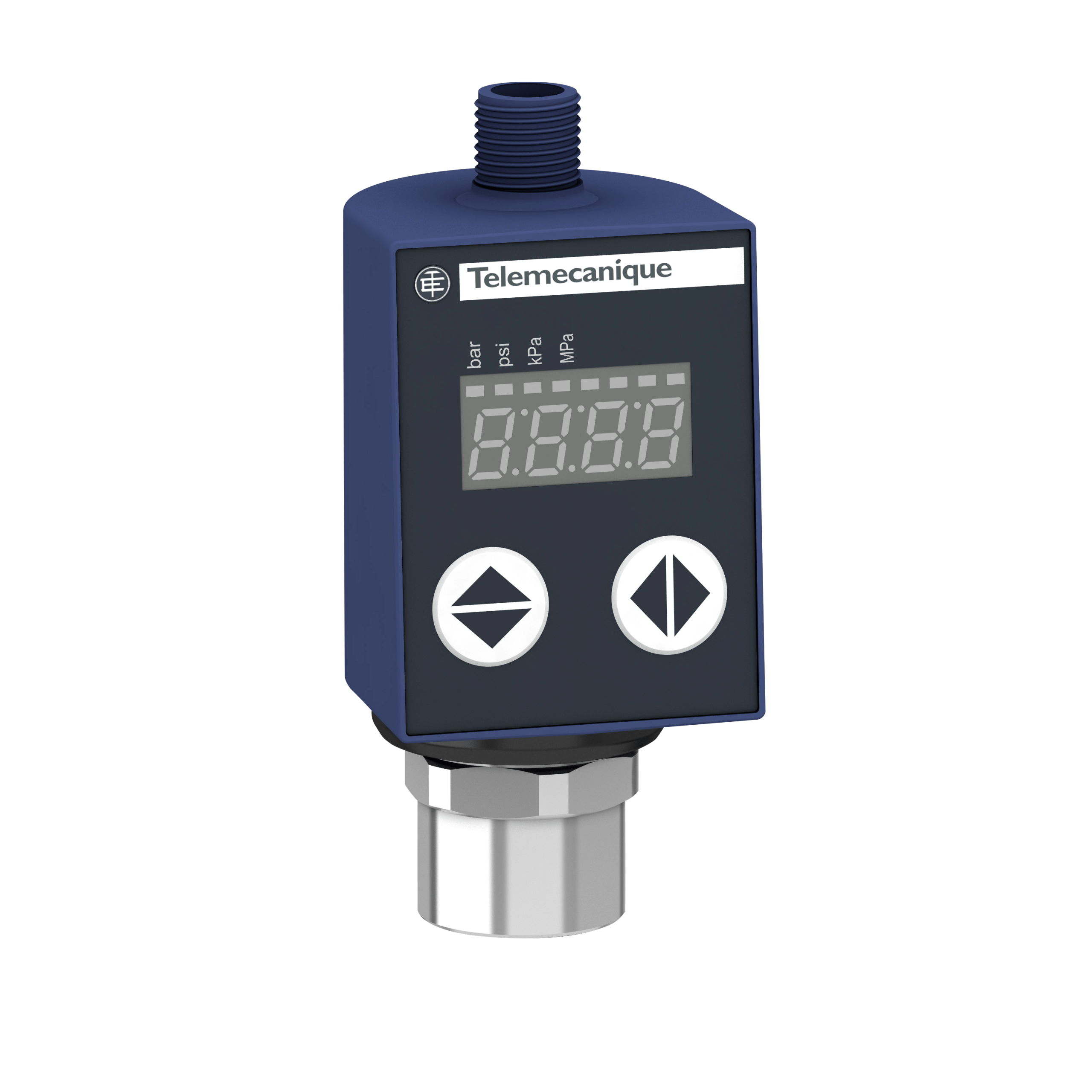

XMLR025G0T25Electronic pressure sensors, Pressure sensors XM, XMLR 25 bar, G 1/4, 24 VDC, 4…20 mA, M12List R9 894.66 Your price R6 728.37View product- XMLR025G1P25Electronic pressure sensors, Pressure sensors XM, XMLR 25 bar, G 1/4, 24 VDC, 4…20 mA, PNP, M12List R8 652.79 Your price R5 883.90View product
