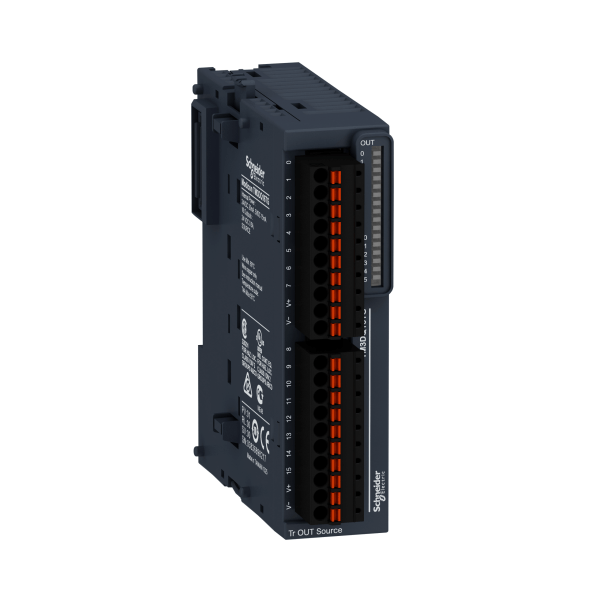

TM3DQ16TG – Discrete output module, Modicon TM3, 16 outputs transistor PNP (spring) Schneider Electric
Order code
Original price was: R4 408.00.R2 997.44Current price is: R2 997.44.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – Discrete output module, Modicon TM3, 16 outputs transistor PNP (spring) – Modicon TM3 | TM3DQ16TG
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
TM3DQ16TG – Discrete output module, Modicon TM3, 16 outputs transistor PNP (spring) Schneider Electric This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.095kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers. Discrete output module, Modicon TM3, 16 outputs transistor PNP (spring) TM3DQ16TG – Modicon TM3
TM3DQ16TG – Discrete output module, Modicon TM3, 16 outputs transistor PNP (spring) Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the Discrete range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: Discrete
- Voltage: 24V
- IP Rating: IP20
Key Features
- Part of the Discrete range
- Suitable for 24V applications
- IP20 ingress protection
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Metering | Power Monitoring Systems | Human-Machine Interface basic
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated voltage (Ue) | Filter products by 24V |
|---|---|
| Rated operational voltage | Filter products by 24V |
| Operating Voltage | Filter products by 24V |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Human-Machine Interface basic, Filter products by Power Monitoring Systems |
|---|---|
| SKU/Code/Partnumber | Filter products by TM3DQ16TG |
| Iternational GTIN | Filter products by 3606480611490 |
Quick answers
What is TM3DQ16TG?
TM3DQ16TG is the order code for TM3DQ16TG – Discrete output module, Modicon TM3, 16 outputs transistor PNP (spring) Schneider Electric. It belongs to our 7 Industry Programmable range. RMS-SE.Africa supplies it as an authorised Schneider Electric distributor, so it is genuine product with the manufacturer's warranty.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
