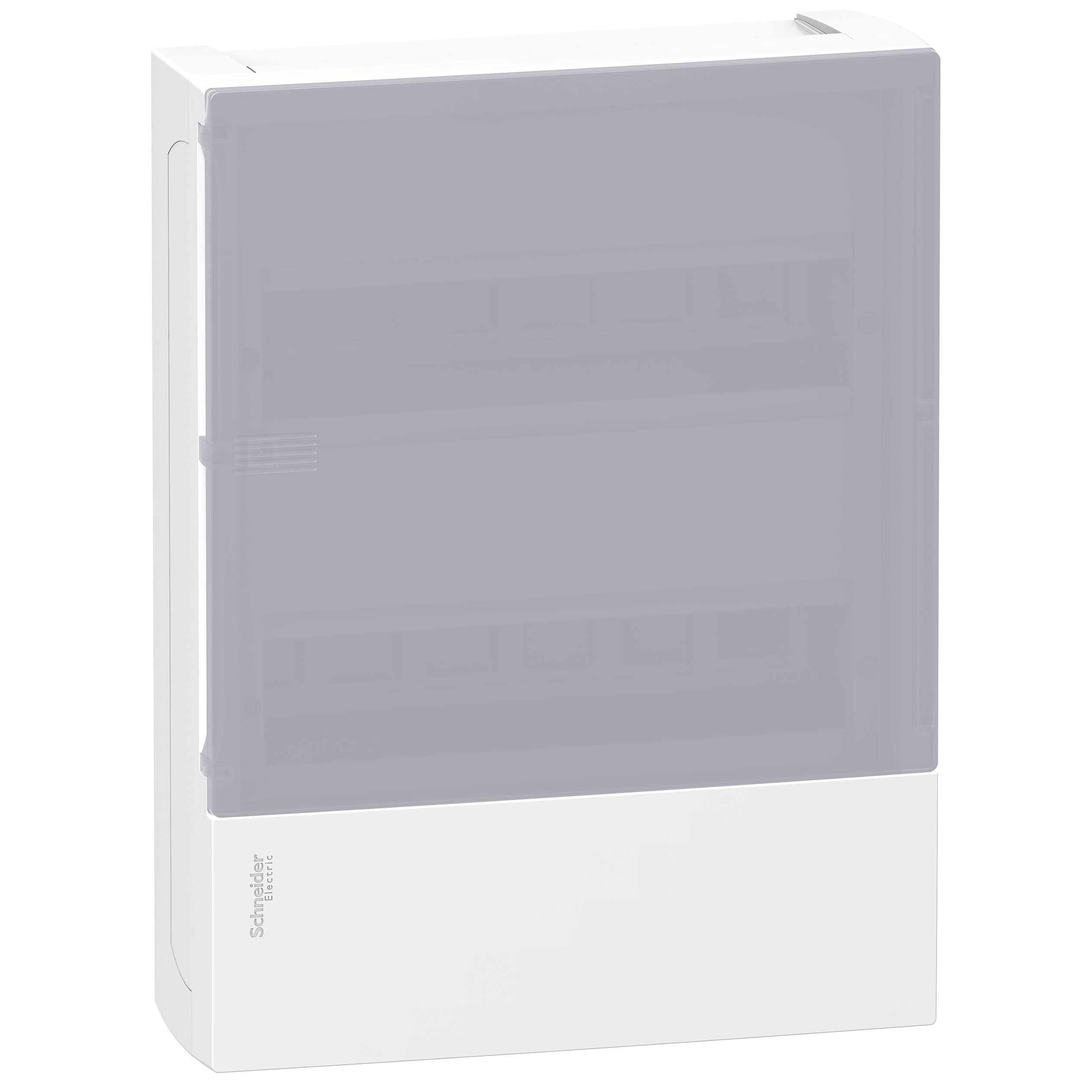

Enclosure, Resi9 MP, surface mounting, 2 rows of 12 modules, IP40, translucid door, 1 earth + 1 neutral terminal blocks Schneider Electric

Key specifications
Rated current (Iu)	Filter products by 63 A
Degree of protection (IP)	Filter products by IP40
Product Series	Filter products by mini Pragma
Mounting	Filter products by surface

Schneider Electric Distribution Boards & Enclosures

MIP12212T – Enclosure, Resi9 MP, surface mounting, 2 rows of 12 modules, IP40, translucid door, 1 earth + 1 neutral terminal blocks Schneider Electric

Order code

Ratings in this range

63 A
63 A

List price

R1 164.56

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

Enclosure, Resi9 MP, surface mounting, 2 rows of 12 modules, IP40, translucid door, 1 earth + 1 neutral terminal blocks — Schneider Electric order code MIP12212T. Rated current 63 A; IP40; surface mounting; 12 modules wide.

Ordering & delivery

Contact us for bulk pricing, lead times and ordering codes.
Minimum order: 1 unit.
Manufacturer's standard warranty applies.
Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.

Authorised Schneider Electric distributor
Genuine product with manufacturer warranty
Formal quotations with written lead times

Overview

MIP12212T — Enclosure, Resi9 MP, surface mounting, 2 rows of 12 modules, IP40, translucid door, 1 earth + 1 neutral terminal blocks from the Schneider Electric mini Pragma range.

This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a translucid door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The neutral one provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 268mm x (H) 353mm x (D) 102mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.

Key specifications: rated current 63 A; IP40; surface mounting; 12 modules wide.

Ordering information

Order code: MIP12212T
Manufacturer: Schneider Electric
Range: mini Pragma
GTIN / EAN: 3606480147906
Supplied: each
Weight: 1.205 kg
ETIM class: EC000214
Datasheet: manufacturer datasheet for MIP12212T

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Product Name	Filter products by MIP12212T – Enclosure, Resi9 MP, surface mounting, 2 rows of 12 modules, IP40, translucid door, 1 earth + 1 neutral terminal blocks Schneider Electric
Brand	Filter products by Schneider Electric
Product Series	Filter products by mini Pragma
GTIN / EAN	Filter products by 3606480147906
Lifecycle status	Filter products by Current
ETIM class	Filter products by EC000214

Electrical ratings

Number of modules	Filter products by 12
Rated current (Iu)	Filter products by 63 A

Mechanical & mounting

Mounting	Filter products by surface

Environment & protection

Degree of protection (IP)	Filter products by IP40

Other specifications

Related Categories	Filter products by Plug – in Relays, Filter products by Timers & Control Relays
SKU/Code/Partnumber	Filter products by MIP12212T
Iternational GTIN	Filter products by 3606480147906
Mount Type	Filter products by Surface Mount

More in the mini Pragma range

Same series, same mounting and the same documentation set.

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Category browseBrowse comparable Distribution Boards & Enclosures at RMS-ABB.Africa (opens in a new tab)
A category listing, not a confirmed equivalent. Ask us to confirm a match before ordering.
Category browseBrowse comparable Distribution Boards & Enclosures at RMS-EM.Africa (opens in a new tab)
A category listing, not a confirmed equivalent. Ask us to confirm a match before ordering.

Quick answers

What is MIP12212T?

MIP12212T is the order code for MIP12212T – Enclosure, Resi9 MP, surface mounting, 2 rows of 12 modules, IP40, translucid door, 1 earth + 1 neutral terminal blocks Schneider Electric. It belongs to our Distribution Boards & Enclosures range. RMS-SE.Africa supplies it as an authorised Schneider Electric distributor, so it is genuine product with the manufacturer's warranty.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
