Schneider Electric4 Large building ConfigurableAir Circuit breakers (ACB's)Configurable

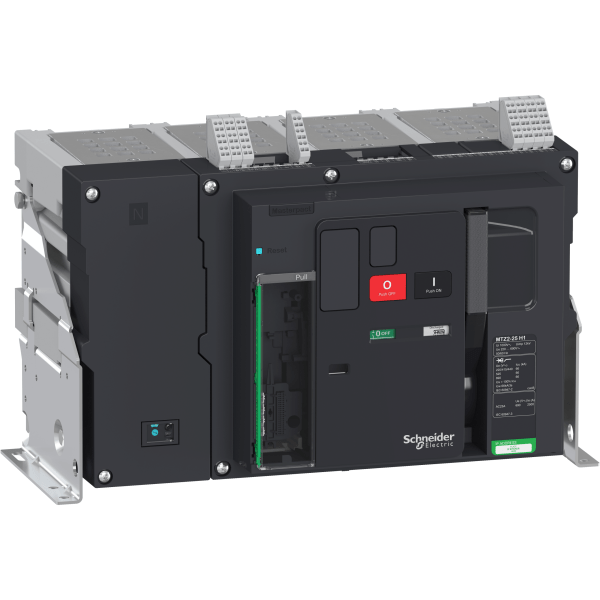

LV848076 – circuit breaker basic frame, Masterpact MTZ2 25H1, 2500 A, 66 kA at 440 VAC 50/60 Hz, 4 poles, fixed, without Micrologic
Order code
Original price was: R122 660.00.R83 408.80Current price is: R83 408.80.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – circuit breaker basic frame, Masterpact MTZ2 25H1, 2500 A, 66 kA at 440 VAC 50/60 Hz, 4 poles, fixed, without Micrologic – Masterpact MTZ | LV848076
Accessories & add-ons 4
- PowerLogic PM8000 – PM8243 DIN rail mount meter – intermediate meteringMETSEPM8243 Original price was: R40 519.00.R32 415.20Current price is: R32 415.20.Add
- PowerLogic PM8000 – PM8244 DIN rail mount meter + Remote display – int. meteringMETSEPM8244 Original price was: R50 292.00.R40 233.60Current price is: R40 233.60.Add
- PowerLogic PM8000 – PM8214 LV DC – DIN rail mount meter + Remote display – int. Schneider ElectricMETSEPM8214 Original price was: R53 814.00.R43 051.20Current price is: R43 051.20.Add
- PowerLogic PM8000 – PM8213 LV DC – DIN rail mount meter – intermediate meteringMETSEPM8213R37 746.88Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV848076 – circuit breaker basic frame, Masterpact MTZ2 25H1, 2500 A, 66 kA at 440 VAC 50/60 Hz, 4 poles, fixed, without Micrologic Schneider Electric This is a basic frame for 4 poles Masterpact MTZ2 25H1 fixed circuit breaker. Masterpact MTZ is the last generation of high current air circuit breakers up to 6300 A embedding advanced digital technologies. Masterpact MTZ is designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults. The breaking capacity (Icu) is 66kA rms at 440VAC 50/60Hz. The rated current is 2500A. The basic frame must be associated with the corresponding chassis which has also to be ordered separately. This basic frame is compatible with Micrologic X control unit which has to be ordered separately. With Micrologic X control unit, Masterpact MTZ contributes to safety and energy efficiency. It can be equipped with a variety of optional functions and accessories. The dimensions are 537mm (W) x 352mm (H) x 300mm (D). It ensures compliance with international standards (IEC 60947), UL489, CCC, EAC and marine specifications. Masterpact MTZ and Micrologic X are part of EcoStruxure architecture system. circuit breaker basic frame, Masterpact MTZ2 25H1, 2500 A, 66 kA at 440 VAC 50/60 Hz, 4 poles, fixed, without Micrologic LV848076 – Masterpact MTZ
LV848076 – circuit breaker basic frame, Masterpact MTZ2 25H1, 2500 A, 66 kA at 440 VAC 50/60 Hz, 4 poles, fixed, without Micrologic Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the Masterpact range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: Masterpact
- Amperage: 2500 A
- Voltage: 440 VAC
- Breaking Capacity: 66 kA
- Mount Type: Fixed
Key Features
- Part of the Masterpact range
- Rated at 2500 A
- Suitable for 440 VAC applications
- 66 kA breaking capacity
- Fixed installation format
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Metering | Power Capacitors For PF Correction
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 2500 A |
|---|---|
| Rated voltage (Ue) | Filter products by 440 VAC |
| Rated operational voltage | Filter products by 440 VAC |
| Operating Voltage | Filter products by 440 VAC |
| Rated Frequency | Filter products by 60 Hz |
| Max Break Capacity | Filter products by 66 kA |
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV848076 |
| Iternational GTIN | Filter products by 3606480808449 |
| Mount Type | Filter products by Fixed |
