Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

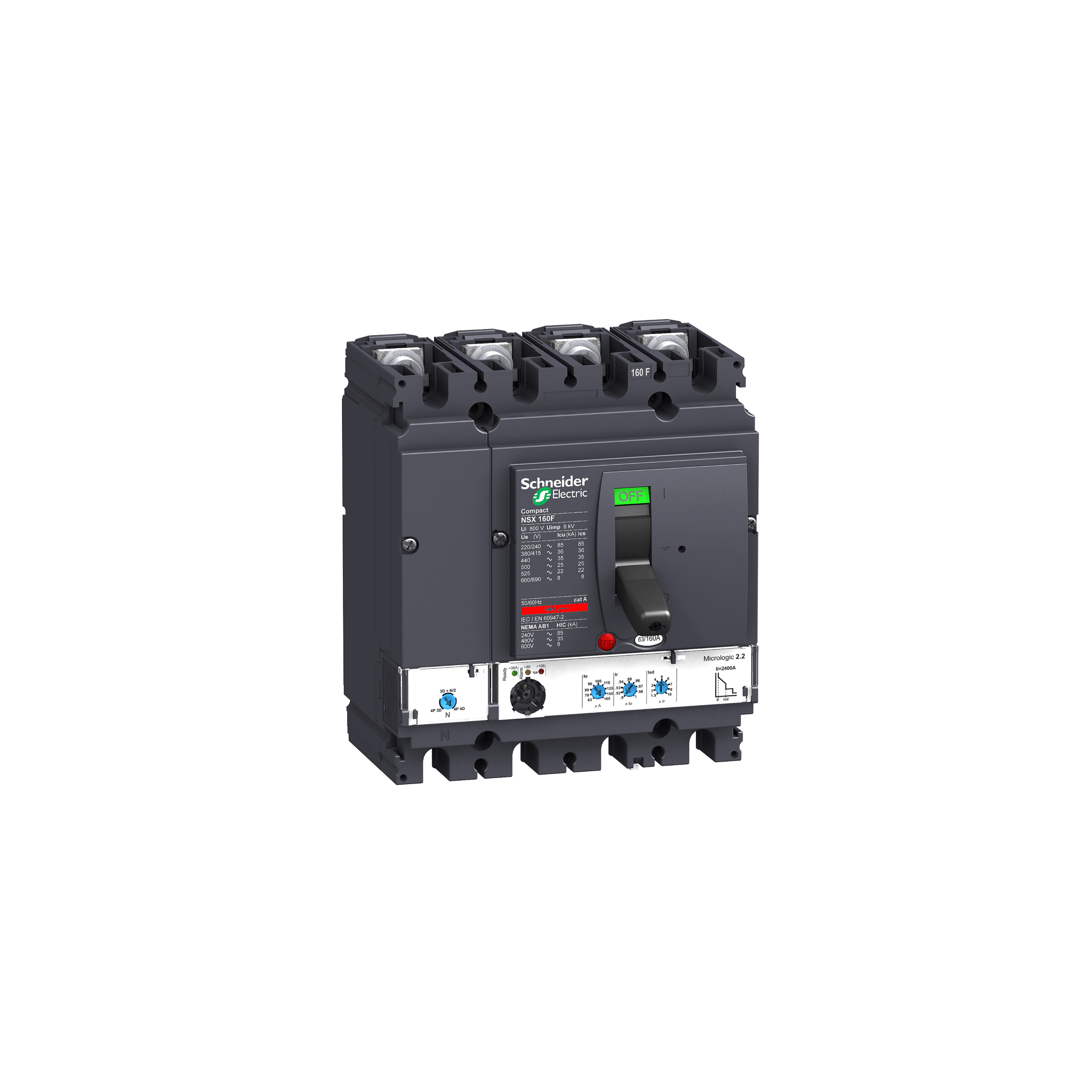

LV430780 – circuit breaker ComPact NSX160F, 36 kA at 415 VAC, MicroLogic 2.2 trip unit 160 A, 4 poles 4d Schneider Electric
Order code
R8 617.60
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced. Replaced by ComPacT NSX (new generation). See ComPacT NSX products · Schneider Electric substitution guide (opens in a new tab) Ask us to confirm remaining stock or to quote the replacement.
Listed in stock — availability is re-confirmed on every order
Circuit breaker ComPact NSX160F, 36 kA at 415 VAC, MicroLogic 2.2 trip unit 160 A, 4 poles 4d — Schneider Electric order code LV430780. Rated current 160 A; 4P 4d; breaking capacity 36 kA at 415 V AC; rated voltage 415 V AC.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV430780 — Circuit breaker ComPact NSX160F, 36 kA at 415 VAC, MicroLogic 2.2 trip unit 160 A, 4 poles 4d from the Schneider Electric Compact NSX <630 range.
This Compact NSX160F is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic Micrologic 2.2 trip unit, with 160A rating. Micrologic 2.2 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX160F is part of Schneider Electric EcoStruxure Power architecture.
Key specifications: rated current 160 A; 4P 4d; breaking capacity 36 kA at 415 V AC; rated voltage 415 V AC.
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Ordering information
- Order code:
LV430780 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480010002
- Supplied: each
- Weight: 2.432 kg
- ETIM class: EC000228
- Datasheet: manufacturer datasheet for LV430780
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 4P 4d |
|---|---|
| Rated current (Iu) | Filter products by 160 A |
| Rated voltage (Ue) | Filter products by 415 V AC |
| Operating Voltage | Filter products by 415 VAC |
| Max Break Capacity | Filter products by 36 kA at 415 V AC |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LV430780 |
| Iternational GTIN | Filter products by 3606480010002 |
| Mount Type | Filter products by Plug-in |
