Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

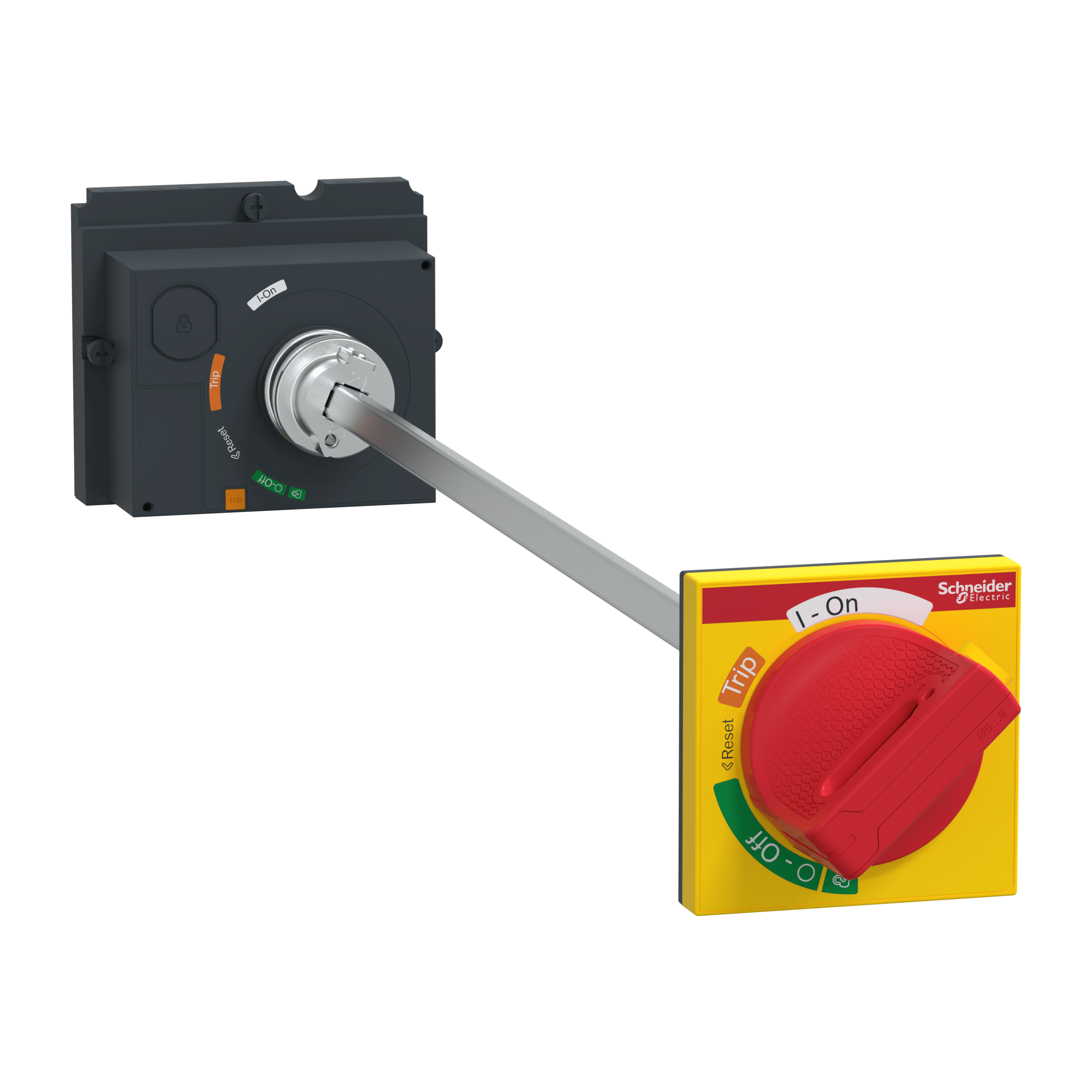

LV429340T – extended rotary handle, ComPacT NSX 100/160/250, red handle on yellow front, shaft length 185 to 600 mm, IP55 Schneider Electric
Order code
Original price was: R2 500.00.R1 700.00Current price is: R1 700.00.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Extended rotary handle, ComPacT NSX 100/160/250, red handle on yellow front, shaft length 185 to 600 mm, IP55 — Schneider Electric order code LV429340T. IP55.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV429340T — Extended rotary handle, ComPacT NSX 100/160/250, red handle on yellow front, shaft length 185 to 600 mm, IP55, a moulded case circuit breaker from the Schneider Electric ComPacT NSX (2021) range.
It is an extended rotary handle for ComPacT NSX 100/160/250 and PowerPact Multistandard H/J frames devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Key specifications: IP55.
Ordering information
- Order code:
LV429340T - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606482003910
- Supplied: each
- Weight: 0.706 kg
- ETIM class: EC000230
- Datasheet: manufacturer datasheet for LV429340T
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Environment & protection
| Degree of protection (IP) | Filter products by IP55 |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV429340T |
| Iternational GTIN | Filter products by 3606482003910 |
