Schneider ElectricElectronic Motor Protection

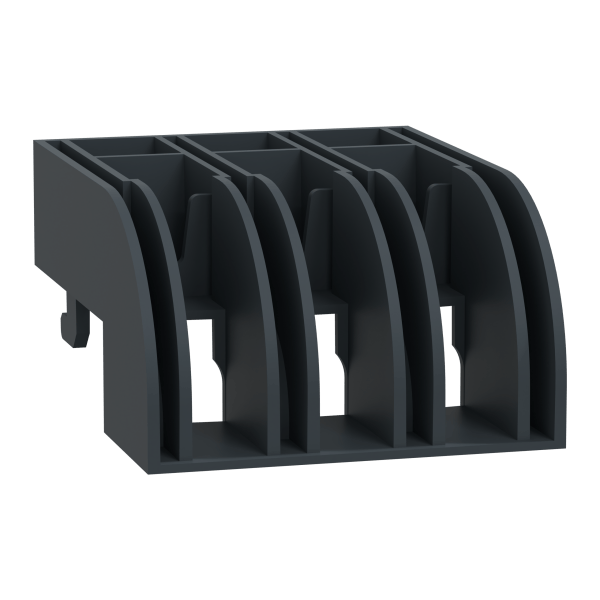

LU9SP0 – Phase separator LU9 | Schneider Electric
Order code
List R296.35 Your price R201.52
Per unit · volume pricing available on request
excl. VAT R231.75 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Phase separator LU9 — Schneider Electric order code LU9SP0. Rated voltage 690 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LU9SP0 — Phase separator LU9, an electronic motor protection from the Schneider Electric TeSys U range. Listed under Electronic Motor Protection on the Schneider Electric catalogue at RMS-SE.Africa.
About LU9SP0
TeSys U phase barrier for use with power bases LUB12, LUB32, LUB38, LUB120, LUB320, LUB380 or a limiter block LUALB1. It ensures a complementary electrical insulation between phases. Compulsory for use with a 690V AC network and with a 440 V AC network when assembling a UL508 type E compliant motor starter (Self Protected Starter). Green Premium compliant (RoHS/REACh).
LU9SP0 key specifications
Key specifications: rated voltage 690 V.
Ordering information for LU9SP0
- Order code:
LU9SP0 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys U
- GTIN / EAN: 3389110271515
- Supplied: each
- Weight: 0.027 kg
- ETIM class: EC002035
- Datasheet: manufacturer datasheet for LU9SP0
About the TeSys U range
TeSys U is a Schneider Electric range with 129 references listed on RMS-SE.Africa, from 1 A to 38 A. Coil voltages in the range: 24 V DC, 24 V AC. It spans Electronic Motor Protection, Motor Protection Circuit Breakers, Contactors.
LU9SP0 — frequently asked questions
Where is the datasheet for LU9SP0?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LU9SP0 a genuine Schneider Electric product?
Yes. LU9SP0 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LU9SP0 – phase separator LU9 Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys U |
| GTIN / EAN | 3389110271515 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002035 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 690 V |
|---|---|
| Operating Voltage | Filter products by 690V |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | LU9SP0 |
| Iternational GTIN | 3389110271515 |
| Mount Type | Filter products by Plug-in |
